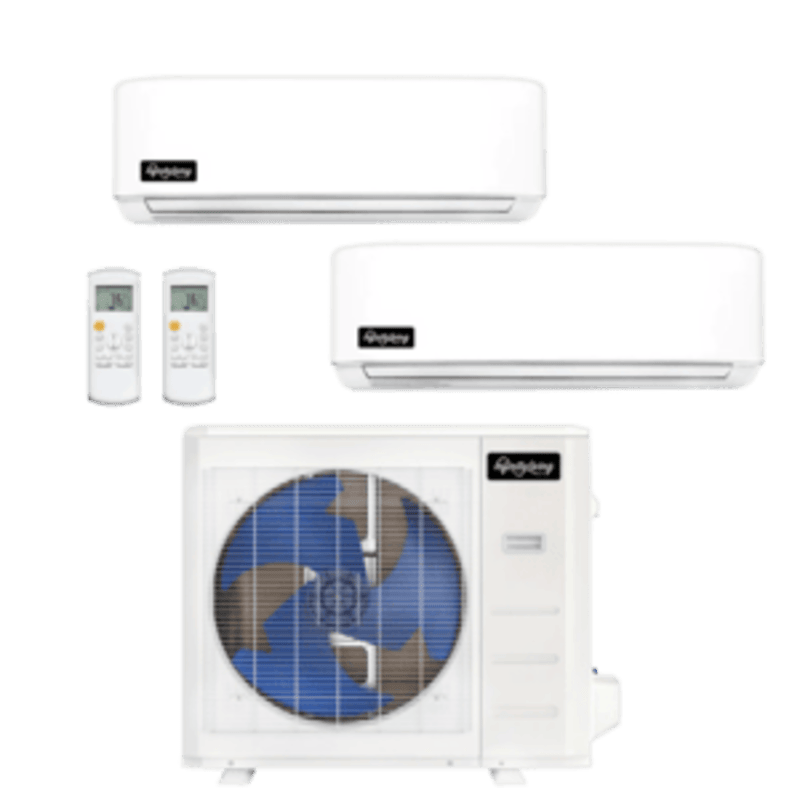

36,000 BTU Infinity Living DIYCOOL 23 SEER2 Dual Zone Mini Split Wall Mount Heat Pump System R454B | 230V - 18 + 18
Required Fields *
By
Infinity Living
In stock
Model
EZ-36Z-M4B / EZ-18W-MB-2
ID
210879
In Stock - 83 Ready to Ship
Was $5,822.80
Your Low Price $4,297.99
Free Shipping
Product Features
- Do-It-Yourself Installation
- SEER2 Rating 23
- 36,000 BTU
- Perfect for two rooms up to 600-1,000 sqft
- R454B Refrigerant
- days
- Hours
- Minutes
- Seconds
EZ-36Z-M4B / EZ-18W-MB / EZ-18W-MB 36,000 BTU Infinity Living DIYCOOL Multi Zone Mini Split Heat Pump System R454B | 230V – 18 + 18
The EZ-36Z-M4B / EZ-18W-MB 36,000 BTU Infinity Living DIYCOOL Multi Zone Mini Split Heat Pump System offers versatile and efficient temperature control across two zones. Engineered with DIYCOOL technology, this system is designed for easy setup and high performance, ideal for managing varying climate needs in multiple spaces.
System Overview
- Full SKU: EZ-36Z-M4B / EZ-18W-MB / EZ-18W-MB
- Total Capacity: 36,000 BTU
- Voltage: 208/230 V, 60 Hz, single-phase
- Zones Supported: Two indoor units (18 + 18 BTU configuration)
- Refrigerant: R454B with 2.97 kg (104.75 oz) charge
- Compressor Type: Rotary (Model KTF310D43UMT)
- Outdoor Air Flow: 2,148.4 CFM
- Noise Level: 64 dBA
Cooling Performance
- SEER2: 23.0
- EER2: 12.0
- Rated Cooling Capacity: 34,000 BTU/hr (range: 9,000 – 40,000 BTU/hr)
- Max Piping Length (all rooms): 221.4 ft / 67.5 m
- Single Indoor Max Piping Length: 73.8 ft / 22.5 m
- Operating Range: -13 – 122 °F (-25 – 50 °C)
Heating Performance
- HSPF2-4: 9.9
- COP: 3.15
- Rated Heating Capacity @ 5 °F: 25,200 BTU/hr (COP 2.0); Max Capacity: 25,000 BTU/hr
- Heating Capacity @ 17 °F: 24,000 BTU/hr (COP 2.4)
- Max Height Difference (IDU to ODU): 32.8 ft / 10 m
- Standard Operating Range (Heating): -13 – 75 °F (-25 – 24 °C)
Refrigerant Piping & Physical Specs
- Liquid Line Size: 5 × 6.35 mm (5 × 1/4 in)
- Gas Line Size: 4 × 9.52 mm + 1 × 12.7 mm (4 × 3/8 in + 1 × 1/2 in)
- Additional Charge: 0.16 oz/ft (15 g/m)
- Dimensions (W × D × H): 37.24 × 16.14 × 31.89 in (946 × 410 × 810 mm)
- Weight (Net/Gross): 169.75 / 181.88 lbs (77.0 / 82.5 kg)
This multi-zone unit combines quiet, efficient performance with flexible installation and operation, providing robust climate control tailored to your home’s needs. These bundles require the purchase of a Pre-Charged Line Set, these are not included.
36,000 BTU Infinity Living DIYCOOL Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V
36,000 BTU Infinity Living DIYCOOL 23 SEER2 Multi Zone Mini Split Heat Pump Condenser - R454B | 230V
Coming in as one of the first brands to offer a multi zone DIY mini split, Infinity Living offers the EZ-36Z-M4B condenser for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with Infinity Living’s EZ-36Z-M4B.
Key Features
- EZ Connect Installation: Pre-charged with R-454B refrigerant and compatible with EZ Connect line sets, allowing for fast, tool-free installation without the need for a licensed HVAC technician.
- 5-Zone Capacity: Supports up to five indoor units with varied BTU ratings for personalized room-by-room temperature control.
- Smart Technology: Works with your favorite smart devices for remote monitoring and control.
- Energy Efficiency: High SEER2 and HSPF2 ratings provide year-round comfort while reducing utility costs.
Performance Specifications
- Power Supply: 208/230V, 60Hz, 1Ph
- Cooling Capacity: 34,000 BTU
- Heating Capacity: 36,000 BTU
- SEER2: 23
- HSPF2-4: 9.9
Warranty
Infinity Living offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.
When paired with Infinity Living's easy-install pre-charged line sets and air handlers, the EZ-36Z-M4B is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.
18,000 BTU Infinity Living DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V
Enhance your space with Infinity Living’s 18k BTU R454B wall-mounted air handler, designed for rooms up to 1,000 square feet. This versatile unit is compatible with both Infinity Living Platinum Single Zone systems and Infinity Living Multi Zone systems, offering flexibility for various setups. Equipped with Infinity Living's innovative DIYCool technology, this air handler allows for a seamless, straightforward installation, perfect for DIY enthusiasts. Additionally, it’s compatible with Wi-Fi through our app, allowing you to control your climate settings conveniently from your smartphone. Whether for heating or cooling, this powerful unit consistently delivers comfort tailored to your needs.
Infinity Living 25' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers - R454B
The Infinity Living EZ Connect DIYCool Line sets are designed for effortless installation and outstanding performance in your HVAC system. Specifically tailored for the EZ Connect series, this line set comes packaged with a reinforced control wire, ensuring a secure and durable connection. The DIYCool technology simplifies the installation process, allowing you to set up your system without the need for specialized tools or professional assistance. Engineered to withstand wear and environmental factors, this line set offers long-lasting reliability, making it a perfect fit for your Infinity Living setup.
Infinity Living 35' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers – R454B
The Infinity Living EZ Connect DIYCool Line sets are designed for effortless installation and outstanding performance in your HVAC system. Specifically tailored for the EZ Connect series, this line set comes packaged with a reinforced control wire, ensuring a secure and durable connection. The DIYCool technology simplifies the installation process, allowing you to set up your system without the need for specialized tools or professional assistance. Engineered to withstand wear and environmental factors, this line set offers long-lasting reliability, making it a perfect fit for your Infinity Living setup.
Infinity Living 50' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers – R454B
The Infinity Living EZ Connect DIYCool Line sets are designed for effortless installation and outstanding performance in your HVAC system. Specifically tailored for the EZ Connect series, this line set comes packaged with a reinforced control wire, ensuring a secure and durable connection. The DIYCool technology simplifies the installation process, allowing you to set up your system without the need for specialized tools or professional assistance. Engineered to withstand wear and environmental factors, this line set offers long-lasting reliability, making it a perfect fit for your Infinity Living setup.
Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 1/2" x 6' Electrical Whip – SKU: 84136
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
| 36,000 BTU Infinity Living DIYCOOL Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V | |
|---|---|
| SKU | EZ-36Z-M4B |
| Weight (in lbs) | 169.240000 |
| Brand/Manufacturer | Infinity Living |
| HSPF2 | 9.9 |
| Cooling BTU | 34,000 |
| Heating BTU | 36,000 |
| Decibel Level (dBA) | 64 |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 23 |
| Compressor Type | Rotary |
| Liquid Line | 1/4 |
| Liquid Valve Size | 1/4 |
| Suction Valve Size | 3/8 |
| Electrical | 208/230 |
| Max Breaker Size | 35 |
| Min. Breaker Size | 30.5 |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Zone Compatibility | Multi Zone |
| Height | 31.89 |
| Width | 37.24 |
| Depth | 16.14 |
| Warranty | 7 Year Compressor / 5 Year Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 18,000 BTU Infinity Living DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| SKU | EZ-18W-MB |
| Weight (in lbs) | 35.490000 |
| Brand/Manufacturer | Infinity Living |
| Product Features | Quick Connect, WiFi |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Decibel Level (dBA) | Indoor Noise Level: 19 - 54.5 |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230 V, 1 Phase, 60 Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone, Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 5 Years Parts and 7 Years Compressor Limited Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Infinity Living 25' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers - R454B | |
| SKU | EZ-25-1412-MB |
| Weight (in lbs) | 30.000000 |
| Brand/Manufacturer | Infinity Living |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Infinity Living 35' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers – R454B | |
| SKU | EZ-35-1412-MB |
| Weight (in lbs) | 20.000000 |
| Brand/Manufacturer | Infinity Living |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Infinity Living 50' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers – R454B | |
| SKU | EZ-50-1412-MB |
| Weight (in lbs) | 20.000000 |
| Brand/Manufacturer | Infinity Living |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Wall Mount Bracket for Mini Split Systems | |
| SKU | HW-600 |
| Weight (in lbs) | 9.200000 |
| Brand/Manufacturer | Online Supply |
| Length | 17" |
| Height | 20" |
| Width | 6" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| SKU | MSK001 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
