Mitsubishi 36,000 BTU M-Series Multi Zone Mini Split Heat Pump Condenser R454B | 230V

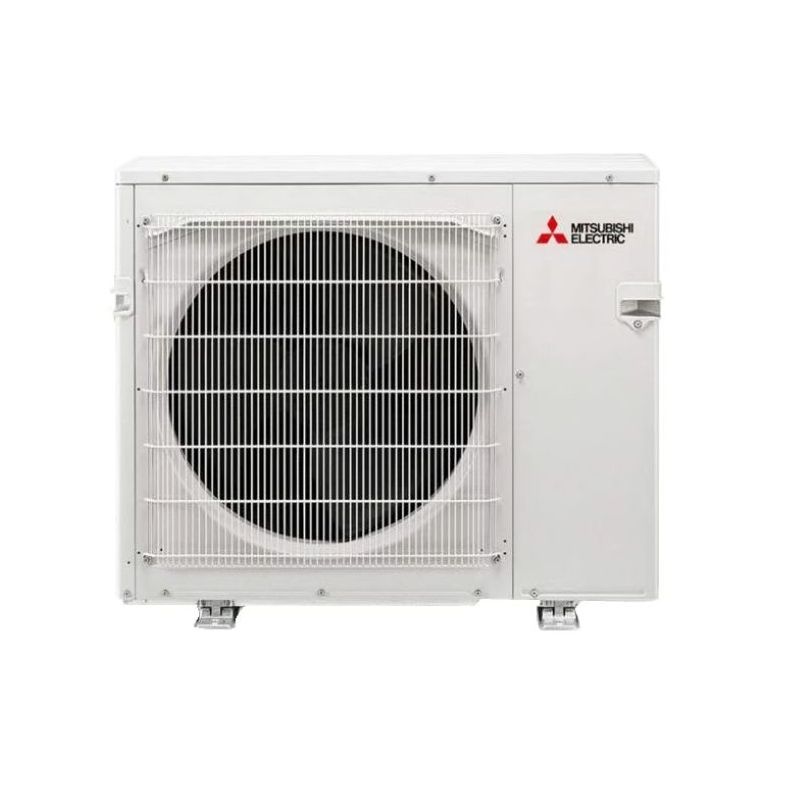

MXZ-5D36NL - Multi-Zone Heat Pump Outdoor Unit

The MXZ-5D36NL is a high-performance outdoor heat pump unit designed for multi-zone applications, capable of connecting up to five indoor units. This system offers efficient heating and cooling solutions for residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 52 dB(A), minimizing noise disturbances in your environment.
• Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
• Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
• Advanced Protections: Includes compressor overcurrent detection, fan motor overheating/voltage protection, compressor thermal protection, and high-pressure protection for enhanced safety and reliability.
• Seacoast Protection: Rated for 2,000 hours spraying time per ASTM B117 Standard, making it suitable for coastal areas.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 36,400 BTU/h
  • Rated Capacity: 35,400 BTU/h (Non-Ducted), 33,400 BTU/h (Mixed), 31,400 BTU/h (Ducted)
  • Minimum Capacity: 12,600 BTU/h (Non-Ducted), 12,600 BTU/h (Mixed), 12,600 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum Capacity: 43,000 BTU/h
  • Rated Capacity: 36,000 BTU/h (Non-Ducted), 35,200 BTU/h (Mixed), 34,400 BTU/h (Ducted)
  • Minimum Capacity: 12,800 BTU/h (Non-Ducted), 12,800 BTU/h (Mixed), 12,800 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Rated Capacity: 23,000 BTU/h (Non-Ducted), 22,400 BTU/h (Mixed), 22,000 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum Capacity: 24,000 BTU/h
• Efficiency Ratings:
  • SEER2: 19.20 (Non-Ducted), 17.70 (Mixed), 16.20 (Ducted)
  • EER2: 12 (Non-Ducted), 10.40 (Mixed), 8.80 (Ducted)
  • HSPF2 (IV): 9.30 (Non-Ducted), 8.80 (Mixed), 8.30 (Ducted)
  • COP at 47°F: 3.5 (Non-Ducted), 3.3 (Mixed), 3.1 (Ducted)
  • COP at 17°F (Maximum Capacity): 2.26 (Non-Ducted), 2.08 (Mixed), 1.94 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.10 (Non-Ducted), 1.72 (Mixed), 1.34 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
  • Voltage (Indoor to Outdoor, S2-S3): 24 V DC
  • Recommended Wire Size (Indoor to Outdoor): AWG 14
  • Short-circuit Current Rating (SCCR): 5 kA
  • Minimum Circuit Ampacity (MCA): 29 A
  • Maximum Overcurrent Protection (MOCP): 49 A
• Fan Motor:
  • Full Load Amperage: 1.74 A
  • Output: 88 W
  • Airflow Rate: 2,306 CFM (Cooling), 2,306 CFM (Heating)
• Unit Dimensions:
  • Width: 37-13/32 inches
  • Depth: 13 inches
  • Height: 31-11/32 inches
  • Weight: 152 lbs

The MXZ-5D36NL is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.
