Mitsubishi 36,000 BTU SEZ-AD-Series Single Zone Mini Split Heat Pump Condenser R454B | 230V

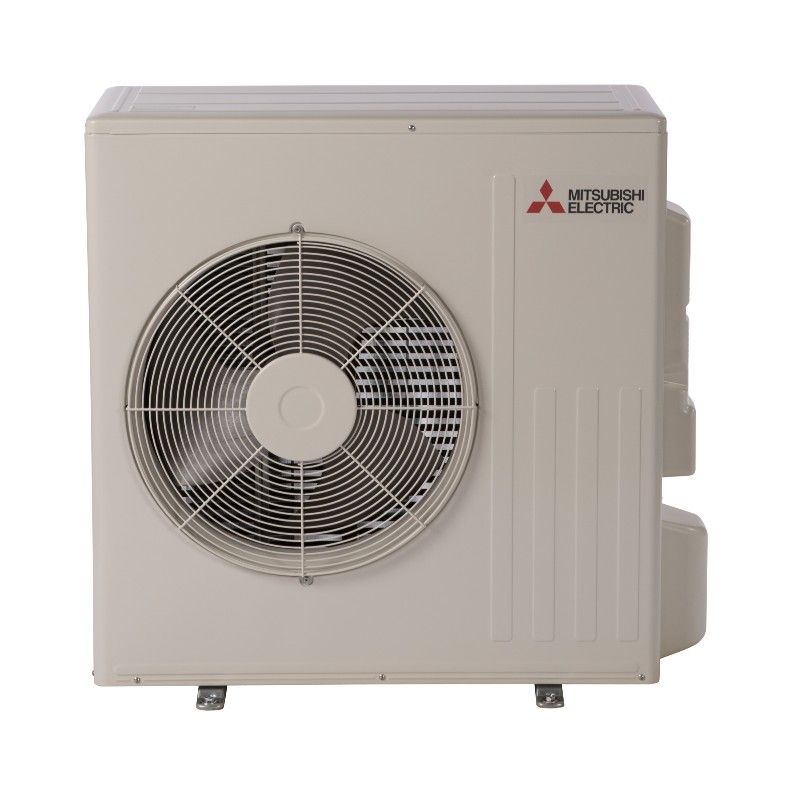

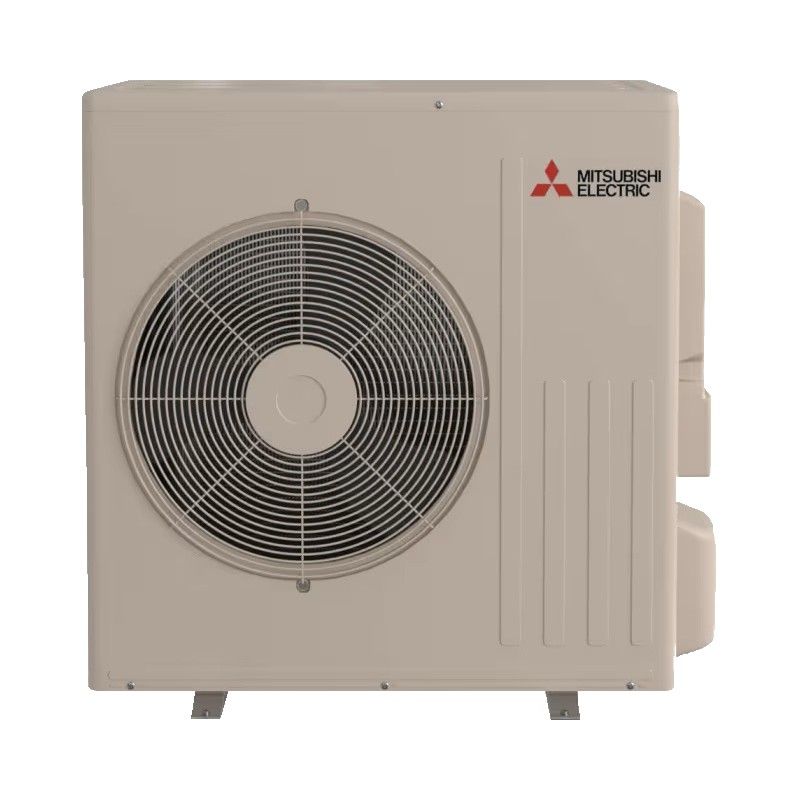

SUZ-AA36NL - 33,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA36NL is a high-performance outdoor unit designed to provide efficient cooling and heating for both residential and commercial applications. Featuring advanced technologies like Pulse Amplitude Modulation (PAM) and an inverter-driven compressor, this unit offers reliable operation and energy-efficient performance, even in extreme weather conditions.

Outdoor Unit Features (SUZ-AA36NL):

• Blue Fin Coating: Anti-corrosion coating on heat exchanger fins to protect against salt, sulfur, and other airborne contaminants, making it suitable for coastal and industrial environments.
• Inverter-Driven Compressor: Ensures precise capacity control for better temperature regulation and energy efficiency.
• Pulse Amplitude Modulation Technology: Enhances energy efficiency by optimizing compressor power, leading to reduced energy consumption.
• Quiet Operation: Operates quietly with noise levels similar to a normal conversation, ensuring minimal disruption.
• Hot-Start Technology: Prevents cold air blasts during start-up by ensuring the fan activates only once the heat exchanger is warm.
• High-Performance Grooved Piping: Improves heat exchange efficiency for better overall performance.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, with automatic restart functionality in case of power outage.
• Joint Lap DC Motor: Offers high efficiency and reliability for long-lasting operation.

Specifications:

• Cooling Capacity: 33,000 BTU/h rated at 95°F outdoor temperature with a maximum capacity of 33,000 BTU/h and a minimum of 9,900 BTU/h.
• Heating Capacity: 36,000 BTU/h at 47°F, 34,000 BTU/h at 17°F, 21,000 BTU/h at 5°F, and 15,300 BTU/h at -4°F outdoor temperature.
• Power Input: 3,070W rated power input during cooling, and 2,880W rated power input during heating at 47°F.
• Energy Efficiency: SEER2 rating of 19.4, EER2 of 10.7, and HSPF2 of 9.3 for superior energy performance.
• Refrigerant: Uses R454B refrigerant, pre-charged with 3 lbs of refrigerant, and a maximum piping length of 65 feet.
• Sound Pressure Level: 55 dB(A) during both cooling and heating operation for a quiet environment.
• Unit Dimensions: 33-1/16 x 13 x 34-11/16 inches, with a unit weight of 117 lbs.

The SUZ-AA36NL is designed to provide efficient, reliable heating and cooling for a wide range of applications, offering comfort even in challenging climates. With advanced technologies like Hyper-Heating INVERTER® (H2i®) and Pulse Amplitude Modulation, it ensures optimal performance while reducing energy consumption.
