0% Financing for 24 Months* Available - Buy Now and Pay later!

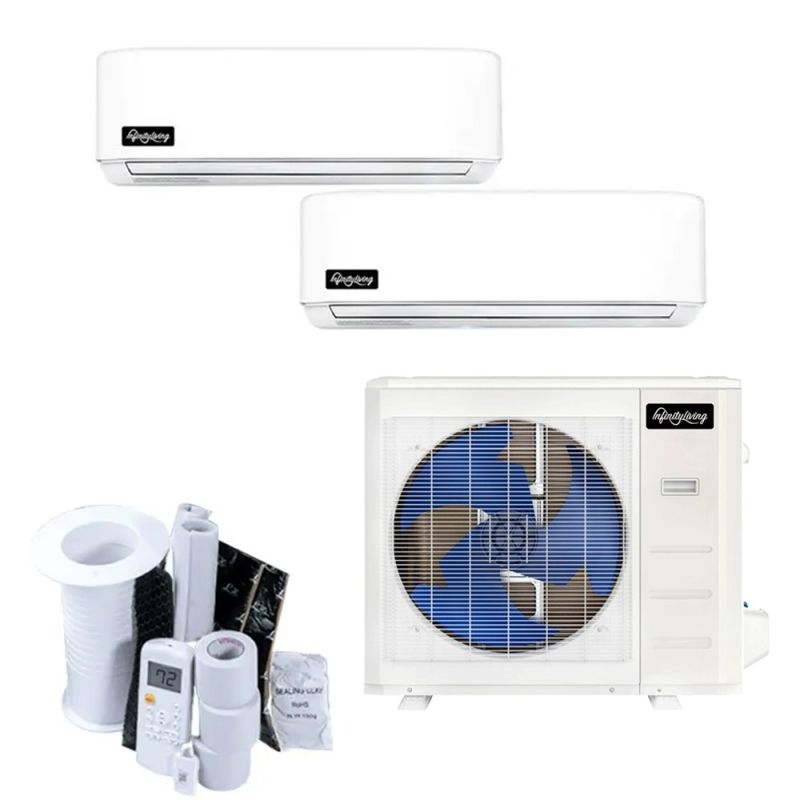

Infinity Living EZ Connect 36,000 BTU 21.5 SEER2 Dual Zone Wall Mounted DIYCOOL Heat Pump System w/ 18+18

Required Fields *

By

Infinity Living

In stock

Model

EZ-36Z-M4 / EZ-18W-M-2

ID

178052

Your Low Price $431.98
Free Shipping
  • Do-It-Yourself Installation
  • Heating & Cooling
  • Ductless Solution
  • Perfect for two 600-1,000 sq ft Rooms
  • Dual Zone/Room Compatible
  • Wi-Fi Capabilities & Energy Star Certified
Customize Infinity Living EZ Connect 36,000 BTU 21.5 SEER2 Dual Zone Wall Mounted DIYCOOL Heat Pump System w/ 18+18

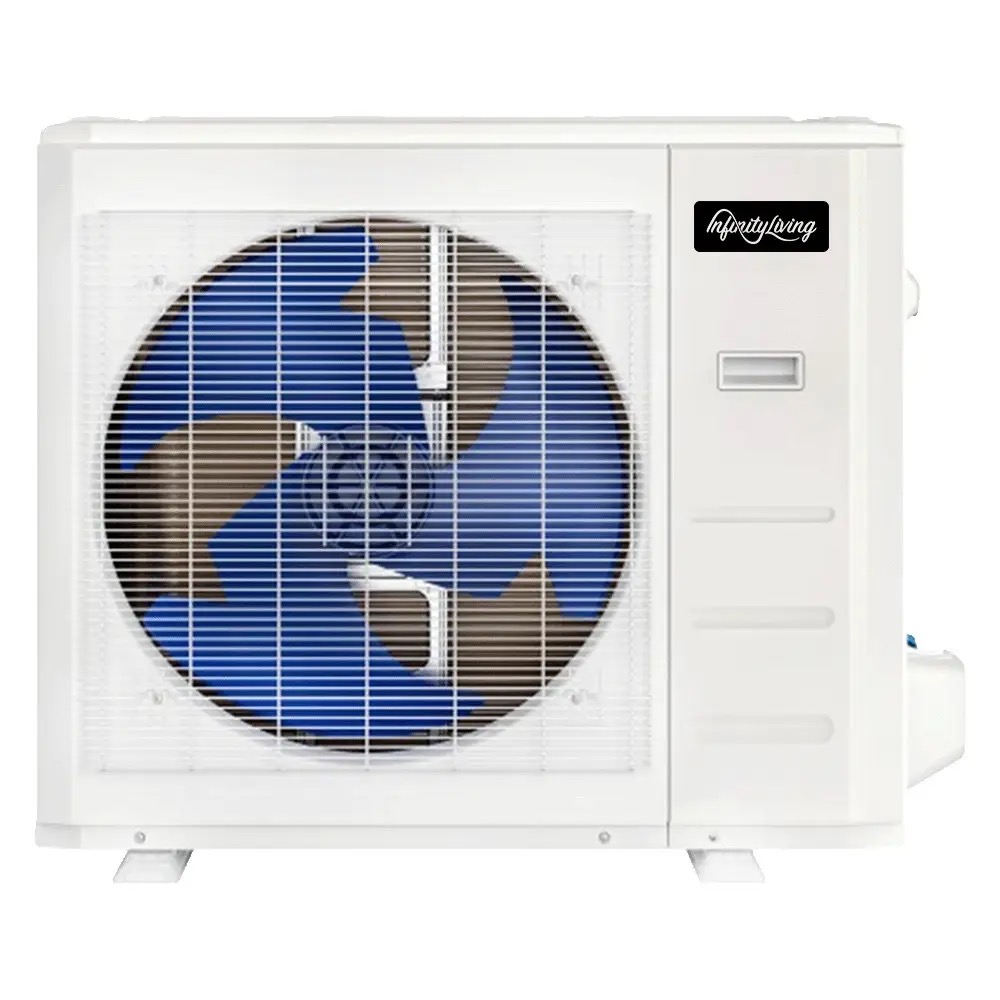

36,000 BTU Stealth Multi Zone Condenser-R410A
36,000 BTU Stealth Multi Zone Condenser-R410A   + $2,756.94
18,000 BTU Stealth Single Zone Air Handler-R410A
18,000 BTU Stealth Single Zone Air Handler-R410A   + $215.99
18,000 BTU Stealth Single Zone Air Handler-R410A
18,000 BTU Stealth Single Zone Air Handler-R410A   + $215.99
Infinity Living 25' EZ Connect DIYCOOL Line Set for 9k, 12k, & 18k Air Handlers
Infinity Living 25' EZ Connect DIYCOOL Line Set for 9k, 12k, & 18k Air Handlers
Condenser Risers - 4" x 18" - 2 Pack
Infinity Living EZ Connect Dual Zone Wall Mounted DIYCOOL Heat Pump System w/WiFi - 36,000 BTU 21 18+18

$3,188.92

Infinity Living is THE whole house mini-split solution. Up to 2 zones, Infinity Living offers aesthetically pleasing wall mounted units. Enjoy keeping more money in your pocket every month with efficiency ratings up to 36 SEER and 10.5 HSPF. This 36,000 BTU condenser can support up to two zones simultaneously.

Configured for a space-saving footprint, Infinity Living outdoor units include advanced Inverter variable speed compressor technology. Infinoity Living ductless heating and cooling systems are a convenient, multi room solution for homes or offices that formerly relied on electric baseboard heaters in the winter and window air conditioning units in the summer. The digital controls give the unit a sleek and aesthetically pleasing appearance.

Infinity Living multi-zone systems can support two, three, four or five indoor units for extreme design flexibility. This package Includes: Infinity Living 36K BTU Multi-Zone Condenser, 18K BTU Wall Mounted Air Handlers, 18K BTU Wall Mounted Air Handlers, 2 Remotes.


Features:


  • 7-year compressor, 5-year parts and 1-year remote warranty when registered
  • High efficiency, 36 SEER
  • Self diagnostic featured, such as leak detect, included
  • Versatile multi-zone installation
  • Features include: sleep mode, auto swing and louver position memory
  • ENERGY STAR
  • Installation is a breeze with the step-by-step DIY instructions.

Installation kit and linesets are sold separately.

More Information
Infinity Living 36,000 BTU Multi-Zone Heat Pump Condenser
FeatureSpec
SKUEZ-36Z-M4
Weight185.000000
AHRI Certificate Number214810572
ManufacturerInfinity Living
Product FeaturesQuick Connect
HSPF8.8
HSPF26.8
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
Maximum CFM2147.06
Decibel Level (dBA)65
RefrigerantR410A
SEER221.5
Liquid Line1/4"
Suction Line3/8" 1/2"
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size45
Min. Breaker Size27
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Height31.89"
Width37.24"
Depth16.14"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Infinity Living 18,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced
FeatureSpec
SKUEZ-18W-M
Weight34.610000
ManufacturerInfinity Living
Product FeaturesQuick Connect, WiFi
Cooling BTU18,000 BTU
Heating BTU18,000 BTU
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230 V. 1 Phase 60 Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Height13.19"
Width42.52"
Depth8.90"
Warranty5 Years Parts and 7 Years Compressor Limited Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
FeatureSpec
SKUACB-30
Weight9.200000
ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Infinity Living 25' EZ Connect DIYCOOL Line Set for 9k, 12k, & 18k Air Handlers
FeatureSpec
SKUEZ-25-1412-M
Weight30.000000
ManufacturerInfinity Living
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical230 V. 1 Phase 60 Hz
Mini Split TypeWall Mounted
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Infinity Living 35’ EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers
FeatureSpec
SKUEZ-35-1412-M
Weight20.000000
ManufacturerInfinity Living
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical230 V. 1 Phase 60 Hz
Mini Split TypeWall Mounted
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Infinity Living 50’ EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers
FeatureSpec
SKUEZ-50-1412-M
Weight20.000000
ManufacturerInfinity Living
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical230 V. 1 Phase 60 Hz
Mini Split TypeWall Mounted
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
I understand that this system should only be used as replacement units due to EPA updates and may not be installed as a complete system.
FeatureSpec
SKU410-Compliance
I understand that this system cannot be returned.
FeatureSpec
SKU410-Compliance-Acceptance
