Today's Hours 8am - 11pm est4" Horizontal Unit Heater Vent Kit
Required Fields *
Call for Availability
By
Z-Flex
In stock
Model
THS-HUVK4
ID
84119
Was $799.05
Your Low Price $533.34
Unit heaters require category III stainless steel special gas venting in order to be vented outside. This simple kit includes a variety of venting options that will be enough for most users. This kit is intended for horizontal venting of a power vented unit heater that requires 4" venting. This can be used for Reznor UDAP30-125 power vented unit heaters.

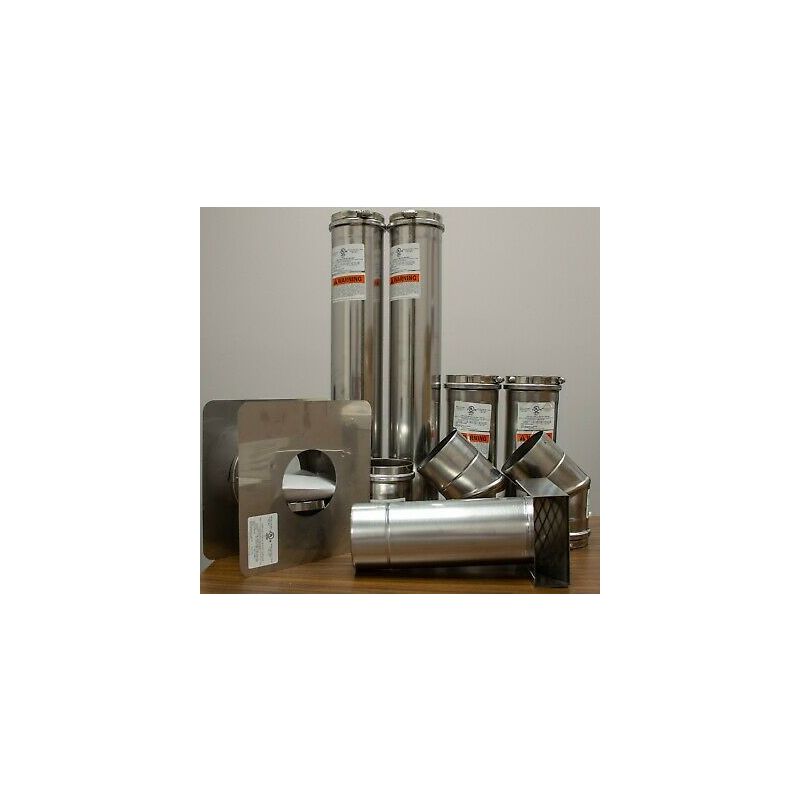

This kit includes:
- 2 - 4" Round 24" Vent Pipes (2SVEPWCF0402)
- 2 - 4" Round 12" Vent Pipes (2SVEPWCF0401)
- 2 - 4" 45° Elbows (2SVEEWCF0445)
- 1 - 4" Wall Thimble Adjustable from 4” to 7” Wall Thickness (2SVSWTF04)
- 1 - 4" Appliance Adapter (2SVSNA04.5)
- 1 - 4" Vent Termination Box (2SVSTB04)
This venting requires 3” clearance to combustibles.
Z-Vent Features:
- Gasketed connections
- No sealant required, no cure time, or no call backs
- Air tight seam, smooth finish, better fit
- Metallic special gas vent cut to length on site
- Highest pressure rating in the industry greater than five time the industry standard
Always check your local codes before installing any vented appliance.
4" x 45° Z-Flex Single Wall ElbowThe Z-Vent Single Wall Elbow with a silicon gasket and an integral gear clamp on the female end.
4" x 1 Ft. Z-Flex Single Wall Pipe
This Z-Vent Single Wall Pipe has a silicon gasket and integral gear clamp on the female end, the male end can be cut to size with a hacksaw.
4" x 2 Ft. Z-Flex Single Wall Pipe
This Z-Vent Single Wall Pipe has a silicon gasket and an integral gear clamp on the female end, the male end can be cut to size with a hacksaw.
- Air tight seam
- Gasketed connections
- No sealant required
- High pressure rating
4" Z-Vent Termination BoxZ-Vent 4" Vent Termination Box with 10" Sleeve Stainless Steel Venting. This termination box can be used as either an intake or an exhaust piece. It has a bird screen to keep animals out of your exhaust system.
Z-Flex 4" Universal Appliance Adapter
The Z-Vent 4" Universal Appliance Adapter is a gas vent pipe designed to fit flue outlets from various brands such as Laars, Bosch, Nortec, Takagi, Paloma, Rheem, Modine, Rinnai, and Reznor, and it is available in sizes up to 24 inches in diameter. Constructed from durable AL29-4C material, this factory-engineered vent pipe can handle both positive and negative pressure applications, having been tested and certified to UL1738/S636 standards, which makes it suitable for Category II, III, and IV venting systems. Additionally, Z-Vent comes with flashing that is perfect for flat roof or chimney installations, ensuring a reliable and safe venting solution for your gas appliances.
4" Z-Flex Adjustable Wall Thimble4" Z-Vent Adjustable Wall Thimble suitable for positive and negative pressure. This thimble is adjustable from 4" to 7" and has dimensions of 10"x10"
