Today's Hours 8am - 11pm est4 Inch Horizontal Hot Dawg Vent Kit
Required Fields *
Call for Availability
By
Z-Flex
In stock
Model
2svepwcf0401 / 2svepwcf0402 / 2svsahd04 / 2svsttf04 / 2svwt04
ID
158896
Was $440.40
Your Low Price $272.82
This kit contains the components you need all in one box. This simple kit includes a variety of 4-inch Horizontal Vent Kit for Modine Hot Dawg Models.
This kit includes:
- (1) 4" x 1 Ft. Z-Vent Single Wall Pipe (2svepwcf0401)
- (1) 4" x 2 Ft. Z-Vent Single Wall Pipe (2svepwcf0402)
- (1) 4 Inch Z-Vent Modine Hot Dawg Adapter (2svsahd04)
- (1) 4 Inch Z-Vent Horizontal Termination Tee (2svsttf04)
- (1) 4 Inch Z-Vent Adjustable Wall Thimble (2svwt04)
Z-Vent Features:
- Gasketed connections
- No sealant required, no cure time, or no call backs
- Air tight seam, smooth finish, better fit
- Metallic special gas vent cut to length on site
- Highest pressure rating in the industry greater than five time the industry standard
4" x 1 Ft. Z-Flex Single Wall Pipe
This Z-Vent Single Wall Pipe has a silicon gasket and integral gear clamp on the female end, the male end can be cut to size with a hacksaw.
4" x 2 Ft. Z-Flex Single Wall Pipe
This Z-Vent Single Wall Pipe has a silicon gasket and an integral gear clamp on the female end, the male end can be cut to size with a hacksaw.
- Air tight seam
- Gasketed connections
- No sealant required
- High pressure rating

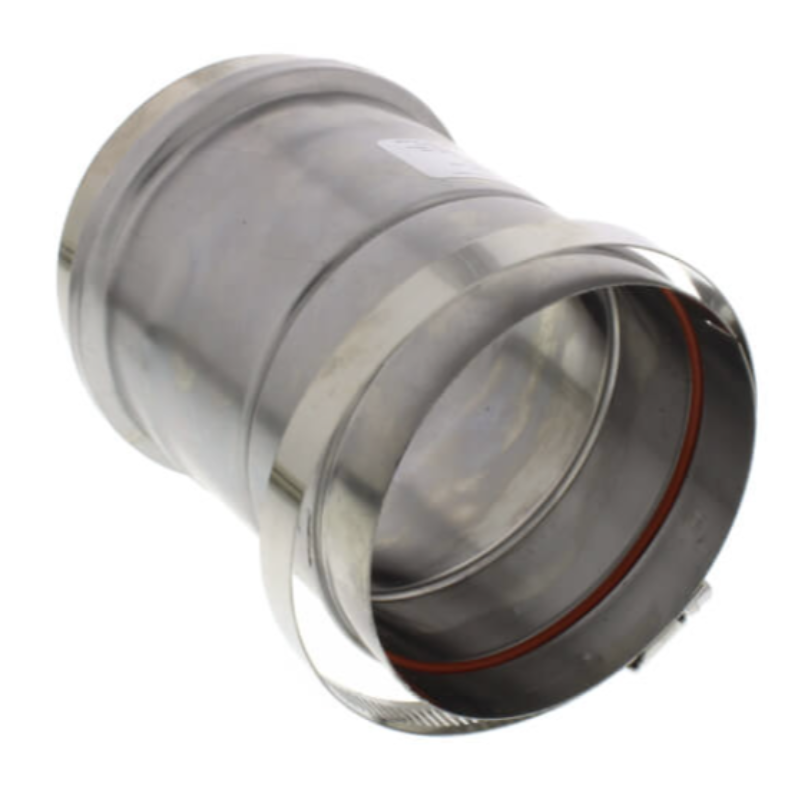

4-Inch Z-Flex Modine Hot Dawg Adapter
The Z-Vent 2SVSAHD04 is a 4-Inch Modine Hot Dawg Adapter. It is suitable for both positive and negative pressure applications.
- Material: Inner and outer wall constructed from AL29-4C stainless steel
- Diameter: 4 inches
- Pressure rating: Positive and negative
- Application: Can be used with flat roof or chimney applications
- Simple gasketed connection - no sealant needed
- Highest pressure rating in the industry
- Compatible with all types of Z-Flex Z-Vent
- Factory-built and engineered for durability and performance
4 Inch Z-Flex Horizontal Termination Tee
The Z-Vent 2svsttf04 is a 4-inch horizontal termination tee fitting made from stainless steel. This termination tee can be used as either an intake or an exhaust piece. It has a bird screen to keep animals out of your exhaust system.
- Material: Stainless steel
- Size: 4 inches
- Tee openings can be positioned up and down or left to right.
4" Z-Flex Adjustable Wall Thimble4" Z-Vent Adjustable Wall Thimble suitable for positive and negative pressure. This thimble is adjustable from 4" to 7" and has dimensions of 10"x10"
