In stock
AHRI Number:210279123
Save up to $5,500 off Local HVAC Prices

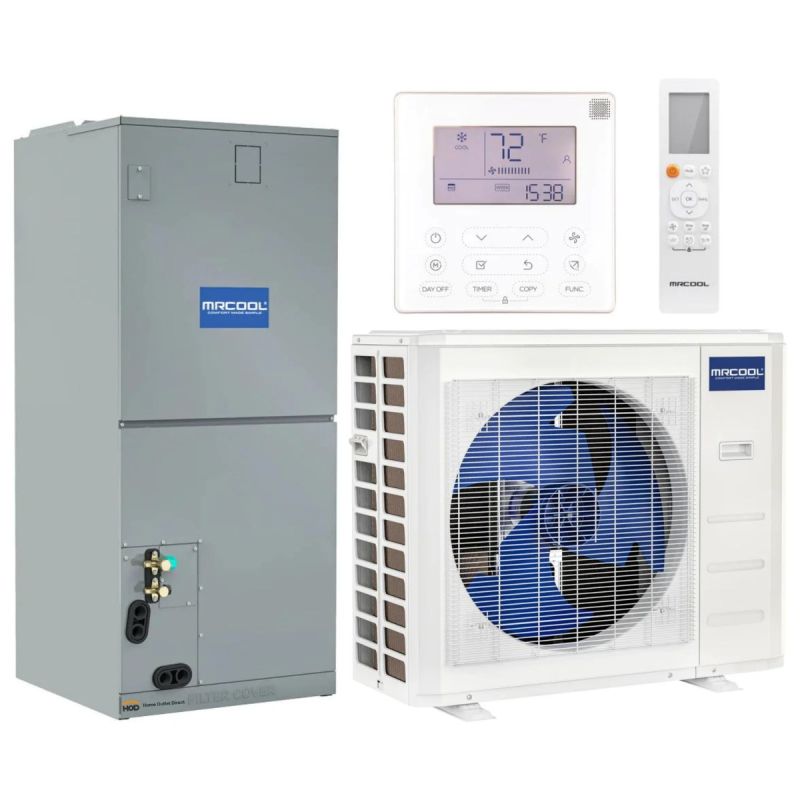

The 4 Ton 15.6 SEER MRCOOL Central Ducted Hyper Heat Split System (CENTRAL-48-HP-MUAH230A00 / CENTRAL-48-HP-C-230A00) is a powerful and efficient solution for cooling and heating larger spaces. With a cooling capacity of 4 tons and a SEER rating of 15.6, it provides reliable and energy-efficient performance. The hyper heat technology ensures consistent heating even in extreme cold temperatures. This split system includes the air handler (CENTRAL-48-HP-MUAH230A00) and the heat pump condenser (CENTRAL-48-HP-C-230A00), working together to deliver conditioned air throughout your ducted system. Upgrade to the CENTRAL-48-HP-MUAH230A00 / CENTRAL-48-HP-C-230A00 for optimal comfort and energy savings in your home or commercial environment.
MRCOOL Hyper Heat 4 Ton 15.6 SEER Central Ducted Heat Pump Split System | |
---|---|
SKU | CENTRAL-48-HP-230A00 |
Refrigerant Charge | 25' |
AHRI Certificate Number | 210279123 |
Manufacturer | MRCOOL |
Product Features | High Efficiency, Inverter, Low Ambient Heating, Quick Connect, Variable Speed Condenser |
HSPF | 9.4 |
HSPF2 | 7.7 |
Cooling BTU | 47000 |
Heating BTU | 50000 |
Maximum CFM | 4411.76 |
Decibel Level (dBA) | 50 |
SEER2 | 15.6 |
EER | 8.2 |
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 50 |
Min. Breaker Size | 42 |
Tonnage Bundle | 4 Ton |
BTU/Tonnage | 48,000 BTU/4 Ton |
Height | Indoor 49.02 | Outdoor: 52.48 |
Width | Indoor 21.02 | Outdoor: 37.48 |
Depth | Indoor 21.02 | Outdoor: 16.34 |
Warranty | 10-year Warranty on Parts, Labor, and Compressor |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
MRCOOL 48K BTU 15.6 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-48-HP-C-230A00 | |
SKU | CENTRAL-48-HP-C-230A00 |
Weight | 248.900000 |
Manufacturer | MRCOOL |
Product Features | High Efficiency, Low Ambient Heating, Quick Connect, Variable Speed Condenser |
HSPF2 | 9.4 |
Cooling BTU | 47,000 BTU |
Heating BTU | 50,000 BTU |
Maximum CFM | 4411.76 |
Refrigerant | R410A |
SEER2 | 15.6 |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230 V. 1 Phase 60 Hz |
Max Breaker Size | 50 |
BTU/Tonnage | 48,000 BTU/4 Ton |
Height | 57.48" |
Width | 43.11" |
Depth | 19.49" |
Warranty | 10-year Warranty on Parts, Labor, and Compressor |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
MRCOOL 48K BTU 15.6 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-48-HP-MUAH230A00 | |
SKU | CENTRAL-48-HP-MUAH230A00 |
Weight | 157.000000 |
Manufacturer | MRCOOL |
Product Features | Quick Connect |
Cooling BTU | 47,000 BTU |
Heating BTU | 50,000 BTU |
Refrigerant | R410A |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230 V. 1 Phase 60 Hz |
Max Breaker Size | 15 |
Height | 52.56" |
Width | 26.57" |
Depth | 24.41" |
Warranty | 10-year Warranty on Parts, Labor, and Compressor |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 feet | |
SKU | NV15-3834 |
Refrigerant Charge | 1.94 oz |
Weight | 10.000000 |
Manufacturer | MRCOOL |
Refrigerant | R410A |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Valve Type | Quick-Connect |
Length | 15' |
Safety Information | PROPOSITION 65 WARNING |
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 25 feet | |
SKU | NV25-3834 |
Refrigerant Charge | 3.17 oz |
Weight | 15.000000 |
Manufacturer | MRCOOL |
Refrigerant | R410A |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Valve Type | Quick-Connect |
Length | 25' |
Safety Information | PROPOSITION 65 WARNING |
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 35 feet | |
SKU | NV35-3834 |
Refrigerant Charge | 9.77 oz |
Weight | 20.000000 |
Manufacturer | MRCOOL |
Refrigerant | R410A |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Valve Type | Quick-Connect |
Length | 35' |
Safety Information | PROPOSITION 65 WARNING |
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 50 feet | |
SKU | NV50-3834 |
Refrigerant Charge | 19.44 oz |
Weight | 54.000000 |
Manufacturer | MRCOOL |
Refrigerant | R410A |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Valve Type | Quick-Connect |
Length | 50' |
Safety Information | PROPOSITION 65 WARNING |
Installation Kit for Condensers | |
SKU | MSK001 |
Weight | 15.000000 |
Manufacturer | Online Supply |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
5 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers | |
SKU | CENTRALHK05 |
Weight | 11.000000 |
Manufacturer | MRCOOL |
Electric Heat | 5 Kilowatts |
Electrical | 208/230v 1 Phase 60 Hz |
Max Breaker Size | 25/30 |
Min. Breaker Size | 23/27 |
Height | 10.24" |
Width | 24.02" |
Depth | 14.37" |
Safety Information | PROPOSITION 65 WARNING |
8 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers | |
SKU | CENTRALHK08 |
Weight | 13.000000 |
Manufacturer | MRCOOL |
Electric Heat | 8 Kilowatts |
Electrical | 208/230v 1 Phase 60 Hz |
Max Breaker Size | 40/45 |
Min. Breaker Size | 37/42 |
Height | 10.24" |
Width | 24.02" |
Depth | 14.37" |
Safety Information | PROPOSITION 65 WARNING |
10 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers | |
SKU | CENTRALHK10 |
Weight | 13.000000 |
Manufacturer | MRCOOL |
Electric Heat | 10 Kilowatts |
Electrical | 208/230v 1 Phase 60 Hz |
Max Breaker Size | 50/60 |
Min. Breaker Size | 46/53 |
Height | 10.24" |
Width | 24.02" |
Depth | 14.37" |
Safety Information | PROPOSITION 65 WARNING |
15 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers | |
SKU | CENTRALHK15 |
Weight | 15.000000 |
Manufacturer | MRCOOL |
Electric Heat | 15 Kilowatts |
Electrical | 208/230v 1 Phase 60 Hz |
Max Breaker Size | 25/30 |
Min. Breaker Size | 23/27 |
Height | 10.24" |
Width | 24.02" |
Depth | 14.37" |
Safety Information | PROPOSITION 65 WARNING |
20 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers | |
SKU | CENTRALHK20 |
Weight | 16.000000 |
Manufacturer | MRCOOL |
Electric Heat | 20 Kilowatts |
Electrical | 208/230v 1 Phase 60 Hz |
Max Breaker Size | 50/60 |
Min. Breaker Size | 46/53 |
Height | 10.24" |
Width | 24.02" |
Depth | 14.37" |
Safety Information | PROPOSITION 65 WARNING |
Wall Mount Bracket for Condensers 30" | |
SKU | ACB-30 |
Weight | 9.200000 |
Manufacturer | Online Supply |
Length | 30" |
Height | 16" |
Width | 2" |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
Wall Mount Bracket for Mini Split Systems | |
SKU | HW-600 |
Weight | 9.200000 |
Manufacturer | Online Supply |
Length | 23" |
Height | 20" |
Width | 6" |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
