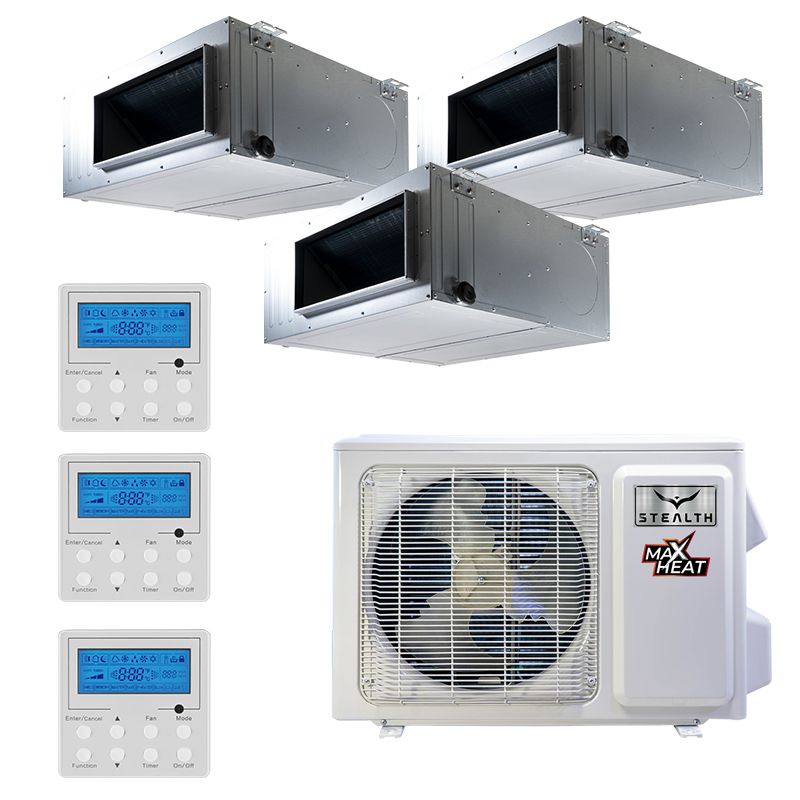

Today's Hours 8am - 11pm est42,000 BTU 14 SEER Tri Zone Concealed Duct Stealth Comfort Designer Heat Pump System 9+9+24
Required Fields *
Customer reviews
Out of stock
By
Stealth
Out of stock
Model
SC-42Z-HH-M5 / SC-09CD-HP230 - 2 / SC-24CD-HP230
ID
122036
The Stealth Designer+ Series Multi Zone mini-split systems offer elite performance across a range of air handler types suitable for any application. In addition to standard wall mounted air handlers, ceiling cassette, concealed ducted and floor mounted heat console type air handlers are available. With the Designer series, different air handler types can be mixed and matched to create a custom system perfectly suited to any home or space. Additional features include continuous heating down to an outside temperature of -31 degrees and I-Feel temp sensing.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
9k BTU Concealed Duct (up to 400 sq ft)
Stealth Comfort Designer+ 9,000 BTU R410A Concealed Duct Multi Zone Air Handler
Provides discreet heating and cooling for spaces up to 800 sq ft, this Stealth Designer concealed ducted air handler uses R410A refrigerant for quiet, consistent comfort.
Key Features
- 9,000 BTU capacity ideal for small rooms, offices, or supplemental zones.
- Concealed duct design for hidden installation and minimal visual impact.
- Compatible with multi-zone outdoor condensers.
- Efficient operation using reliable R410A refrigerant.
- Quiet performance designed for residential comfort.
- Compact design allows installation in ceilings, soffits, or tight spaces.
Feature Highlights
Discreet Climate Control
The concealed duct configuration allows the air handler to remain hidden above the ceiling or within a soffit while distributing conditioned air through vents or short duct runs. This design preserves the aesthetic of your living space while maintaining efficient climate control.
Flexible Multi-Zone Compatibility
Designed to connect with compatible multi-zone outdoor condensers, this air handler allows individual temperature control within a specific room or zone. It works seamlessly as part of a larger multi-room heating and cooling system.
Quiet and Efficient Performance
Engineered for quiet operation, the Designer+ air handler provides consistent airflow and dependable comfort without excessive noise. The system’s R410A refrigerant supports efficient heat transfer and reliable long-term performance.
What’s Included
- 1 × Stealth Comfort Designer+ 9,000 BTU Concealed Duct Indoor Air Handler
- Installation Components
- Controller Interface (varies by installation configuration)
Recommended Accessories
- Compatible Multi-Zone Outdoor Condenser
- Insulated Refrigerant Line Set
- Short Ducting and Ceiling Grilles
- Condensate Drain Line
- Communication Wire for system connection
Warranty
The Stealth Comfort Designer+ concealed duct air handler is supported by a manufacturer warranty that provides confidence in long-term performance. Warranty coverage applies according to manufacturer registration and installation guidelines.
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Top reviews
- Great Units at a Great PriceWe are very happy with our purchase of the Stealth Pinnacle Mini Splits. We bought a 42k with 5 heads and a 24k with 2 heads. There was a small dent in the 42k from shipping, but HVACdirect took care of it right away, and refunded me some $ for the issue. Installation went perfectly with no issues and the units are up and running beautifully! The build and overall quality of the units are as good if not better than many other “big” name brands, and you definitely can’t beat their warranty! We look forward to many years of heating and cooling with our Stealth Mini Splits!
Posted on
- Needs better destructionsI'd say 5 star all the way but...
One of the 2 units did show up damaged. Looked to be a fork leg got suck where a fork leg don't belong. Hvac did ship out a replacement unit rather quickly so just a minor inconvenience on that.
I did and up with a pin hole leak after the unit was set and up and running. My fault as I guess I got a bit feisty with the lines while putting the line set covers on. The problem came in when I went to pump the unit down to save the freon in that damaged line set. There was no instructions as to how to force the unit into cooling mode as it was too cold into the building for normal cooling to take place. I called the 'tech' guys but they really didn't know how to do it either. I finally got lucky after fiddling with the remote and it went into cool mode and it pumped the lines down.
Most people are not going to have any issue but just beware of the lack of true unit specific instructions. The gree instructions are far better than what you will find for the stealth stuff.
I would definitely buy these units again, without hesitation.Posted on
