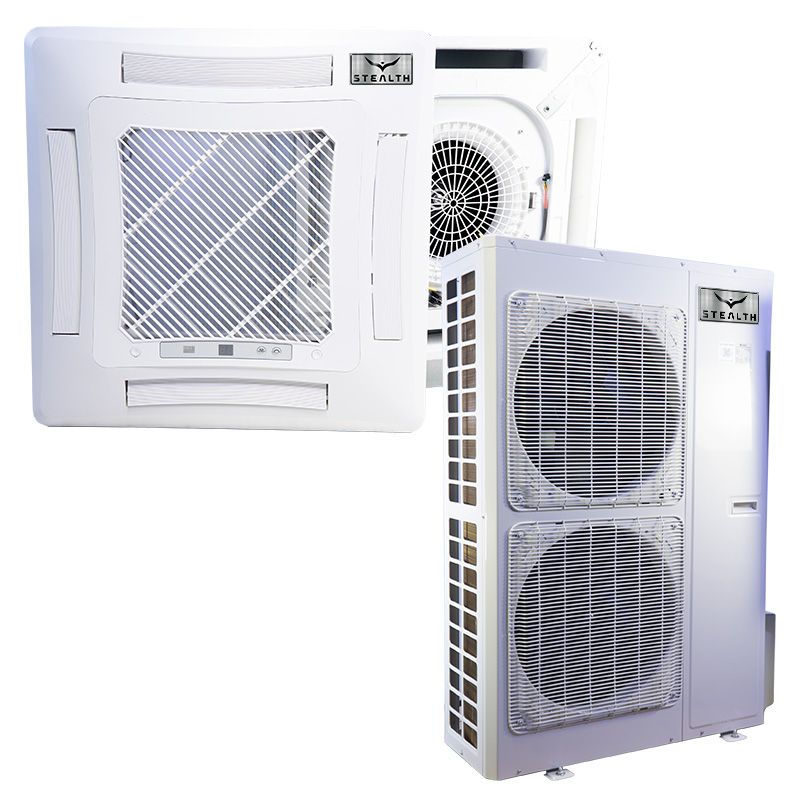

42,000 BTU 16 SEER Stealth Comfort Designer Mini Split Ceiling Cassette Zone System

42,000 BTU 16 SEER Stealth Comfort Designer Mini Split Ceiling Cassette Zone System

Name: 42,000 BTU 16 SEER Stealth Comfort Designer Mini Split Ceiling Cassette Zone System
Brand: Stealth
SKU: SC-42Z-UM / SC-42CC-UM / SC-42CCG-UM
Availability: OutOfStock

Stealth 42,000 BTU 16 SEER Designer Mini Split Ceiling Cassette Zone System - SC-42Z-UM / SC-42CC-UM / SC-42CCG-UM

SAVE $0.00

42,000 BTU 16 SEER Stealth Comfort Designer Mini Split Ceiling Cassette Zone System

Required Fields *

Be the first to review this product

Out of stock

Stealth

Out of stock

Model

SC-42Z-UM / SC-42CC-UM / SC-42CCG-UM

107461

Description

Enhanced Comfort

Stealth Designer Series Single Zone mini split systems provide the flexibility to use any of the available indoor unit types in a single zone application. Standard wall-mounted, flush mounted ceiling cassettes, floor-mounted and totally concealed ducted units are all available. You still get the precise temperature control, near-silent operation and maximum efficiency you expect from Stealth. There’s no more waiting to get exactly the system you want for your project.

Product Specs

More Information
42,000 BTU 16 SEER Stealth Comfort Designer Mini Split Single Zone Condenser
Feature	Spec
SKU	SC-42Z-UM
Weight (in lbs)	209
AHRI Certificate Number	208758354
Brand/Manufacturer	Stealth
UPC	689526902533
Cooling BTU	39,500
Heating BTU	44,000
Decibel Level (dBA)	61 dB(A)
Electric Heat	Heat Pump
Refrigerant	R410A
HSPF	9
SEER1 (Efficiency)	16-17
EER	9.8
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	50
Min. Breaker Size	29.7
Tonnage	3.5 Ton
BTU/Tonnage	42,000 BTU/3.5 Ton
Min/Max Outdoor Temp for Heating	0F - 75F
Min/Max Outdoor Temp for Cooling	0F - 118F
Zone Compatibility	Single Zone
Height	53.1"
Width	37.8"
Depth	16.3"
Warranty	14 year compressor, 5 year parts with online registration
Resources	Brochure Submittal Warranty Service Manual
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
42,000 BTU Stealth Comfort Designer Ceiling Cassette Single Zone Air Handler
Feature	Spec
SKU	SC-42CC-UM
Weight (in lbs)	70.4
Brand/Manufacturer	Stealth
UPC	689526902809
Cooling BTU	39,500
Heating BTU	44,000
Maximum CFM	1095 CFM
Decibel Level (dBA)	51 dB(A)
Electric Heat	Heat Pump
Refrigerant	R410A
HSPF	9
SEER1 (Efficiency)	16-17
EER	9
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	50
Min. Breaker Size	29.7
BTU/Tonnage	42,000 BTU/3.5 Ton
Mini Split Type	Ceiling Cassette
Min/Max Outdoor Temp for Heating	0F - 75F
Min/Max Outdoor Temp for Cooling	0F - 118F
Zone Compatibility	Single Zone
Height	09.1"
Width	29.5"
Depth	43.9"
Warranty	14 year compressor, 5 year parts with online registration
Resources	Quick Reference Guide Submittal Installation Manual Owner's Manual
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Stealth Comfort Designer U-Match Cassette Decorative Grille - 42K
Feature	Spec
SKU	SC-42CCG-UM
Weight (in lbs)	24
Brand/Manufacturer	Stealth
UPC	689526902915
BTU/Tonnage	42,000 BTU/3.5 Ton
Height	2.4"
Width	37.5"
Depth	37.5"
Warranty	14 year compressor, 5 year parts with online registration
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
