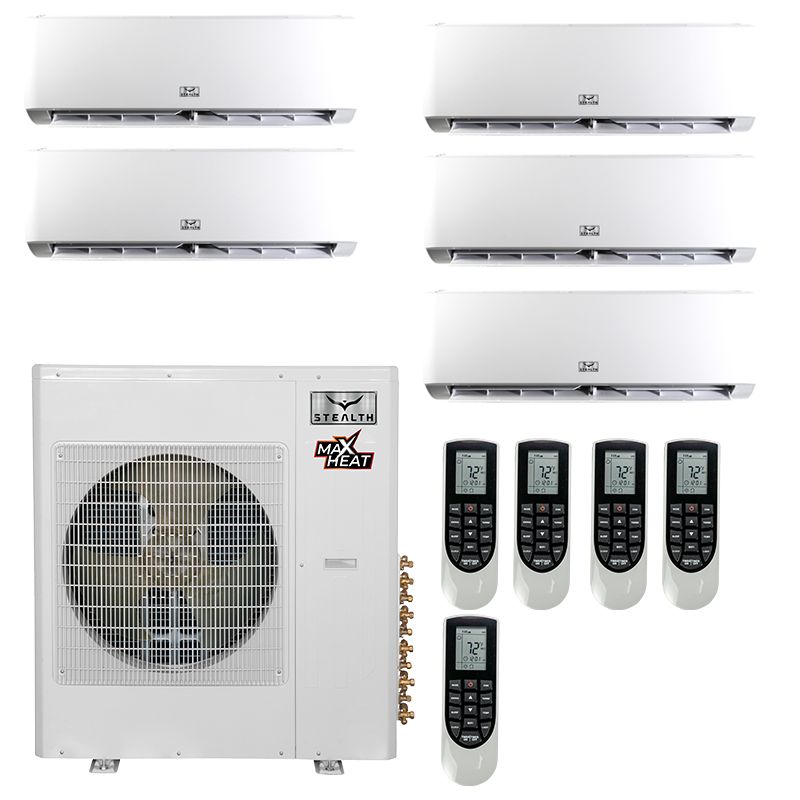

42,000 BTU 23 SEER Five Zone Wall Mounted Stealth Comfort Pinnacle Heat Pump System 9+9+12+12+18

Name: 42,000 BTU 23 SEER Five Zone Wall Mounted Stealth Comfort Pinnacle Heat Pump System 9+9+12+12+18
Brand: Stealth
SKU: SC-42Z-HH-M5/SC-09WPL-HP230-2 /SC-12WPL-HP230-2 /SC-18WPL-HP230
Availability: OutOfStock

SAVE $0.00

Required Fields *

Customer reviews

Rating:

4.8 out of 5

4.8 out of 5 View All 3 Reviews Add Your Review

Out of stock

Stealth

Out of stock

Model

SC-42Z-HH-M5/SC-09WPL-HP230-2 /SC-12WPL-HP230-2 /SC-18WPL-HP230

107446

Description

Stealth Pinnacle Series Multi Zone mini-split systems offer unmatched performance in an attractive package for your entire home. Every Stealth Pinnacle System is Wi-Fi compatible and can be controlled with Alexa and Google Home. Additional features include continuous heating down to an outside temperature of-31 degrees, Energy Star rating and I-Feel temp sensing. Stealth Pinnacle gives you more features and more performance than any other brand.

Product Specs

More Information
42,000 BTU 23 SEER Stealth Comfort Pinnacle Mini Split 2-5 Zone Heat Pump Condenser
Feature	Spec
SKU	SC-42Z-HH-M5B
Refrigerant Charge	Pre-charged for: 131'
Weight (in lbs)	291
AHRI Certificate Number	208674951
Brand/Manufacturer	Stealth
UPC	00850048551237
Additional Information	Heat Pump
Additional Information	Maximum Line Set Length: 82'
Additional Information	Maximum System Piping: 246'
Cooling BTU	42,000
Heating BTU	42,000
Decibel Level (dBA)	Outdoor Unit: 62 dB(A)
Electric Heat	Heat Pump
Refrigerant	R410A
HSPF	10
SEER1 (Efficiency)	23-24
EER	9
Liquid Line	1/4" (5)
Suction Line	3/8" (5)
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	40 amps
Min. Breaker Size	23 amps
Tonnage	3.5 Ton
BTU/Tonnage	42,000 BTU/3.5 Ton
Min/Max Outdoor Temp for Heating	-31F - 75F
Min/Max Outdoor Temp for Cooling	0F - 115F
Zone Compatibility	Multi Zone
Height	43.5"
Width	40"
Depth	17.3"
Warranty	14 year compressor, 5 year parts with online registration
Resources	Brochure Submittal Manual AHRI Certificate Warranty Service Manual
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU Stealth Comfort Pinnacle Wall Mount Single Zone Air Handler
Feature	Spec
SKU	SC-18WPL-HP230
Refrigerant Charge	25'
Weight (in lbs)	43
Brand/Manufacturer	Stealth
UPC	00850048551077
Additional Information	Heat Pump
Additional Information	Maximum Line Set Length: 131'
Additional Information	Minimum Line Set Length: 10'
Additional Information	Drain: 5/8"
Cooling BTU	18,000
Heating BTU	18,000
Maximum CFM	353-736 CFM
Decibel Level (dBA)	34-51 dB(A)
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R410A
HSPF	12
EER	13.5
Liquid Line	1/4"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60 Hz
Phase	Single Phase
Max Breaker Size	30 Amps
Min. Breaker Size	22 Amps
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	13"
Width	44.2"
Depth	9.7"
Warranty	14 year compressor, 5 year parts with online registration
Resources	Submittal Quick Start Guide WiFi Configuration
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Stealth Comfort Pinnacle Wall Mount Single Zone Air Handler
Feature	Spec
SKU	SC-09WPL-HP230
Weight (in lbs)	36.4
Brand/Manufacturer	Stealth
UPC	00850048551053
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	9,000
Heating BTU	9,000
Maximum CFM	206-424 CFM
Decibel Level (dBA)	Indoor Unit: 19-45 dB(A)
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	12.1"
Width	39.9"
Depth	8.7"
Warranty	14 year compressor, 5 year parts with online registration
Resources	Quick Start Guide Submittal WiFi Configuration
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Stealth Comfort Pinnacle Wall Mount Single Zone Air Handler
Feature	Spec
SKU	SC-09WPL-HP230
Weight (in lbs)	36.4
Brand/Manufacturer	Stealth
UPC	00850048551053
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	9,000
Heating BTU	9,000
Maximum CFM	206-424 CFM
Decibel Level (dBA)	Indoor Unit: 19-45 dB(A)
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	12.1"
Width	39.9"
Depth	8.7"
Warranty	14 year compressor, 5 year parts with online registration
Resources	Quick Start Guide Submittal WiFi Configuration
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU Stealth Comfort Pinnacle Wall Mount Single Zone Air Handler
Feature	Spec
SKU	SC-12WPL-HP230
Weight (in lbs)	37.5
Brand/Manufacturer	Stealth
UPC	00850048551060
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	12,000
Heating BTU	12,200
Maximum CFM	235-500 CFM
Decibel Level (dBA)	Indoor Unit: 22-49 dB(A)
Electric Heat	Heat Pump
Refrigerant	R410A
SEER1 (Efficiency)	26-30
EER	15.3
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	12"
Width	39.5"
Depth	8.8"
Warranty	14 year compressor, 5 year parts with online registration
Resources	Quick Start Guide Submittal WiFi Configuration
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU Stealth Comfort Pinnacle Wall Mount Single Zone Air Handler
Feature	Spec
SKU	SC-12WPL-HP230
Weight (in lbs)	37.5
Brand/Manufacturer	Stealth
UPC	00850048551060
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	12,000
Heating BTU	12,200
Maximum CFM	235-500 CFM
Decibel Level (dBA)	Indoor Unit: 22-49 dB(A)
Electric Heat	Heat Pump
Refrigerant	R410A
SEER1 (Efficiency)	26-30
EER	15.3
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	12"
Width	39.5"
Depth	8.8"
Warranty	14 year compressor, 5 year parts with online registration
Resources	Quick Start Guide Submittal WiFi Configuration
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews 3

Top reviews

Great Units at a Great Price

Quality
100%

Price
100%

Service
100%

We are very happy with our purchase of the Stealth Pinnacle Mini Splits. We bought a 42k with 5 heads and a 24k with 2 heads. There was a small dent in the 42k from shipping, but HVACdirect took care of it right away, and refunded me some $ for the issue. Installation went perfectly with no issues and the units are up and running beautifully! The build and overall quality of the units are as good if not better than many other “big” name brands, and you definitely can’t beat their warranty! We look forward to many years of heating and cooling with our Stealth Mini Splits!
Review by Josh Y
Posted on 5/20/24
Needs better destructions

Quality
80%

Price
100%

Service
100%

I'd say 5 star all the way but...
One of the 2 units did show up damaged. Looked to be a fork leg got suck where a fork leg don't belong. Hvac did ship out a replacement unit rather quickly so just a minor inconvenience on that.
I did and up with a pin hole leak after the unit was set and up and running. My fault as I guess I got a bit feisty with the lines while putting the line set covers on. The problem came in when I went to pump the unit down to save the freon in that damaged line set. There was no instructions as to how to force the unit into cooling mode as it was too cold into the building for normal cooling to take place. I called the 'tech' guys but they really didn't know how to do it either. I finally got lucky after fiddling with the remote and it went into cool mode and it pumped the lines down.
Most people are not going to have any issue but just beware of the lack of true unit specific instructions. The gree instructions are far better than what you will find for the stealth stuff.
I would definitely buy these units again, without hesitation.
Review by Bert
Posted on 5/14/24
Best I have seen

Service
100%

Quality
100%

Price
100%

We had our Stealth pinnacle mini split heat pump installed on 02-24-2023 by Ridgeline Construction Services LLC. Nick the licensed HVAC installer did an excellent job installing the units. The Stealth mini split has worked flawlessly and more than enough to heat the 600 square foot area. The product is quiet and more than meets our expectations so far. The price seemed reasonable and the warranty is one of the best I have seen on a mini split heat pump and I compared many name brands. The service at HVACDirect was exceptional and from inquiry to order and then delivery everything went smoothly. Thanks for your service.
Review by Layne
Posted on 3/6/23
