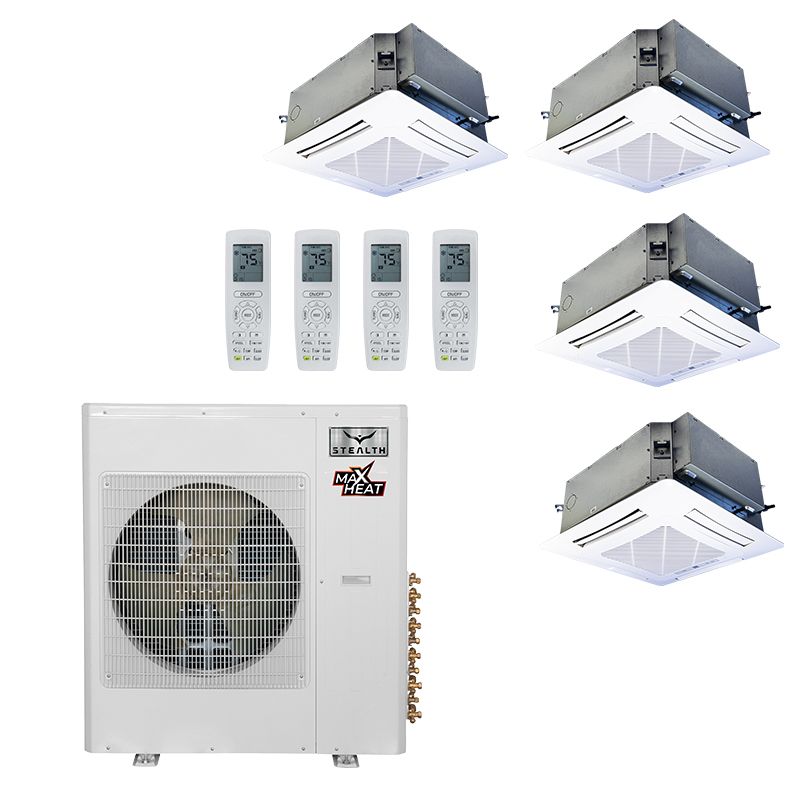

Today's Hours 8am - 11pm est42,000 BTU 23 SEER Stealth Comfort Designer+ Quad Zone Ceiling Cassette Heat Pump System 12+12+18+18
Required Fields *
Customer reviews
Out of stock
By
Stealth
Out of stock
Model
SC-42Z-HH-M5 / SC-12CC-HP230-2 / SC-18CC-HP230-2
ID
107935
The Stealth Designer+ Series Multi Zone mini-split systems offer elite performance across a range of air handler types suitable for any application. In addition to standard wall mounted air handlers, ceiling cassette, concealed ducted and floor mounted heat console type air handlers are available.
With the Designer series, different air handler types can be mixed and matched to create a custom system perfectly suited to any home or space.
Additional features include continuous heating down to an outside temperature of -31 degrees and I-Feel temp sensing.
12k BTU Ceiling Cassette (400 - 550 sq ft)
Stealth Comfort Designer+ 12,000 BTU R410A Ceiling Cassette Multi Zone Air Handler
Provides even heating and cooling for rooms up to 800 sq ft, this Stealth Designer ceiling cassette uses R410A refrigerant to deliver balanced, all-direction comfort.
Key Features
- 12,000 BTU capacity ideal for medium-sized rooms, offices, or living spaces.
- Ceiling cassette design for low-profile, flush-mounted installation.
- Compatible with multi-zone outdoor condensers for precise zone control.
- Multi-directional airflow ensures even distribution of conditioned air.
- Quiet operation suitable for residential and light commercial spaces.
- Uses reliable R410A refrigerant for efficient performance.
Feature Highlights
Discreet Ceiling Installation
The ceiling cassette design allows the air handler to be installed flush with the ceiling, leaving only a decorative grille visible. This ensures efficient climate control while maintaining a clean, modern aesthetic in the room.
Even Airflow Distribution
Multi-directional airflow delivers consistent heating and cooling across the room, minimizing hot or cold spots. Ideal for open layouts or rooms with irregular shapes, it provides comfortable temperatures in every corner.
Multi-Zone System Integration
Designed for multi-zone systems, this indoor unit allows independent temperature control of its zone, giving customized comfort and improved energy efficiency when paired with compatible outdoor condensers.
What’s Included
- 1 × Stealth Comfort Designer+ 12,000 BTU Ceiling Cassette Indoor Air Handler
- Decorative Ceiling Panel/Grille
- Installation Components
- Controller Interface (varies by installation configuration)
Recommended Accessories
- Compatible Multi-Zone Outdoor Condenser
- Insulated Refrigerant Line Set
- Condensate Drain Line
- Communication Wire for system connection
- Ceiling Support Brackets for secure installation
Warranty
The Stealth Comfort Designer+ ceiling cassette air handler is backed by a manufacturer warranty to ensure long-term performance and reliability. Warranty coverage applies according to manufacturer registration and installation guidelines.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Top reviews
- Great Units at a Great PriceWe are very happy with our purchase of the Stealth Pinnacle Mini Splits. We bought a 42k with 5 heads and a 24k with 2 heads. There was a small dent in the 42k from shipping, but HVACdirect took care of it right away, and refunded me some $ for the issue. Installation went perfectly with no issues and the units are up and running beautifully! The build and overall quality of the units are as good if not better than many other “big” name brands, and you definitely can’t beat their warranty! We look forward to many years of heating and cooling with our Stealth Mini Splits!
Posted on
- Needs better destructionsI'd say 5 star all the way but...
One of the 2 units did show up damaged. Looked to be a fork leg got suck where a fork leg don't belong. Hvac did ship out a replacement unit rather quickly so just a minor inconvenience on that.
I did and up with a pin hole leak after the unit was set and up and running. My fault as I guess I got a bit feisty with the lines while putting the line set covers on. The problem came in when I went to pump the unit down to save the freon in that damaged line set. There was no instructions as to how to force the unit into cooling mode as it was too cold into the building for normal cooling to take place. I called the 'tech' guys but they really didn't know how to do it either. I finally got lucky after fiddling with the remote and it went into cool mode and it pumped the lines down.
Most people are not going to have any issue but just beware of the lack of true unit specific instructions. The gree instructions are far better than what you will find for the stealth stuff.
I would definitely buy these units again, without hesitation.Posted on
