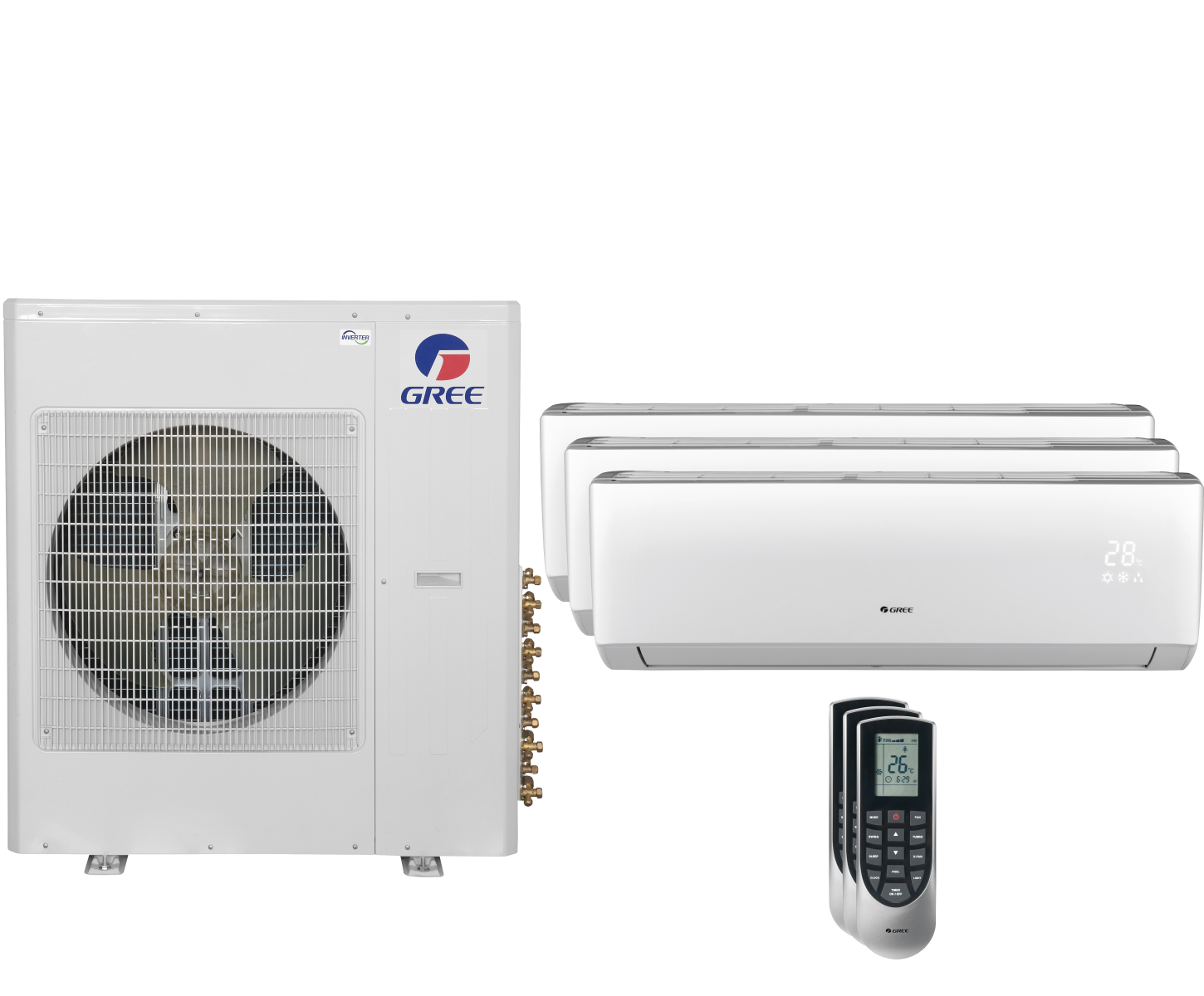

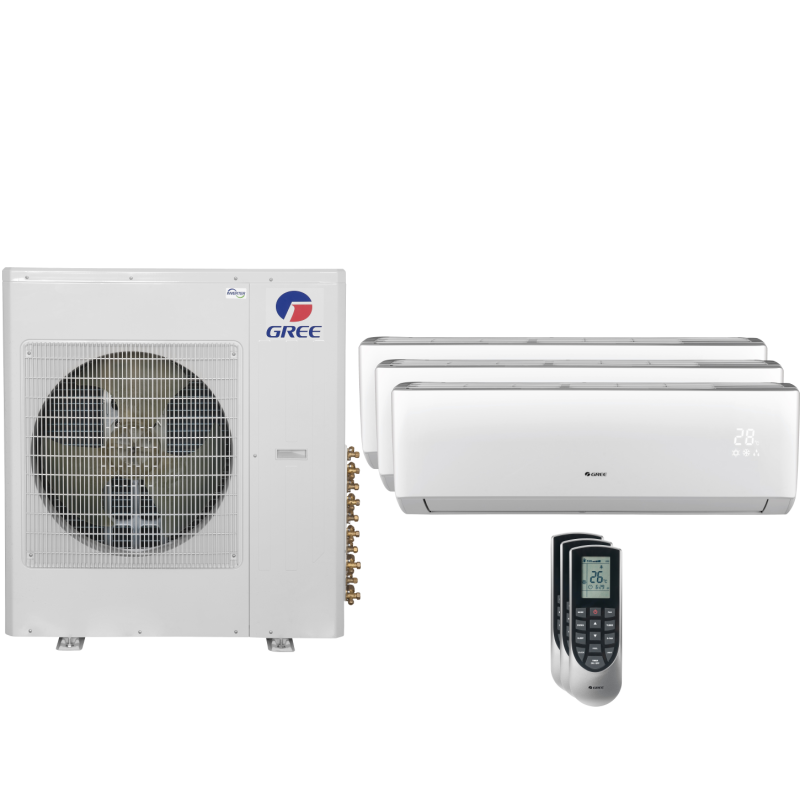

42,000 BTU 23 SEER Tri Zone Wall Mounted Gree Heat Pump System 12 + 12 + 18 - R410A

42,000 BTU 23 SEER Tri Zone Wall Mounted Gree Heat Pump System 12 + 12 + 18 - R410A

Required Fields *

By

Gree

In stock

Model

MULTIU42HP230V1DO / 2-3VIR12HP230V1BH / 3VIR18HP230V1BH

ID

209782

In Stock - Ready to Ship
Was $7,466.57
Your Low Price $4,299.99

Free Shipping
  • Heating & Cooling
  • Ductless Solution
  • Compatible with one 400-600 & two 600-1,000 sq ft Rooms/Zones
  • Tri-Zone/Room Compatible
  • Wi-Fi & Remote Control Compatible
  • 5-Year Limited Warranty
Customize 42,000 BTU 23 SEER Tri Zone Wall Mounted Gree Heat Pump System 12 + 12 + 18 - R410A
42k BTU Heat Pump Condenser (2-5 Zone) - Higher Effeciency
42k BTU Heat Pump Condenser (2-5 Zone) - Higher Effeciency   + $2,999.99
12,000 BTU Gree Gen 3 Wall Mount Air Handler - R410A
12,000 BTU Gree Gen 3 Wall Mount Air Handler - R410A   + $400.00
12,000 BTU Gree Gen 3 Wall Mount Air Handler - R410A
12,000 BTU Gree Gen 3 Wall Mount Air Handler - R410A   + $400.00
18,000 BTU Gree Gen 3 Wall Mount Air Handler - R410A
18,000 BTU Gree Gen 3 Wall Mount Air Handler - R410A   + $500.00
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
42,000 BTU 23 SEER Tri Zone Wall Mounted Gree Heat Pump System 12+18+18

$4,299.99

The Gree Tri Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 23 SEER, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit.

12,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler

The Gree Vireo+ combines cutting edge technology and a minimalist design. It has been designed to blend into any living space, with a slim cabinet that can be installed onto the wall. The wall mounted unit has an easy-to-read display which gives information about the operating mode. With four speeds, the unit can provide maximum comfort while still operating quietly. Other smart technology includes an I Feel Mode, which adjusts airflow and temperature for maximum comfort, and a sleep mode which saves energy while automatically adjusting the room's temperature. You also have the option of upgrading your Vireo+ to Universal WIFI, which enables you to control the comfort of your home from your smartphone.

The Gree Vireo+ is AHRI Certified and comes with a 5-year limited warranty.

Features:

  • Heating, Cooling, Dry, and Fan modes
  • Polymeric air filters
  • I Feel mode
  • Privacy lock mode
  • Sleep mode
  • Fahrenheit °F / Celsius °C
  • Handheld IR remote control included
18,000 BTU Wall Mount Gree Mini-Split Vireo Gen 3 Single Zone Air Handler

The Gree Vireo+ combines cutting edge technology and a minimalist design. It has been designed to blend into any living space, with a slim cabinet that can be installed onto the wall. The wall mounted unit has an easy-to-read display which gives information about the operating mode. With four speeds, the unit can provide maximum comfort while still operating quietly. Other smart technology includes an I Feel Mode, which adjusts airflow and temperature for maximum comfort, and a sleep mode which saves energy while automatically adjusting the room's temperature. You also have the option of upgrading your Vireo+ to Universal WIFI, which enables you to control the comfort of your home from your smartphone.

The Gree Vireo+ is AHRI Certified and comes with a 5-year limited warranty.

Features:

  • Heating, Cooling, Dry, and Fan modes
  • Polymeric air filters
  • I Feel mode
  • Privacy lock mode
  • Sleep mode
  • Fahrenheit °F / Celsius °C
  • Handheld IR remote control included
42,000 BTU 23 SEER Gree Mini Split Multi+ Ultra 2-5 Zone Heat Pump Condenser - R410A

The Gree Multi+ Ultra Multi Zone Inverter Heat Pump operates with lower power consumption and lower noise, and provides you with more comfort. Advanced G-10 inverter technology ensures stable operation and operates down to a bone-chilling -31°F outdoor temperature! The unit uses eco-friendly R-410A refrigerant, an optimized fan with anti-corrosion coating, and a brushless fan motor.

The Multi+ Ultra condenser is AHRI Certified and comes with a 5-year limited warranty.

Features:

  • Minimum 2 connected zones
  • Maximum 5 connected zones
  • No refrigerant branch box required
  • Minimum 18,000 BTU connected capacity
  • Maximum 51,000 BTU connected capacity

Compatible Indoor Units:

Wall Mounted

  • Comfort Series Livo+: LIVS09HP230V1BH, LIVS12HP230V1BH, LIVS18HP230V1BH, LIVS24HP230V1BH
  • Comfort Series Livo Gen3: LIVV09HP230V1AH, LIVV12HP230V1AH, LIVV18HP230V1AH, LIVV24HP230V1AH
  • Connoisseur Series Vireo+: VIR09HP230V1BH, VIR12HP230V1BH, VIR18HP230V1BH, VIR24HP230V1BH
  • Tech Series Sapphire: SAP09HP230V1AH, SAP12HP230V1AH, SAP18HP230V1AH, SAP24HP230V1AH

Ducted

  • Slim Duct: DUCT09HP230V1AD, DUCT12HP230V1AD, DUCT18HP230V1AD, DUCT24HP230V1AD
  • High Static: DUCT09HP230V1BD, DUCT12HP230V1BD, DUCT18HP230V1BD, DUCT24HP230V1BD

Ceiling Cassette

  • CAS12HP230V1AC, CAS18HP230V1AC, CAS24HP230V1AC

Universal Floor/Ceiling Suspended

  • FLR09HP230V1AF, FLR12HP230V1AF, FLR18HP230V1AF, FLR24HP230V1AF

Floor Mounted Mini-Console:

  • CONS09HP230V1AF, CONS12HP230V1AF, CONS18HP230V1AF
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
More Information
12,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler
SKU3VIR12HP230V1BH
Weight25.400000
ManufacturerGree
Replaces3VIR12HP230V1AH
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU12,000
Heating BTU12,000
Maximum CFM182-424 CFM
Decibel Level (dBA)Indoor Unit: 27-43 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height11.5625"
Width32.5"
Depth7.75"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
18,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler
SKU3VIR18HP230V1BH
Weight35.300000
ManufacturerGree
Replaces3VIR18HP230V1AH
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU18,000
Heating BTU18,000
Maximum CFM283-618 CFM
Decibel Level (dBA)Indoor Unit: 29-49 dB(A)
RefrigerantR410A
Liquid Line1/4"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height12.25"
Width38.6875"
Depth8.75"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
42,000 BTU 23 SEER Gree Mini Split Multi+ Ultra 2-5 Zone Heat Pump Condenser - R410A
SKUMULTIU42HP230V1DO
Refrigerant ChargePre-charged for: 131'
Weight291.000000
AHRI Certificate Number201288781 & 204630895 & 204664398
ManufacturerGree
Product FeaturesLow Ambient Heating
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMaximum System Piping: 246'
HSPF10
Cooling BTU42,000
Heating BTU42,000
Decibel Level (dBA)Outdoor Unit: 62 dB(A)
Energy StarNo
RefrigerantR410A
SEER23-24
EER9
Compressor TypeRotary
Liquid Lineliquid_line=1/4" (5)
Suction Linesuction_line=3/8" (5)
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size40 amps
Min. Breaker Size23 amps
Tonnage3.5 Ton
BTU/Tonnage42,000 BTU/3.5 Ton
Min/Max Outdoor Temp for Heating-31F - 75F
Min/Max Outdoor Temp for Cooling0F - 115F
Height43.5"
Width40"
Depth17.3"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet
SKU366407
Weight35.000000
ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet
SKU366406
Weight25.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet
SKU366408
Weight45.000000
ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet
SKU219066
Weight30.000000
ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
SKU218863
Weight15.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
SKU366401
Weight35.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
SKU366400
Weight25.000000
ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
SKU366402
Weight45.000000
ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
SKU216741
Weight30.000000
ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
SKU201814
Weight15.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
