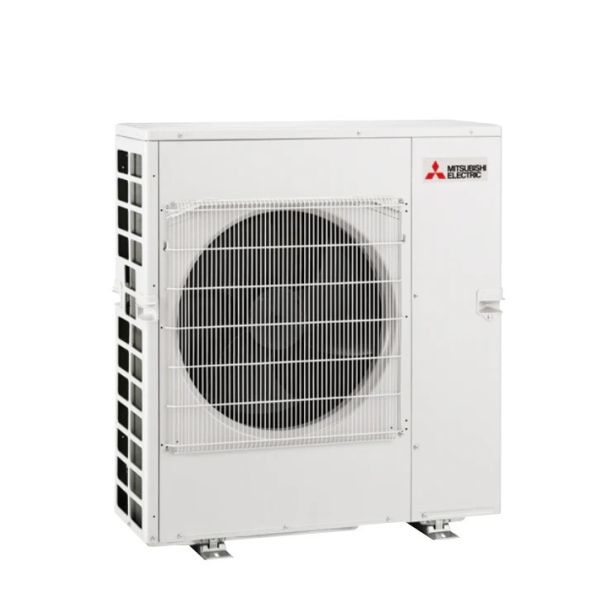

MXZ-5C42NA2 - 42,000 BTU Mitsubishi M-Series 5 Zone Mini Split Heat Pump Condenser – R410A | 230V
The MXZ-5C42NA2 is a multi-zone outdoor condenser from Mitsubishi Electric’s M-Series, designed to connect up to five indoor units. With inverter-driven performance, it offers efficient heating and cooling for year-round comfort in residential or light commercial settings. Below are the key features and specifications of this model:
Key Features:
- 5-Zone Capability: Supports up to five compatible Mitsubishi indoor units for flexible system design.
- Inverter-Driven Compressor: Adjusts output to match demand, enhancing energy efficiency and comfort.
- Quiet Operation: Low outdoor sound levels help minimize noise disruption around the home or business.
- Durable Construction: Built with weather-resistant materials for long-lasting performance.
- Year-Round Comfort: Provides both heating and cooling with broad operating ranges.
Specifications:
- Cooling Capacity Range: 12,600 – 43,000 BTU/h
- Rated Cooling Capacity: 40,500 BTU/h (Non-Ducted) / 37,400 BTU/h (Ducted)
- Rated Heating Capacity at 47°F: 45,000 BTU/h (Non-Ducted) / 41,000 BTU/h (Ducted)
- Heating Capacity Range: 11,400 – 53,600 BTU/h
- SEER (up to): 19.7
- EER: 9.2
- HSPF (up to): 10.3
- Refrigerant: R410A
- Power Supply: 208/230 V AC, Single Phase, 60 Hz
- Fuse/Breaker (Min): 40A (typical – verify per local code)
- Dimensions (W x D x H): approx. 37-13/32" x 13" x 41-9/32"
- Sound Pressure (Cooling/Heating): ~56 / 58 dB(A)
The MXZ-5C42NA2 is an excellent choice for multi-zone comfort, combining efficiency, flexibility, and Mitsubishi Electric’s proven reliability.
