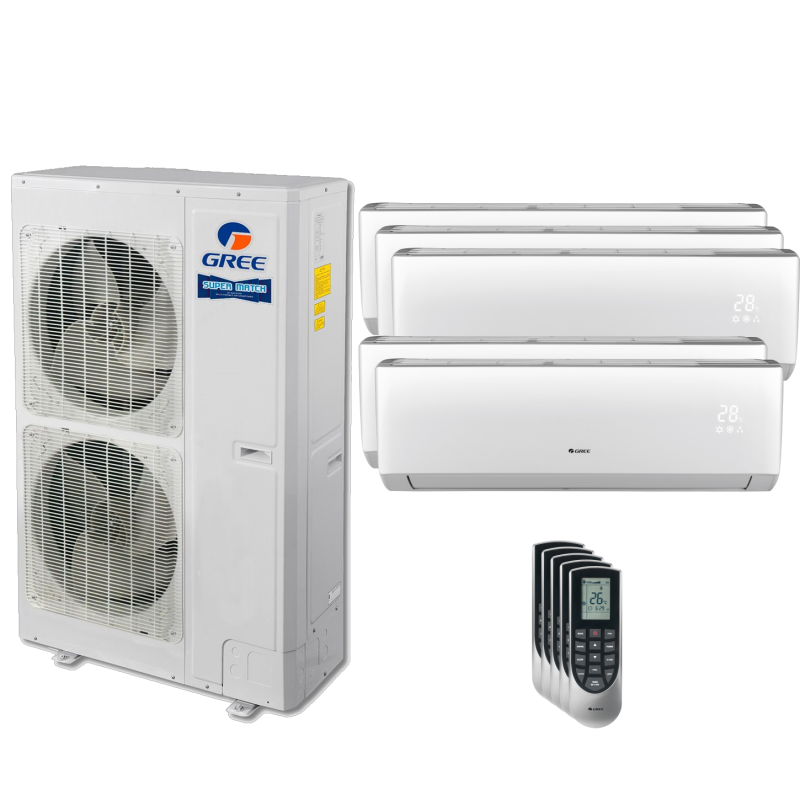

48,000 BTU 16 SEER Five Zone Wall Mounted Gree Heat Pump System 9+12+12+12+24

Name: 48,000 BTU 16 SEER Five Zone Wall Mounted Gree Heat Pump System 9+12+12+12+24
Brand: Gree
SKU: MULTI48 / VIR09 / 3-VIR12 / VIR24
Price: 97.08 USD
Availability: OutOfStock

Required Fields *

Be the first to review this product

Out of stock

Gree

Out of stock

Model

MULTI48 / VIR09 / 3-VIR12 / VIR24

54040

Description

The Gree Five Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 16 SEER, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit.

Gree Branch Box Y Connector

The Gree Y-splitter is used one installations with two or three branch boxes on a 48,000 or 56,000 BTU multi-zone Gree condenser.If installing two branch boxes, one LN01300110 Y-conencter will be required to split the line set two ways. If using three branch boxes, two LN01300110 Y-connectors will be required to split the lines in two a second time.

Compatible Outdoor Units:

Super+ Multi: MULTI48HP230V1AO, MULTI56HP230V1AO
Super+ Multi Ultra: MULTIU48HP230V1BO

Product Specs

More Information
48,000 BTU 16 SEER Gree Mini Split Super+ Multi 2-8 Zone Heat Pump Condenser
Feature	Spec
SKU	MULTI48HP230V1AO
Refrigerant Charge	Pre-charged for: 98'
Weight (in lbs)	331
AHRI Certificate Number	203991158 & 10149879
Brand/Manufacturer	Gree
UPC	795934784576
Additional Information	Heat Pump
Additional Information	Maximum Line Set Length: 230'
Additional Information	Maximum System Piping: 443'
Cooling BTU	48,000
Heating BTU	54,000
Decibel Level (dBA)	Outdoor Unit: 56 dB(A)
Energy Star	No
Refrigerant	R410A
HSPF	8
SEER1 (Efficiency)	16-17
EER	9.6
Compressor Type	Rotary
Liquid Line	liquid_line=3/8" (1)
Suction Line	suction_line=5/8" (1)
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	50 amps
Min. Breaker Size	30 amps
Tonnage	4 Ton
BTU/Tonnage	48,000 BTU/4 Ton
Min/Max Outdoor Temp for Heating	-13F - 81F
Min/Max Outdoor Temp for Cooling	50F - 129F
Height	53.1"
Width	35.4"
Depth	13.4"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler - R410A
Feature	Spec
SKU	3VIR09HP230V1BH
Weight (in lbs)	25.4
Brand/Manufacturer	Gree
Replaces	3VIR09HP230V1AH
UPC	613365266044
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	9,000
Heating BTU	9,000
Maximum CFM	159-353 CFM
Decibel Level (dBA)	Indoor Unit: 25-40 dB(A)
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	3/8"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	11.5625"
Width	32.5"
Depth	7.75"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler
Feature	Spec
SKU	3VIR12HP230V1BH
Weight (in lbs)	25.4
Brand/Manufacturer	Gree
Replaces	3VIR12HP230V1AH
UPC	na
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	12,000
Heating BTU	12,000
Maximum CFM	182-424 CFM
Decibel Level (dBA)	Indoor Unit: 27-43 dB(A)
Electric Heat	Heat Pump
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	11.5625"
Width	32.5"
Depth	7.75"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÃ‚Â® AcrobatÃ‚Â® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler
Feature	Spec
SKU	3VIR12HP230V1BH
Weight (in lbs)	25.4
Brand/Manufacturer	Gree
Replaces	3VIR12HP230V1AH
UPC	na
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	12,000
Heating BTU	12,000
Maximum CFM	182-424 CFM
Decibel Level (dBA)	Indoor Unit: 27-43 dB(A)
Electric Heat	Heat Pump
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	11.5625"
Width	32.5"
Depth	7.75"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÃ‚Â® AcrobatÃ‚Â® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler
Feature	Spec
SKU	3VIR12HP230V1BH
Weight (in lbs)	25.4
Brand/Manufacturer	Gree
Replaces	3VIR12HP230V1AH
UPC	na
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	12,000
Heating BTU	12,000
Maximum CFM	182-424 CFM
Decibel Level (dBA)	Indoor Unit: 27-43 dB(A)
Electric Heat	Heat Pump
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	11.5625"
Width	32.5"
Depth	7.75"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÃ‚Â® AcrobatÃ‚Â® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree 24,000 BTU R410A Vireo Gen 3 Wall Mount Mini Split Air Handler
Feature	Spec
SKU	3VIR24HP230V1BH
Weight (in lbs)	41.9
Brand/Manufacturer	Gree
Replaces	3VIR24HP230V1AH
UPC	605468007358
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	24,000
Heating BTU	24,000
Maximum CFM	412-677 CFM
Decibel Level (dBA)	Indoor Unit: 34-52 dB(A)
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	24,000 BTU/2 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	13.125"
Width	42.375"
Depth	9.6875"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree Branch Box - 2 Zone (FXA2A-D)
Feature	Spec
SKU	RFX12A
Weight (in lbs)	18
Brand/Manufacturer	Gree
UPC	na
Additional Information	Condenser-Side Liquid Line: 3/8"
Additional Information	Condenser-Side Suction Line: 5/8"
Liquid Line	1/4" (2)
Suction Line	3/8" (2)
Height	12.3"
Width	7.2"
Depth	20.9"
Warranty	5 year Limited Parts Warranty
Resources	Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree Branch Box - 3 Zone (FXA3A-D)
Feature	Spec
SKU	RFX13A
Weight (in lbs)	18
Brand/Manufacturer	Gree
UPC	na
Additional Information	Condenser-Side Liquid Line: 3/8"
Additional Information	Condenser-Side Suction Line: 5/8"
Liquid Line	1/4" (3)
Suction Line	3/8" (3)
Height	12.3"
Width	7.2"
Depth	20.9"
Warranty	5 year Limited Parts Warranty
Resources	Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree Branch Box - 2 Zone (FXA2A-D)
Feature	Spec
SKU	RFX12A
Weight (in lbs)	18
Brand/Manufacturer	Gree
UPC	na
Additional Information	Condenser-Side Liquid Line: 3/8"
Additional Information	Condenser-Side Suction Line: 5/8"
Liquid Line	1/4" (2)
Suction Line	3/8" (2)
Height	12.3"
Width	7.2"
Depth	20.9"
Warranty	5 year Limited Parts Warranty
Resources	Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree Branch Box - 3 Zone (FXA3A-D)
Feature	Spec
SKU	RFX13A
Weight (in lbs)	18
Brand/Manufacturer	Gree
UPC	na
Additional Information	Condenser-Side Liquid Line: 3/8"
Additional Information	Condenser-Side Suction Line: 5/8"
Liquid Line	1/4" (3)
Suction Line	3/8" (3)
Height	12.3"
Width	7.2"
Depth	20.9"
Warranty	5 year Limited Parts Warranty
Resources	Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree Branch Box Y Connector
Feature	Spec
SKU	LN01300110
Weight (in lbs)	4
Brand/Manufacturer	Gree
UPC	na
Height	2"
Width	4"
Depth	12.5"
Warranty	5 year Limited Parts Warranty
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
