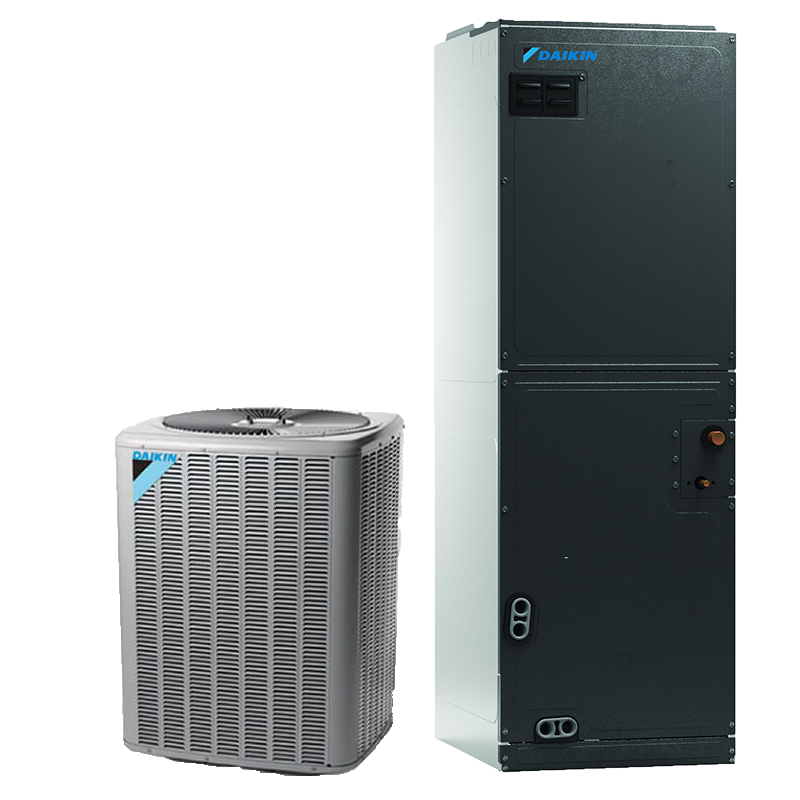

5 Ton 13 SEER 208/230v Daikin Commercial Air Conditioner Split System

By

Daikin

Call for Availability
Model

DX13SA0603 / ARUF61D14

ID

100060

Availability: Call for Availability
Daikin

Authorized Daikin Dealer

Your Low Price $4,157.00
Bread Checkout

Free Shipping

Required Fields *

Customize 5 Ton 13 SEER 208/230v Daikin Commercial Air Conditioner Split System
Daikin 5 Ton 13 SEER Commercial Air Conditioner Condenser - 208/230V Three Phase (Call for Availability)   + $2,833.00 View Item
Daikin 5 Ton 13 SEER Commercial Air Conditioner Condenser - 208/230V Three Phase (Call for Availability)   + $2,833.00
5 Ton Multi-Positional Goodman Air Handler (In Stock - Ready to Ship)   + $1,324.00 View Item
5 Ton Multi-Positional Goodman Air Handler (In Stock - Ready to Ship)   + $1,324.00
5 Ton 13 SEER 208/230v Daikin Commercial Air Conditioner Split System

$4,157.00

Accessories for this product

Description

The Daikin commercial air conditioning condenser and indoor air handler is the perfect system to fulfill your larger-scale air conditioning needs. The condenser is capable of ground-level or rooftop installations and its design includes an innovative louvered sound control top. This system is a great choice to provide comfort cooling in larger offices and retail stores.

Note: The air handler that comes in this system is manufactured by Goodman. Goodman is a subsidiary of Daikin Industries. Their air handler is approved to work with a Daikin condenser.

Daikin 5 Ton 13 SEER Commercial Air Conditioner Condenser - 208/230V Three Phase

The Daikin Air Conditioner Condensing Unit provides energy-efficient cooling performance in one self-contained unit. This unit is suitable for ground-level or rooftop installations. The design includes an Innovative louvered sound control top.

Standard Features

  • R-410A chlorine-free refrigerant
  • Energy-efficient scroll compressor
  • Factory-Installed Filter Drier
  • Single panel access to controls
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Nickel Gray powder-paint finish
  • AHRI Certified; ETL Listed
5 Ton Multi-Positional Goodman Air Handler

OVERVIEW

Designed with an enhanced comfort in mind, the ARUF61D14 air handler lives up to Goodman’s expectations to be efficient and inexpensive, ready to heat and cool your home when paired with a condenser whenever you need it.

QUICK FACTS

  • 5 ton air handler
  • Electric heat compatible
  • Efficient multi-speed blower
  • Multi-positional (upflow, downflow, or horizontal)
5 Tons

The Goodman ARUF61D14 air handler is rated for up to 5 tons. In some packages, the air handler will be slightly larger in tonnage than the condenser in the package. This is intentional, as it maintains the overall efficiency of the entire system. From the factory, the unit does need an outdoor unit to function as an AC or heat pump air handler, however it can use an electric heat kit and acts as a straight electric heating unit when the kit field installed.

Warranty

The ARUF61D14 comes with Goodman’s standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.

Durability and Reliability

The ARUF61D14 air handler is factory-sealed, making it compliant out of the box with 2001 Florida Building Code compliant and decreasing air leakage, increasing efficiency and saving the air to heat or cool your home and providing a peace of mind that the reliability of the unit will heat or cool your home whenever you need it to. Moreover, the ARUF61D14 has a sub-structure that increases overall unit stability, and its cabinet is durable in construction to protect your new investment.

Installation and Maintenance

The Goodman ARUF61D14 air handler contains both a coil and a blower motor in its cabinet. This one-piece design generally makes installations simpler, keeping more money in your pocket since it lowers installation costs. For accessory add-ons, there are multiple knockouts for easy installation, like a single-bulb UV light port. Moreover, the SmartFrame sub-structure provides enhanced stability and easier installation with its special mounting configurations, and the cabinet is designed to be able to function in the upflow, downflow, or horizontal configurations with ease. For easier maintenance, the air handler also has side and top access panels.

Enhanced Comfort

The Goodman ARUF61D14 air handler is built with a direct-drive, multi-speed blower motor, providing a more steady temperature in your home, making you more comfortable and lowering operating costs.

Product Specifications

More Information
Daikin 5 Ton 13 SEER Commercial Air Conditioner Condenser - 208/230V Three Phase
Refrigerant Charge Pre-Charged For: 15'
Weight (in lbs) 301.000000
Manufacturer Daikin
Cooling BTU 60,000 BTU
Decibel Level (dBA) 76 decibels
Refrigerant R410A
SEER 13
EER 11
Condenser Stages Two Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 1 1/8"
Liquid Valve Size 3/8"
Suction Valve Size 7/8" (4)
Electrical 208 / 230 V. 3 Phase 60 Hz
Phase Three Phase
Max Breaker Size 35 amps
Min. Breaker Size 21.3 amps
Tonnage 5 Ton
Height 38.25"
Width 35.5"
Depth 35.5"
Warranty 5 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
5 Ton Multi-Positional Goodman Air Handler
Weight (in lbs) 155.000000
Manufacturer Goodman
Blower Motor Multi Speed - PSC
Maximum CFM 2,235
Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
Refrigerant R410A
Filter Size 23" x 20"
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/240  V, 1 Phase,  60 Hz
Max Breaker Size 15 amps
Tonnage 5 Ton
Fuel Type Electric
Height 58"
Width 24.5"
Depth 21"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
