Daikin 5 Ton 14 SEER Commercial Packaged Heat Pump Split System | 460V 3 Phase - R410A - Single Stage

Daikin 5 Ton 14 SEER Commercial Packaged Heat Pump Split System | 460V 3 Phase - R410A - Single Stage

Name: Daikin 5 Ton 14 SEER Commercial Packaged Heat Pump Split System | 460V 3 Phase - R410A - Single Stage
Brand: Daikin
SKU: DZ14SA0604 / ARUF61D14
Availability: OutOfStock

Required Fields *

Be the first to review this product

Out of stock

Daikin

Out of stock

Model

DZ14SA0604 / ARUF61D14

100135

Description

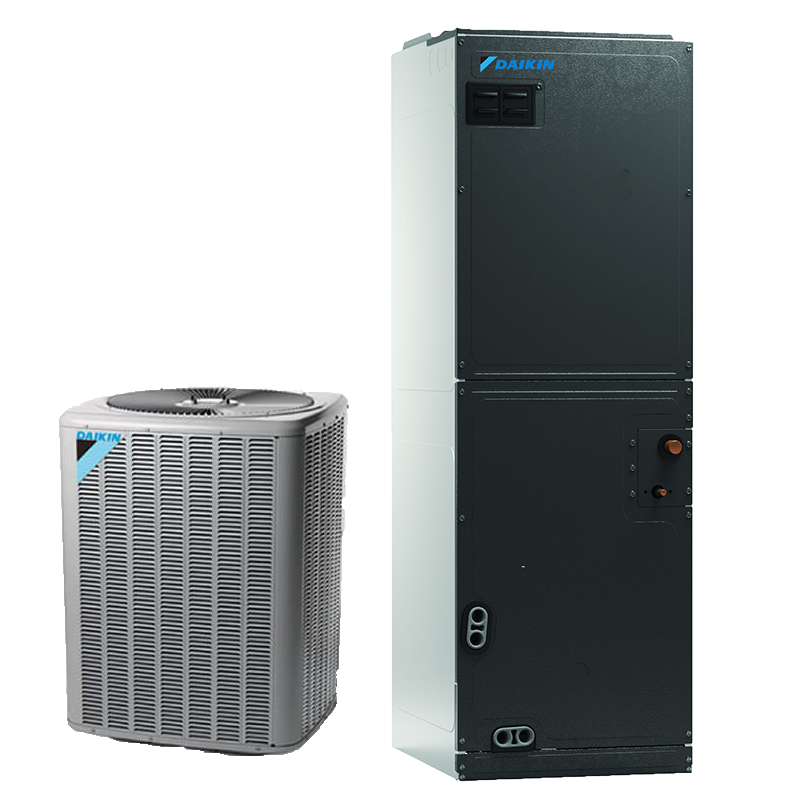

The Daikin commercial heat pump condenser and indoor air handler is the perfect system to fulfill your larger-scale heating and cooling needs. The condenser is capable of ground-level or rooftop installations and its design includes an innovative louvered sound control top. This system is a great choice to provide comfort cooling in larger offices and retail stores.

Note: The air handler that comes in this system is manufactured by Goodman. Goodman is a subsidiary of Daikin Industries. Their air handler is approved to work with a Daikin condenser.

Product Specs

More Information
Daikin 5 Ton 14 SEER Commercial Heat Pump Condenser \| 460V 3 Phase - R410A - Single Stage
Feature	Spec
SKU	DZ14SA0604
Refrigerant Charge	Pre-Charged For: 15'
Weight (in lbs)	261
Brand/Manufacturer	Daikin
UPC	686797026609
Cooling BTU	56,500 BTU
Heating BTU	59,000 BTU
Decibel Level (dBA)	75 decibels
Refrigerant	R410A
SEER1 (Efficiency)	14
EER	11.5
Compressor Type	Scroll
Liquid Line	3/8"
Suction Line	1 1/8"
Liquid Valve Size	3/8"
Suction Valve Size	7/8" (4)
Electrical	460 V. 3 Phase 60 Hz
Phase	Three Phase
Max Breaker Size	15 amps
Min. Breaker Size	10.6 amps
Tonnage	5 Ton
Height	34.25"
Width	35.5"
Depth	35.5"
Warranty	5 Years Parts with Online Registration
Resources	DZ14SA Installation Manual DZ14SA Specifications Sheet Daikin Light Commercial Product Catalog You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
5 Ton Multi-Positional Goodman Air Handler
Feature	Spec
SKU	ARUF61D14
Weight (in lbs)	155
Brand/Manufacturer	Goodman
UPC	650361147045
Blower Motor	Multi Speed - PSC
Maximum CFM	2,235
Electric Backup Heat Capabilities (Optional)	5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
Refrigerant	R410A
Filter Size	23" x 20"
Liquid Line	3/8"
Suction Line	7/8"
Electrical	208/240 V, 1 Phase, 60 Hz
Max Breaker Size	15 amps
Tonnage	5 Ton
Fuel Type	Electric
Height	58"
Width	24.5"
Depth	21"
Warranty	10 Years with Online Registration
Resources	Goodman Brochure Goodman Installation Instructions Goodman Kit Instructions Goodman Parts Manual Goodman Service Manual Goodman Specifications Goodman Technical Publication Goodman Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
