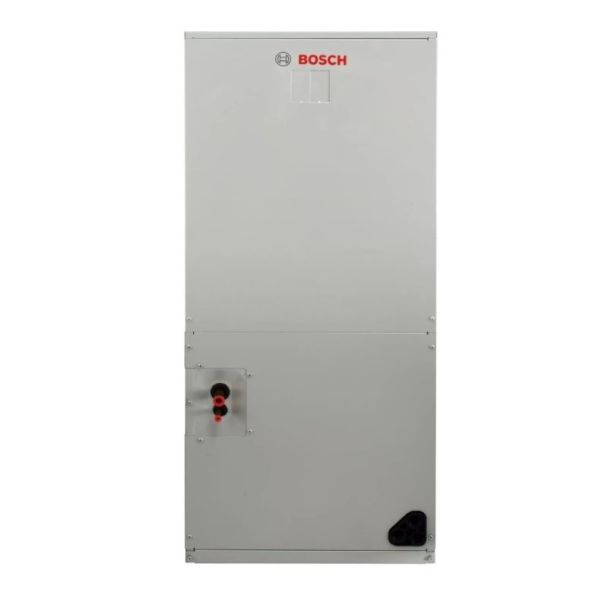

5 Ton Multi-Positional Bosch Air Handler - BVA 2.0 Series

By

Bosch

In stock
Model

BVA-60WN1-M20

ID

161602

Availability: Ships in 2-3 Business Days

Authorized Bosch Dealer

$3,645.00

Free Shipping
Accessories for this product
Customer Reviews

Description

OVERVIEW

The Bosch Inverter Ducted Split BVA 2.0 air handler is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.

QUICK FACTS

  • 5 ton air handler
  • Multi-Speed ECM blower motor
  • Constant Torque Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
  • Factory-installed TXV kit for enhanced energy optimization
  • Compatible with Bosch IDS Plus and IDS Premium series heat pump condensers
  • Sturdy, fully insulated cabinet

5 Tons

The Bosch BVA 2.0 series BVA-60WN1-M20 air handler is rated for an output of 5 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.

Warranty

Bosch BVA 2.0 series offers a 10 year parts and 2 gateway connectivity components warranty on this unit. All other Bosch parts or components installed in the field have a 1 year parts warranty.

Installation and Durability

To make a more versatile unit, Bosch BVA 2.0 series designed the BVA-60WN1-M20 to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, this air handler is designed with an extremely strong, one-piece, painted steel outer casing to protect the unit, and the all-aluminum coil has a lower chance of refrigerant leakage compared to standard copper coils.

Product Specifications

More Information
5 Ton Multi-Positional Bosch Air Handler - BVA 2.0 Series
SKUBVA-60WN1-M20
Weight (in lbs)194.000000
Brand/ManufacturerBosch
Cooling BTU54,500
Heating BTU56,000
Blower MotorConstant Torque Multi Speed ECM Motor
Decibel Level (dBA)68
Horsepower3/4 HP
ConfigurationMulti-Positional
RefrigerantR410A
Filter Size20" x 22"
Liquid Line3/8"
Suction Line7/8"
Electrical208/230v 1 Phase 60Hz
Max Breaker Size15 Amps
Min. Breaker Size5.7 Amps
Tonnage5 Ton
ConnectionSweat
Height54 1/2"
Width22"
Depth24"
Warranty10 Years Parts and 2 Year Gateway Connectivity Components Limited Warranty
