Today's Hours 8am - 11pm estiON Battery Backup Dual Pump System | 1/2 HP | 65 GPM at 10 ft of head | Automatic | Cast Iron | 55ACi Deluxe
By
Ion Technologies
In stock
Model
55ACi Deluxe
ID
240345
Was $5,128.00 Your Low Price Special Price $3,445.00
Product Features
- Dual 1/2 HP Pumps: Alternating pumps provide reliable primary operation.
- 65 GPM Capacity: Delivers high-flow performance at 10 feet of head.
- Digital Inverter Display: Shows system status and operating conditions.
- iON Genesis Controller: Smart sensing with backup level control and alarm.
- Automatic AC Backup: Maintains pumping during power outages.
- 3-Year Warranty: Coverage for added peace of mind.
Reliable Home Protection With Dual Pump System
Maintain sump protection with the iON 55ACi Deluxe, a dual-pump system that combines primary pumping with automatic battery backup. Two 1/2 HP sump pumps alternate during normal operation, while the dual-pump configuration provides continued pumping capability if one pump becomes inoperable.
The system provides up to 65 GPM at 10 feet of total dynamic head. When utility power is unavailable, the system converts stored battery power to 120V AC for continued pump operation.
Battery Requirement: Two 12V deep-cycle AGM batteries are required for backup operation. Batteries are NOT included and must be purchased separately.
Product Features:
- Dual 1/2 HP Pumps: Two identical pumps alternate during normal operation and provide redundancy if either pump becomes inoperable.
- 65 GPM Capacity: Provides up to 65 GPM at 10 feet of total dynamic head.
- Automatic AC Backup: Converts stored 12V DC battery power to 120V AC when utility power is lost.
- Ion Genesis Controller: Manages pump alternation, level sensing, monitoring, and alarm functions.
- High-Capacity Backup: Auxiliary AC power allows the pumps to maintain high pumping capacity during an outage.
Dual Pump Operation
The system includes two identical 1/2 HP Ion BA50i sump pumps with stainless steel housings and cast iron bases. The pumps alternate each cycle during normal operation, distributing operation between the two pumps.
Each pump features a high-efficiency motor with thermal overload protection.
Ion Genesis Smart-Sensing Controller
The Ion Genesis is a programmable controller with solid-state level sensing. It operates and alternates the pumps without moving parts or contact points.
A secondary sensor provides high-water detection and emergency level control. The controller also supports alarms for high water, excessive run time, power loss, and pump failure.
LED indicators display pump, power, and alarm status, while the LCD screen provides equipment data and alarm notifications. The controller also includes plug-and-play pump outlets, an Ion Digital Level Sensor, an Ion Digital High Water Sensor, a remote alarm contact, and a silence/reset function.
Battery Backup System
When utility power is available, the system operates from 120V AC. During a power outage, the inverter converts stored battery power to 120V AC for the pump.
The inverter automatically charges the batteries when the main power supply is restored and bypasses the battery when the pumps are operating from available utility power.
Two 12V deep-cycle AGM batteries are required for backup operation and are NOT included. Two 12V Power+ AGM batteries supply DC power to the system inverter.

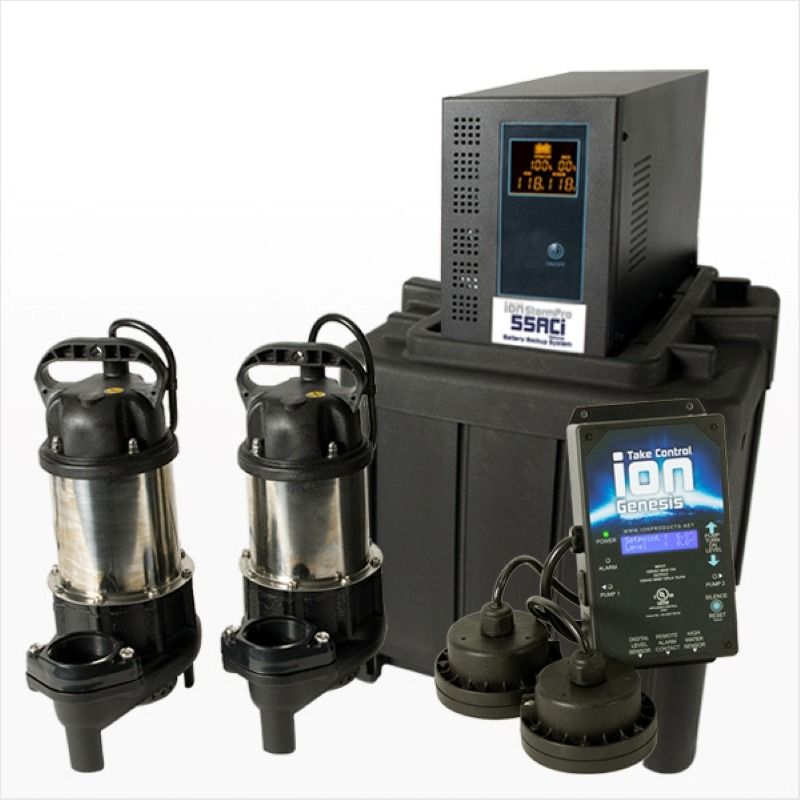

What's Included
- Ion Genesis controller and alarm
- Power inverter/battery charger
- Battery box
- Two Ion BA50i sump pumps
- Level control sensor
- High water alarm sensor with redundant level control
Required but sold separately: Two 12V deep-cycle AGM batteries.
Pump Sizing and Installation
The 55ACi Deluxe is rated for up to 65 GPM at 10 feet of total dynamic head. Actual pumping performance will vary depending on total system head, discharge piping, fittings, and installation conditions.
A minimum basin size of 18 inches in diameter by 24 inches deep is recommended. The system requires two 12V deep-cycle AGM batteries for backup operation. Always verify basin dimensions, discharge piping, electrical supply, battery specifications, and applicable plumbing and electrical codes before installation.
Warranty
The iON 55ACi Deluxe includes a 3-year warranty. For proper installation and dependable long-term performance, verify the required basin dimensions, discharge piping, electrical supply, battery type and capacity, pump configuration, control settings, and applicable local codes before installation. Refer to the manufacturer's operation manual and installation documentation for complete installation, operation, maintenance, and safety requirements.
Advanced Dual-Pump Battery Backup Protection
The iON 55ACi Deluxe is a dual-pump battery backup AC system designed to provide dependable water removal for residential sump applications. Featuring two 1/2 HP stainless steel and cast iron pumps rated at 65 GPM at 10 feet of head, the system provides high-capacity pumping performance during normal operation while maintaining automatic backup capability during power outages.
With two identical pumps that alternate operation each cycle, the 55ACi Deluxe provides added pumping redundancy while helping distribute pump usage. When utility power is lost, the system automatically uses stored battery power to provide auxiliary AC power for continued sump pumping. Two 12V deep-cycle AGM batteries are required and sold separately.
Why Choose the iON 55ACi Deluxe?
Dual 1/2 HP Pump Performance
- Includes two identical 1/2 HP stainless steel and cast iron sump pumps.
- Rated for up to 65 GPM at 10 feet of total dynamic head.
- High-capacity pump design provides dependable water removal for demanding residential sump applications.
- Dual-pump configuration provides added pumping availability for increased system protection.
- Automatically provides auxiliary AC power to operate the sump pumps when utility power is unavailable.
- Helps maintain high pump capacity during battery backup operation.
- Automatically returns to household AC power when utility service is restored.
- Requires two 12V deep-cycle AGM batteries, sold separately.
- Two identical pumps alternate each pumping cycle during normal operation.
- Alternating operation helps distribute pump usage between both pumps.
- Provides continued pumping availability if one pump becomes unavailable.
- Dual-pump design provides an added layer of protection for residential sump applications.
iON Genesis Smart-Sensing Controller
- Smart-sensing controller monitors pump operation and system conditions.
- Solid-state level sensing operates without traditional mechanical contact points.
- Built-in monitoring and alarm functions help identify system conditions that require attention.
- Automatic controls manage alternating pump operation for convenient, hands-free performance.
- Converts stored DC battery power into standard AC power for sump pump operation during power outages.
- Automatically charges the connected batteries when household power is available.
- Uses utility power as the primary source during normal operation to help maintain battery reserve.
- Requires two 12V deep-cycle AGM batteries, sold separately.
- 65 GPM pumping capacity at 10 feet of head provides high-volume water removal.
- Dual-pump configuration provides alternating operation and added system redundancy.
- Designed to provide both everyday pumping and emergency backup capability.
- Backed by a 3-year warranty for added confidence.
