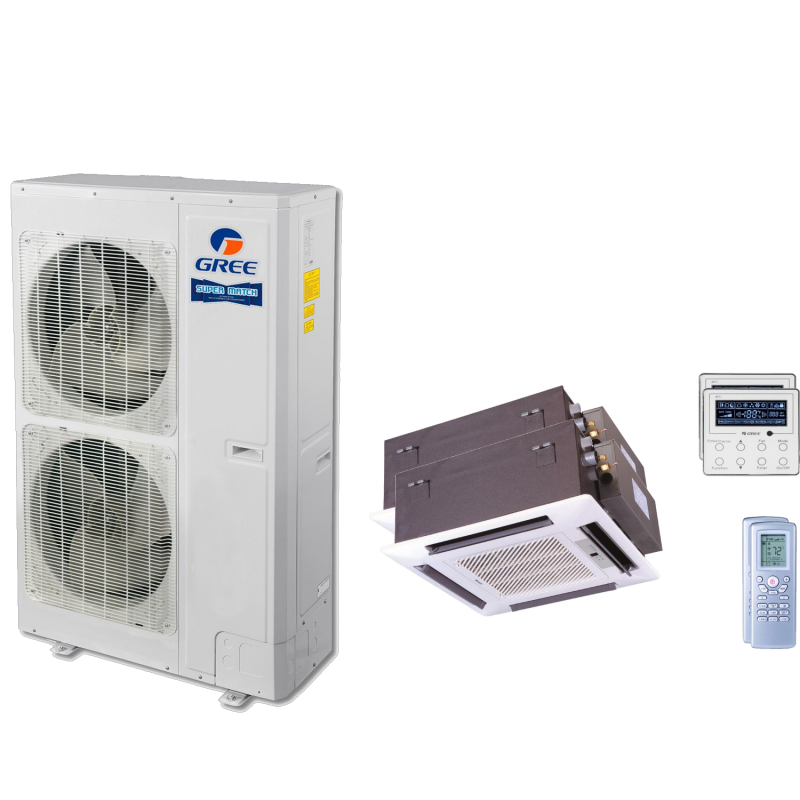

56,000 BTU 15 SEER Dual Zone Ceiling Cassette Gree Heat Pump System 18+24

Name: 56,000 BTU 15 SEER Dual Zone Ceiling Cassette Gree Heat Pump System 18+24
Brand: Gree
SKU: MULTI56HP230V1AO / CAS18HP230V1AC / CAS24HP230V1AC
Price: 191.66 USD
Availability: OutOfStock

Required Fields *

Be the first to review this product

Out of stock

Gree

Out of stock

Model

MULTI56HP230V1AO / CAS18HP230V1AC / CAS24HP230V1AC

54742

Description

The Gree Dual Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 15 SEER, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit.

Gree Cassette Decorative Grille - Large

The Gree decorative grille is required for operation of a Gree 24,000 BTU ceiling cassette. The grille features directional louvers for a 4-way supply of conditioned air while the center of protects the return.

Compatible Indoor Units:

Ceiling Cassette: CAS24HP230V1AC

Product Specs

More Information
56,000 BTU 16 SEER Gree Mini Split Super+ Multi 2-9 Zone Heat Pump Condenser
Feature	Spec
SKU	MULTI56HP230V1AO
Refrigerant Charge	10.91 lbs (Pre-Charged for 98 ft Line Set)
Weight (in lbs)	276
AHRI Certificate Number	7117355 & 10149880
Brand/Manufacturer	Gree
UPC	813919023011
Additional Information	Heat Pump
Additional Information	Maximum Line Set Length: 230'
Additional Information	Maximum System Piping: 476'
Cooling BTU	53,000
Heating BTU	61,416
Decibel Level (dBA)	57 dBA
Energy Star	No
Refrigerant	R410A
HSPF	8.2
SEER1 (Efficiency)	16-17
EER	9.5
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	50 amps
Min. Breaker Size	30 amps
BTU/Tonnage	55,000 BTU/4.5 Ton
Min/Max Outdoor Temp for Heating	-4 °F - 75 °F
Min/Max Outdoor Temp for Cooling	5 °F - 118 °F
Height	53.1"
Width	35.4"
Depth	13.4"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree 18,000 BTU R410A Ceiling Cassette Mini Split Multi Zone Air Handler
Feature	Spec
SKU	CAS18HP230V1BC
Weight (in lbs)	50.6
Brand/Manufacturer	Gree
Replaces	CAS18HP230V1AC
UPC	na
Additional Information	Drain: 1-1/4"
Cooling BTU	14,400
Heating BTU	16,000
Maximum CFM	353 CFM
Decibel Level (dBA)	Indoor Unit: 42-46 dB(A)
Refrigerant	R410A
Liquid Line	liquid_line=1/4"
Suction Line	suction_line=1/2"
Electrical	208/230V 1 Phase 60Hz
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone
Height	9.1"
Width	22.4"
Depth	22.4"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
24,000 BTU Ceiling Cassette Gree Mini Split Multi Zone Air Handler
Feature	Spec
SKU	CAS24HP230V1BC
Weight (in lbs)	77
Brand/Manufacturer	Gree
Replaces	CAS24HP230V1AC
UPC	na
Additional Information	Drain: 1-1/4"
Cooling BTU	22,800
Heating BTU	27,400
Maximum CFM	694 CFM
Decibel Level (dBA)	Indoor Unit: 45-49 dB(A)
Refrigerant	R410A
Liquid Line	liquid_line=3/8"
Suction Line	suction_line=5/8"
Electrical	208/230V 1 Phase 60Hz
BTU/Tonnage	24,000 BTU/2 Ton
Mini Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone
Height	10.2"
Width	33.1"
Depth	33.1"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree Branch Box - 2 Zone (FXA2A-D)
Feature	Spec
SKU	RFX12A
Weight (in lbs)	18
Brand/Manufacturer	Gree
UPC	na
Additional Information	Condenser-Side Liquid Line: 3/8"
Additional Information	Condenser-Side Suction Line: 5/8"
Liquid Line	1/4" (2)
Suction Line	3/8" (2)
Height	12.3"
Width	7.2"
Depth	20.9"
Warranty	5 year Limited Parts Warranty
Resources	Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree Branch Box - 3 Zone (FXA3A-D)
Feature	Spec
SKU	RFX13A
Weight (in lbs)	18
Brand/Manufacturer	Gree
UPC	na
Additional Information	Condenser-Side Liquid Line: 3/8"
Additional Information	Condenser-Side Suction Line: 5/8"
Liquid Line	1/4" (3)
Suction Line	3/8" (3)
Height	12.3"
Width	7.2"
Depth	20.9"
Warranty	5 year Limited Parts Warranty
Resources	Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree Cassette Decorative Grille - Small
Feature	Spec
SKU	CASGRILLE1SM
Weight (in lbs)	8
Brand/Manufacturer	Gree
UPC	na
Height	2"
Width	25.6"
Depth	25.6"
Engine Type	N/A
Warranty	5 year Limited Parts Warranty
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Gree Cassette Decorative Grille - Large
Feature	Spec
SKU	CASGRILLE1LG
Weight (in lbs)	10
Brand/Manufacturer	Gree
UPC	na
Height	2.4"
Width	37.4"
Depth	37.4"
Warranty	5 year Limited Parts Warranty
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews

Accessories

FAQ's

Customer Questions

Why Choose Gree?

For over 20 years, Gree has been manufacturing HVAC products for many of the world's most respected brands. They are the trusted manufacture when it comes to high quality products that push the limits of features and designs. Using their extensive experience, Gree is now creating its own brand of products to provide consumers with their proven quality and reliability.
