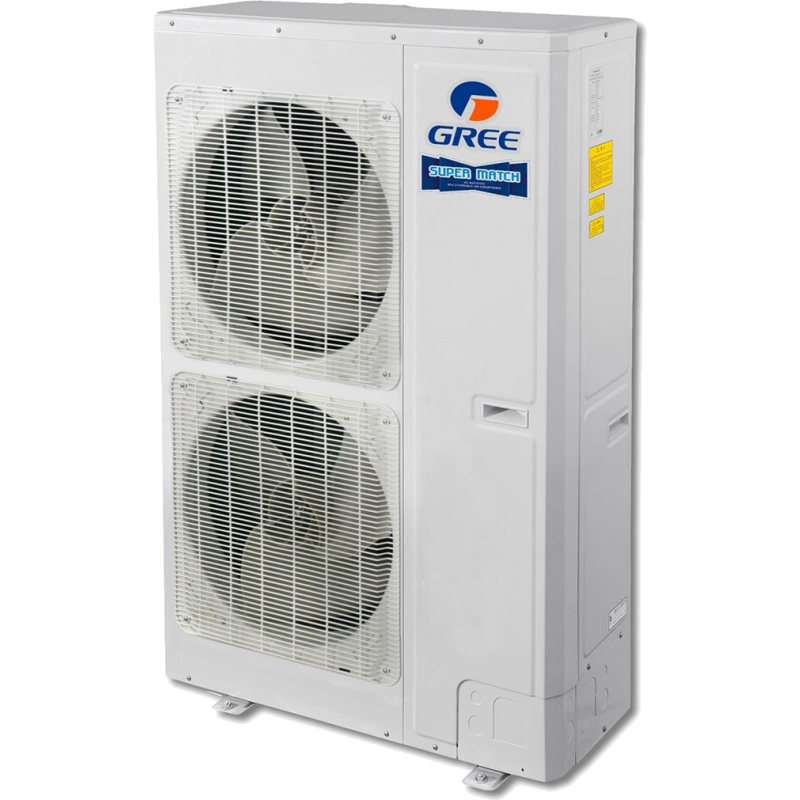

56,000 BTU 16 SEER Gree Mini Split Super+ Multi 2-9 Zone Heat Pump Condenser

The Gree Super+ Multi multi zone inverter heat pump operates with lower power consumption and lower noise, and provides you with more comfort. Advanced G-10 inverter technology ensures stable operation and expands operation to up to 9 zones. The condenser also runs at lower noise levels than other mini split condensers. The unit uses eco-friendly R-410A refrigerant, an optimized fan with anti-corrosion coating, and a brushless fan motor.

The Super+ Multi condenser is AHRI Certified and comes with a 5-year limited warranty.

Features:

• Minimum 2 connected zones
• Maximum 9 connected zones
• Branch boxes are required for all installations
  • 2 zone branch box RFX12A
  • 3 zone branch box RFX13A
  • Y-Connector LN01300110 required with use of 2 or more branch boxes
• Minimum 18,000 BTU connected capacity
• Maximum 81,000 BTU connected capacity
• See submittal for specific combinations

Compatible Indoor Units:

Wall Mounted

• Connoisseur Series Vireo+: VIR09HP230V1BH, VIR12HP230V1BH, VIR18HP230V1BH, VIR24HP230V1BH
• Tech Series Sapphire: SAP09HP230V1AH, SAP12HP230V1AH, SAP18HP230V1AH, SAP24HP230V1AH

Ducted

• Slim Duct: DUCT09HP230V1AD, DUCT12HP230V1AD, DUCT18HP230V1AD, DUCT24HP230V1AD
• High Static: DUCT09HP230V1BD, DUCT12HP230V1BD, DUCT18HP230V1BD, DUCT24HP230V1BD

Ceiling Cassette

• CAS12HP230V1AC, CAS18HP230V1AC, CAS24HP230V1AC

Universal Floor/Ceiling Suspended

• FLR09HP230V1AF, FLR12HP230V1AF, FLR18HP230V1AF, FLR24HP230V1AF

Floor Mounted Mini-Console:

• CONS09HP230V1AF, CONS12HP230V1AF, CONS18HP230V1AF
