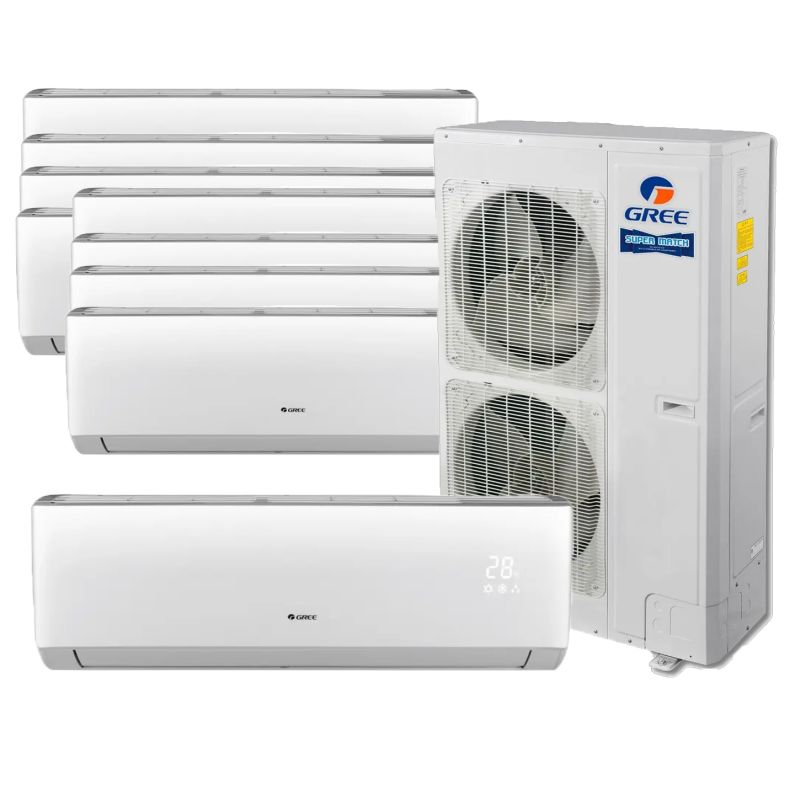

56,000 BTU 16 SEER Nine Zone Wall Mounted Gree Heat Pump System 9+9+9+9+9+9+9+9+9

We Price Match!

Give our sales team a call at

123.123.1233 (Toll Free) or

123.111.2222 (International) and we'll

match any competitor's price.

Chat With Us!

By
Gree
Model
MULTI56HP230V1AO / 9-VIR09HP230V1BH
ID
55227
Availability: Ships in 2-4 Business Days
Gree

Authorized Gree Dealer

As low as $7,919.89

Bread Checkout

Free Shipping

Required Fields *

Customize 56,000 BTU 16 SEER Nine Zone Wall Mounted Gree Heat Pump System 9+9+9+9+9+9+9+9+9
56,000 BTU 16 SEER Gree Mini-Split Super+ Multi 2-9 Zone Heat Pump Condenser   + $4,533.59 View Item
56,000 BTU 16 SEER Gree Mini-Split Super+ Multi 2-9 Zone Heat Pump Condenser   + $4,533.59
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27 View Item
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27 View Item
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27 View Item
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27 View Item
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27 View Item
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27 View Item
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27 View Item
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27 View Item
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27 View Item
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler   + $279.27
View Item
View Item
View Item
Gree Branch Box Y Connector   + $83.41 View Item
Gree Branch Box Y Connector   + $83.41
56,000 BTU 16 SEER Nine Zone Wall Mounted Gree Heat Pump System 9+9+9+9+9+9+9+9+9

$7,919.89

Accessories for this product

The Gree Nine Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 16 SEER, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit.

56,000 BTU 16 SEER Gree Mini-Split Super+ Multi 2-9 Zone Heat Pump Condenser

The Gree Super+ Multi multi zone inverter heat pump operates with lower power consumption and lower noise, and provides you with more comfort. Advanced G-10 inverter technology ensures stable operation and expands operation to up to 9 zones. The condenser also runs at lower noise levels than other mini split condensers. The unit uses eco-friendly R-410A refrigerant, an optimized fan with anti-corrosion coating, and a brushless fan motor.

The Super+ Multi condenser is AHRI Certified and comes with a 5-year limited warranty.

Features:

  • Minimum 2 connected zones
  • Maximum 9 connected zones
  • Branch boxes are required for all installations
    • 2 zone branch box RFX12A
    • 3 zone branch box RFX13A
    • Y-Connector LN01300110 required with use of 2 or more branch boxes
  • Minimum 18,000 BTU connected capacity
  • Maximum 81,000 BTU connected capacity
  • See submittal for specific combinations

Compatible Indoor Units:

Wall Mounted

  • Connoisseur Series Vireo+: VIR09HP230V1BH, VIR12HP230V1BH, VIR18HP230V1BH, VIR24HP230V1BH
  • Tech Series Sapphire: SAP09HP230V1AH, SAP12HP230V1AH, SAP18HP230V1AH, SAP24HP230V1AH

Ducted

  • Slim Duct: DUCT09HP230V1AD, DUCT12HP230V1AD, DUCT18HP230V1AD, DUCT24HP230V1AD
  • High Static: DUCT09HP230V1BD, DUCT12HP230V1BD, DUCT18HP230V1BD, DUCT24HP230V1BD

Ceiling Cassette

  • CAS12HP230V1AC, CAS18HP230V1AC, CAS24HP230V1AC

Universal Floor/Ceiling Suspended

  • FLR09HP230V1AF, FLR12HP230V1AF, FLR18HP230V1AF, FLR24HP230V1AF

Floor Mounted Mini-Console:

  • CONS09HP230V1AF, CONS12HP230V1AF, CONS18HP230V1AF
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler

The Gree Vireo+ combines cutting edge technology and a minimalist design. It has been designed to blend into any living space, with a slim cabinet that can be installed onto the wall. The wall mounted unit has an easy-to-read display which gives information about the operating mode. With four speeds, the unit can provide maximum comfort while still operating quietly. Other smart technology includes an I Feel Mode, which adjusts airflow and temperature for maximum comfort, and a sleep mode which saves energy while automatically adjusting the room's temperature. You also have the option of upgrading your Vireo+ to Universal WIFI, which enables you to control the comfort of your home from your smartphone.

The Gree Vireo+ is AHRI Certified and comes with a 5-year limited warranty.

Features:

  • Heating, Cooling, Dry, and Fan modes
  • Polymeric air filters
  • I Feel mode
  • Privacy lock mode
  • Sleep mode
  • Fahrenheit °F / Celsius °C
  • Handheld IR remote control included
Gree Branch Box - 2 Zone (FXA2A-D)

The Gree 2 zone branch box is used to add one or two additional zones to a 48,000 or 56,000 BTU multi-zone Gree condenser. The box can be used alone for a two zone system. If installing two branch boxes, one LN01300110 Y-conencter will be required to split the line set two ways. If using three branch boxes, two LN01300110 Y-connectors will be required to split the lines in two a second time.

Compatible Outdoor Units:

  • Super+ Multi: MULTI48HP230V1AO, MULTI56HP230V1AO
  • Super+ Multi Ultra: MULTIU48HP230V1BO
Gree Branch Box - 3 Zone (FXA3A-D)

The Gree 3 zone branch box is used to add one to three additional zones to a 48,000 or 56,000 BTU multi-zone Gree condenser. The box can be used alone for a three zone system. If installing two branch boxes, one LN01300110 Y-conencter will be required to split the line set two ways. If using three branch boxes, two LN01300110 Y-connectors will be required to split the lines in two a second time.

Compatible Outdoor Units:

  • Super+ Multi: MULTI48HP230V1AO, MULTI56HP230V1AO
  • Super+ Multi Ultra: MULTIU48HP230V1BO
Gree Branch Box Y Connector

The Gree Y-splitter is used one installations with two or three branch boxes on a 48,000 or 56,000 BTU multi-zone Gree condenser.If installing two branch boxes, one LN01300110 Y-conencter will be required to split the line set two ways. If using three branch boxes, two LN01300110 Y-connectors will be required to split the lines in two a second time.

Compatible Outdoor Units:

  • Super+ Multi: MULTI48HP230V1AO, MULTI56HP230V1AO
  • Super+ Multi Ultra: MULTIU48HP230V1BO
More Information
56,000 BTU 16 SEER Gree Mini-Split Super+ Multi 2-9 Zone Heat Pump Condenser
Weight (in lbs) 276.000000
AHRI Certificate Number 7117355 & 10149880
Manufacturer Gree
Additional Information Heat Pump
Additional Information Maximum Line Set Length: 230'
Additional Information Maximum System Piping: 476'
HSPF 8.2
Cooling BTU 53,000
Heating BTU 61,416
Decibel Level (dBA) Outdoor Unit: 57 dB(A)
Energy Star No
Refrigerant R410A
Refrigerant Charge Pre-charged for: 98'
SEER 16
EER 9.5
Compressor Type Rotary
Liquid Line 3/8" (1)
Suction Line 5/8" (1)
Electrical 208/230V 1 Phase 60Hz
Phase Single Phase
Max Breaker Size 50 amps
Min. Breaker Size 30 amps
Tonnage 5 Ton
Min/Max Outdoor Temp for Heating -4F - 75F
Min/Max Outdoor Temp for Cooling 5F - 118F
Height 53.1"
Width 35.4"
Depth 13.4"
Warranty 5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
9,000 BTU Wall Mount Gree Mini-Split Vireo+ Single Zone Air Handler
Weight (in lbs) 27.600000
Manufacturer Gree
Controller Wireless Included
Additional Information Drain: 5/8"
Cooling BTU 9,000
Heating BTU 9,000
Maximum CFM 171-377 CFM
Decibel Level (dBA) Indoor Unit: 26-43 dB(A)
Refrigerant R410A
EER 0
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230V 1 Phase 60Hz
Phase Single Phase
Tonnage 0.75 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Single Zone
Height 11.4"
Width 33.4"
Depth 8.2"
Warranty 5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
Gree Branch Box - 2 Zone (FXA2A-D)
Weight (in lbs) 18.000000
Manufacturer Gree
Additional Information Condenser-Side Liquid Line: 3/8"
Additional Information Condenser-Side Suction Line: 5/8"
Liquid Line 1/4" (2)
Suction Line 3/8" (2)
Height 12.3"
Width 7.2"
Depth 20.9"
Warranty 5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
Gree Branch Box - 3 Zone (FXA3A-D)
Weight (in lbs) 18.000000
Manufacturer Gree
Additional Information Condenser-Side Liquid Line: 3/8"
Additional Information Condenser-Side Suction Line: 5/8"
Liquid Line 1/4" (3)
Suction Line 3/8" (3)
Height 12.3"
Width 7.2"
Depth 20.9"
Warranty 5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
Gree Branch Box Y Connector
Weight (in lbs) 4.000000
Manufacturer Gree
Height 2"
Width 4"
Depth 12.5"
Warranty 5 year Limited Parts Warranty
Safety Information PROPOSITION 65 WARNING
