Today's Hours 8am - 11pm est6-Zone Universal (4H/2C) Zone Panel Kit
Ships in 2-3 Business Days
By
iO HVAC Controls
In stock
Model
ZP6-ESP-KIT
ID
84579
Was $826.61 Your Low Price Special Price $767.57
The ZP6-ESP-KIT is a 4-to-6-zone, two position forced air zone control panel. The panel can be used with single state, multi-stage, heat pump or dual fuel equipment. There are many control options as well as 4 stages of heating and 2 stages of cooling with this incredibly flexible application zone panel.
Features

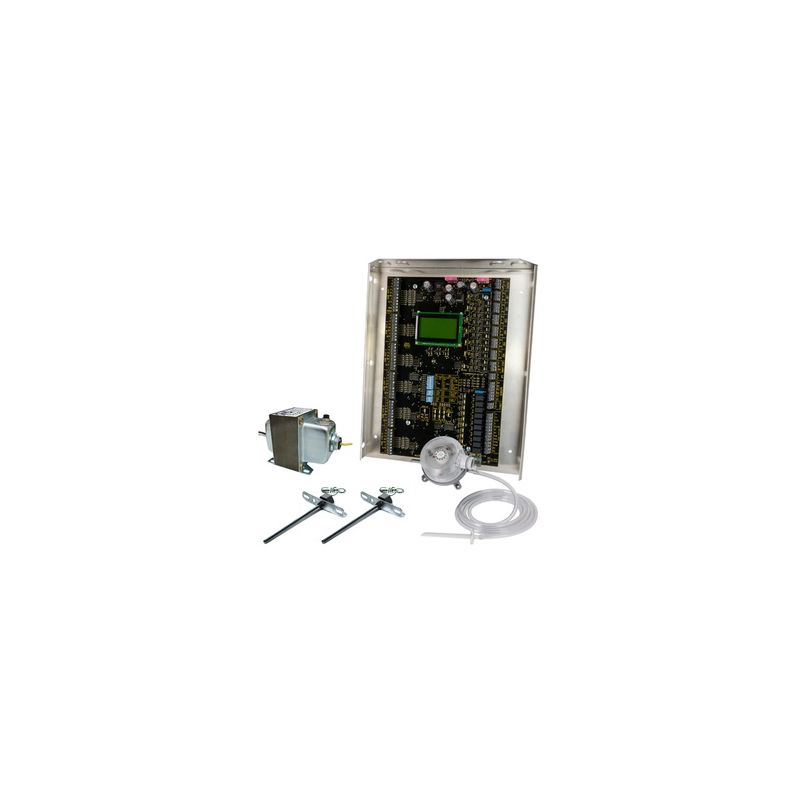

- Items Included: Panel, Static Pressure Sensor, 2 Duct Temperature Sensors, and 75va Transformer
- Adjustable high and low balance point
- Works with 2 or 3 wire zone dampers
- Twenty minute time share option
- (De)Humidification pass-throughs
- Optional night thermostat
- Purge cycle option
The ZP6-ESP has a built in static pressure control, meaning you will no longer need a bypass damper when a 3-wire, 24V damper is used. 18-gauge wire is used for all equipment connections so there are no mix-ups and less to handle. With an operating temperature range of -40° to 150°, this zone panel is durable and can handle many different types of environments.
As iO HVAC Controls stands behind their products, a 10 year warranty is included.
