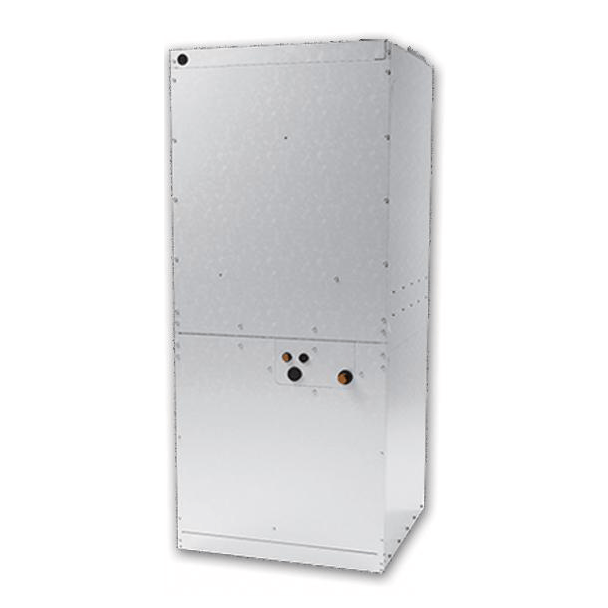

7.5 Ton Upflow/Horizontal Daikin Commercial Air Handler 208/230v

By

Daikin

Model

DAX09043

ID

21906

Availability: Call for Availability
Daikin

Authorized Daikin Dealer

$4,299.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

The Daikin commercial indoor air handler is made of heavy gauge, reinforced galvanized steel as well as insulated with a fiberglass blanket for temperature control as well as noise level dampening. All models feature a factory installed thermal expansion valve. All models can also be converted from 208/230v to 460v or vice versa.

Standard Features

  • Upflow or horizontal (left side) installation positions in 7½ and 10-ton cooling only or heat pump applications
  • Circuited for use with one (1) 7½-ton or one (1) 10-ton cooling-only or heat pump system. Also circuited for use with two (2) 4-ton or two (2) 5-ton cooling-only units
  • TXV Control; Units have two (2) thermal expansion valves
  • DAT units feature a 2-speed blower motor
  • Draw-thru centrifugal blower is belt driven for quiet, efficient operation
  • Copper tube/aluminum fin coils
  • Horizontal and vertical condensate pans
  • AHRI Certified; ETL Listed

Cabinet Features

  • Heavy-gauge, reinforced, galvanized-steel cabinet
  • Fully insulated with fiberglass blanket
  • Horizontal and vertical condensate pans
  • Built-in filter rack (2" filter included)
  • Entry on top of panel for both low and high voltage
  • Removable access panels make servicing of unit faster and easier

Product Specifications

More Information
7.5 Ton Upflow/Horizontal Daikin Commercial Air Handler 208/230v
SKUDAX09043
Weight (in lbs)430.000000
Brand/ManufacturerDaikin
ReplacesDAT09043
Cooling BTU90,000 BTU
Blower MotorMulti Speed - PSC
Drive TypeBelt
Maximum CFM3000
RefrigerantR410A
Liquid Line3/8" (2)
Suction Line1 1/8" (2)
Electrical208 / 240 V. 3 Phase 60 Hz
PhaseThree Phase
Min. Breaker Size7.5
Tonnage7.5 Ton
Height60.5"
Width48.25"
Depth24"
Warranty10 Years with Online Registration
