AHRI Number:206315634

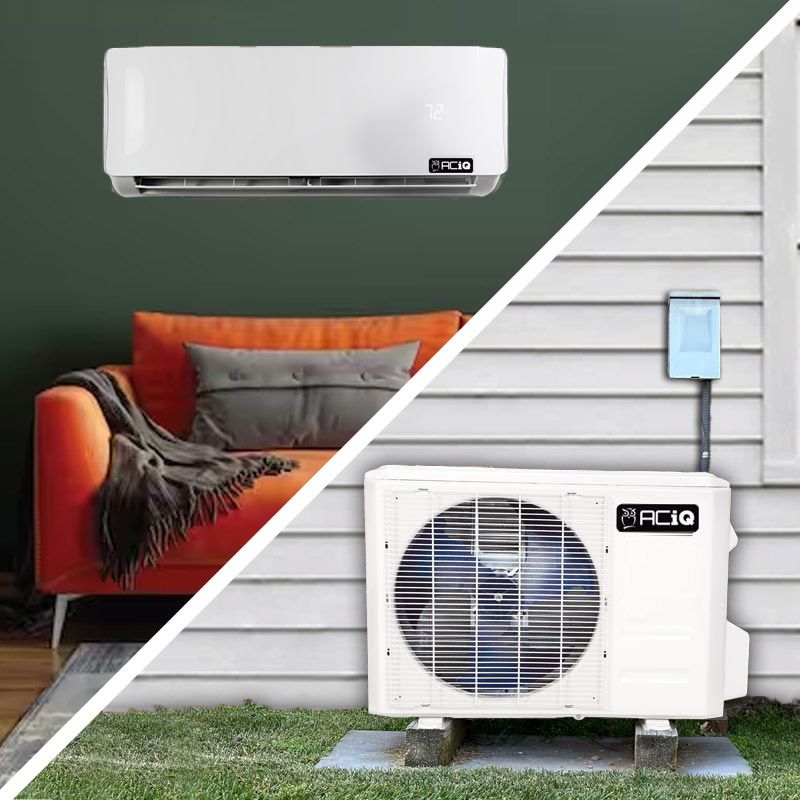

ACiQ's mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Single zone systems are the perfect choice for a basement or garage conversion, or any single space in your home that needs a boost.
The ACiQ Single Zone series ACiQ-24Z-HP230 heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACiQ-24Z-HP230 uses as little power as possible without sacrificing comfort. That's why we say that ACiQ brings intelligence to your heating and cooling needs.
At a rated capacity of 24,000 BTU, the output of the ACiQ-24Z-HP230 when paired with a matching air handler can easily cover an average sized room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACiQ-24Z-HP230 has an efficiency of 17 SEER. With such a high system SEER rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page.You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling. Base pan heaters come standard on every multi-zone condenser.
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACiQ-24W-HP230 single zone air handler can handle medium spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.
The ACiQ-24W-HP230B air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.
ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
Traditional wall-mounted air handlers are the most popular ductless choice due to low cost and ease of installation. Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration. Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver. Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.
In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 18 1/4" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:| 24,000 BTU ACiQ Single Zone Condenser | |
|---|---|
| Refrigerant Charge | 25' |
| Weight (in lbs) | 104.500000 |
| AHRI Certificate Number | 203175659 |
| Brand/Manufacturer | ACiQ |
| HSPF | 9.5 |
| HSPF2 | 8.6 |
| Cooling BTU | 24000 BTU |
| Heating BTU | 24000 BTU |
| Decibel Level (dBA) | 60 |
| Electric Heat | Heat Pump |
| Energy Star | No |
| Refrigerant | R410A |
| SEER (Efficiency) | 16-17 |
| SEER2 (Efficiency) | 18 |
| EER | 9.5 |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 30 |
| Min. Breaker Size | 19 |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 26.50" |
| Width | 35.04" |
| Depth | 13.46" |
| Warranty | 7 year parts, 12 year compressor with online registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 24,000 BTU ACiQ Single Zone Air Handler w/ WiFi | |
| Weight (in lbs) | 38.580000 |
| Brand/Manufacturer | ACiQ |
| Cooling BTU | 24000 BTU |
| Heating BTU | 24000 BTU |
| Maximum CFM | 706 |
| Decibel Level (dBA) | 48 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 year parts, 12 year compressor with online registration" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet | |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 25' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING |
| Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet | |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 25' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING |
| Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet | |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING |
| Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet | |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 35' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING |
| Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet | |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING |
| Diversitech E Lite Equipment Pad 18" x 38" x 3" | |
| Weight (in lbs) | 16.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING |
| Wall Mount Bracket for Mini Split Systems | |
| Weight (in lbs) | 9.200000 |
| Brand/Manufacturer | Online Supply |
| Length | 19 3/4" |
| Height | 20" |
| Width | 6" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
