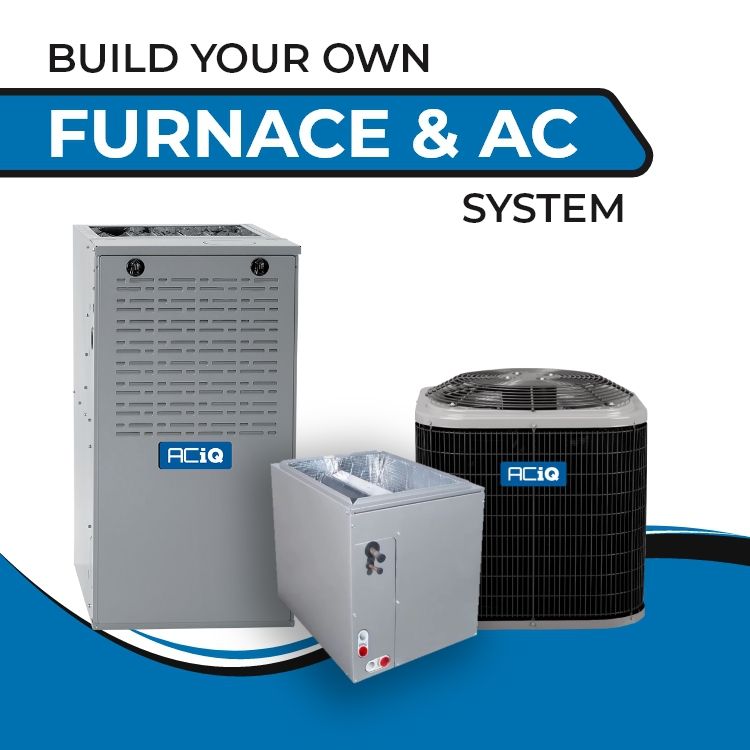

ACiQ Build Your Own Furnace & AC System

By

ACiQ

In stock
Model

ACiQ BYO Furnace-AC-Coil

ID

162131

Availability: Built To Order

Authorized ACiQ Dealer

$2,375.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

HVAC Shopping Made Easier

Every home and business has unique requirements and preferences for heating and cooling solutions. Factors such as square footage, technical specifications, installation process, climate conditions, and more influence your decision-making process. We understand that navigating through these details can be overwhelming for customers, which is why we introduced our ACiQ Build-Your-Own Furnace & AC System. Simply answer a few straightforward questions about your needs, and watch as the price updates automatically. With just one click, you can make your purchase. Following that, our expert sales team will match your order with the most suitable, high-quality system from our ready-to-ship inventory.

What We Need From You

The questions to answer are the same standard questions you may be asked by a contractor. Please note that not every combination may be available. All ACiQ furnaces are multi-positional, meaning that they can be installed in upflow, downflow, and horizontal orientations, so furnace airflow direction does not need to be specified. If there are any issues with the selections you have provided, we will reach out to you to ensure that the system you receive is suitable for your home. For more information on each question, please see below:

Furnace AFUE/Efficiency

AFUE stands for "Annual Fuel Utilization Efficiency", which basically means that its a measure of how well your furnace will produce heat. If a furnace is rated for 40,000 BTUs and has an efficiency of 80%, then that means 80% of the fuel used produces 32,000 BTUs of heat (40,000 X 80% AFUE) per hour and the remaining 20% is lost through your venting as combustion byproducts.

Make sure you know what type of furnace your house is equipped for. An 80% Furnace will use a metal flue for venting gases out of your house, while a 90% or Higher Furnace will use plastic or PVC vents instead.

Furnace BTUs

BTUs (British Thermal Units) measure how much heat a furnace can produce. It is important that you choose the correct furnace size so your whole house can be efficiently and comfortably warmed. BTUs scale upward with house size, but please note that other factors may affect what size furnace you need.

  • 40,000 BTUs - Ideal for small houses
  • 60,000 BTUs - Ideal for small to medium size houses
  • 80,000 BTUs - Ideal for medium houses
  • 100,000 BTUs - Ideal for medium to large size houses
  • 120,000 BTUs - Ideal for large houses

Furnace Cabinet Width

Modern furnaces have a standardized cabinet width of either 14", 17.5", 21", and 24.5". Simply measure the width of the face of your current furnace to determine what width you need.

Condenser Tonnage

An air conditioner's tonnage is a measure of how much cool air it can produce. Similarly to furnace BTUs, an air conditioner's tonnage scales upward with house sizes. Please notes that other factors may affect the ideal tonnage your house needs.

  • 1.5 and 2 Ton - Ideal for small houses
  • 2.5 Ton - Ideal for small to medium size houses
  • 3 and 3.5 Ton - Ideal for medium houses
  • 4 Ton - Ideal for medium to large size houses
  • 5 Ton - Ideal for large houses

Optional Upgrades

These options are not mandatory for any specific type of home. They are provided for those that want greater efficiency and more precise control over their heating and cooling system.

  • Two Stage Furnace - A two stage furnace comes with a second "middle" stage between being simply off and fully on. This second stage is perfect for those that don't want their furnace on at full blast when they do not need as much heat.
  • Two Stage Condenser - Similar to a two stage furnace, a two stage condenser comes with a "middle" stage when the full cooling output is not needed.
  • Modulating 97% AFUE Furnace - ACiQ's top-of-the line furnaces are 97% efficient, one of the highest efficiency ratings in the market. Each one comes equipped with modulating burner stage capabilities, meaning that they have infinite burner stage settings so you can control exactly how much heat you want.
    • Note: When choosing this option, please leave the Furnace AFUE/Efficiency option set to 80% to prevent being overcharged.

Product Specifications

More Information
ACiQ Build Your Own Furnace & AC System
SKUACiQ BYO Furnace-AC-Coil
Weight (in lbs)130.000000
Brand/ManufacturerACiQ
