ADP 5" Horizontal Vent Kit - Category 3

The Z-Vent 5" Universal Appliance Adapter is an essential component for connecting tankless water heaters, boilers, or commercial boilers to Z-Flex or Z-Vent AL29-4C stainless steel vent pipes. Compatible with most units, this adapter requires a single-to-double-wall adapter for double-wall installations. It features female connections on both ends and is constructed from Category III stainless steel, ensuring compliance with UL 1738 and AL29-4C safety standards.

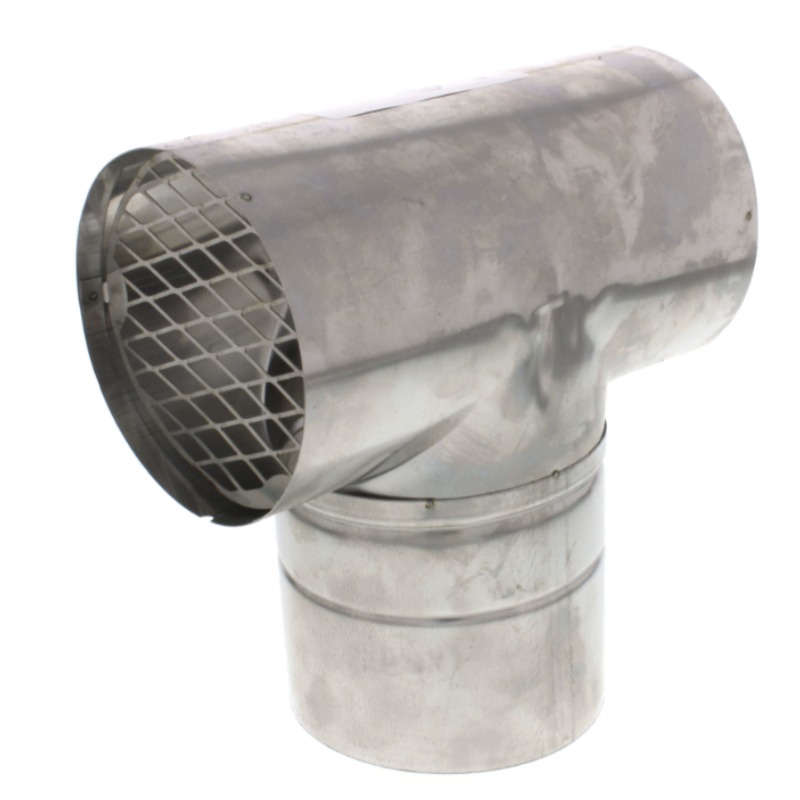

The Z-Flex Z-Vent 5" Horizontal Termination Coupling is a high-quality venting solution designed for efficient and safe termination of horizontal vents. This coupling is made from durable AL29-4C stainless steel, suitable for both positive and negative pressure applications. It is UL tested and listed to UL1738/S636, making it CAT II, III, and IV venting approved. The design includes a screen to prevent debris from entering the vent, ensuring optimal performance and safety. Ideal for residential and commercial use, the Model 2SVSTTX05 provides a reliable and secure connection for your venting system.

The 3-inch wall thimble is used for many single wall pipe, horizontal vent exhaust applications. This 3-inch wall thimble is a rigid pipe, using Category III Stainless Steel. The 3-inch wall thimble is adjustable from 4" to 7" and has dimensions of 8" x 8".

• Material: Category III stainless steel
• Size: 3-inch diameter, adjustable from 4" to 7" wall thickness

The Z-FLEX 2SVEPWC0501 Single Wall Vent Pipe, featuring a diameter of 5 inches and a length of 12 inches, is expertly crafted to ensure safe and efficient venting for gas appliances. Constructed from high-quality stainless steel, this vent pipe provides exceptional durability and resistance to corrosion, even in high-temperature environments.

Features:

• Gasketed connections for enhanced sealing
• Fusion-welded pipe seams for superior strength
• No sealant required, eliminating cure time and reducing callbacks
• Airtight seams with a smooth finish for a better fit
• Metallic special gas vent with a single wall male end that can be cut to length on-site, saving both time and costs
• Available in single and double wall configurations, manufactured in diameters from 3" to 24"

This vent pipe is available in diameters from 3" to 24" and standard lengths up to 10 ft (for 3" and 4" diameters only), and it can be cut to the desired length. The female end of each Z-VENT component features a Double Fail Safe self-sealing gasket. Ensure that all components are inspected for gasket integrity during shipping. Proper positioning of gaskets is crucial to prevent flue gas leaks, which could lead to carbon monoxide poisoning. Installation should adhere to the manufacturer's instructions for optimal safety.

The Z-FLEX 2SVEPWC0502 Single Wall Vent Pipe, featuring a diameter of 5 inches and a length of 24 inches, is expertly crafted to ensure safe and efficient venting for gas appliances. Constructed from high-quality stainless steel, this vent pipe provides exceptional durability and resistance to corrosion, even in high-temperature environments.

Features:

• Gasketed connections for enhanced sealing
• Fusion-welded pipe seams for superior strength
• No sealant required, eliminating cure time and reducing callbacks
• Airtight seams with a smooth finish for a better fit
• Metallic special gas vent with a single wall male end that can be cut to length on-site, saving both time and costs
• Available in single and double wall configurations, manufactured in diameters from 3" to 24"

This vent pipe is available in diameters from 3" to 24" and standard lengths up to 10 ft (for 3" and 4" diameters only), and it can be cut to the desired length. The female end of each Z-VENT component features a Double Fail Safe self-sealing gasket. Ensure that all components are inspected for gasket integrity during shipping. Proper positioning of gaskets is crucial to prevent flue gas leaks, which could lead to carbon monoxide poisoning. Installation should adhere to the manufacturer's instructions for optimal safety.
