ADP 6" Horizontal Vent Kit - Category 3

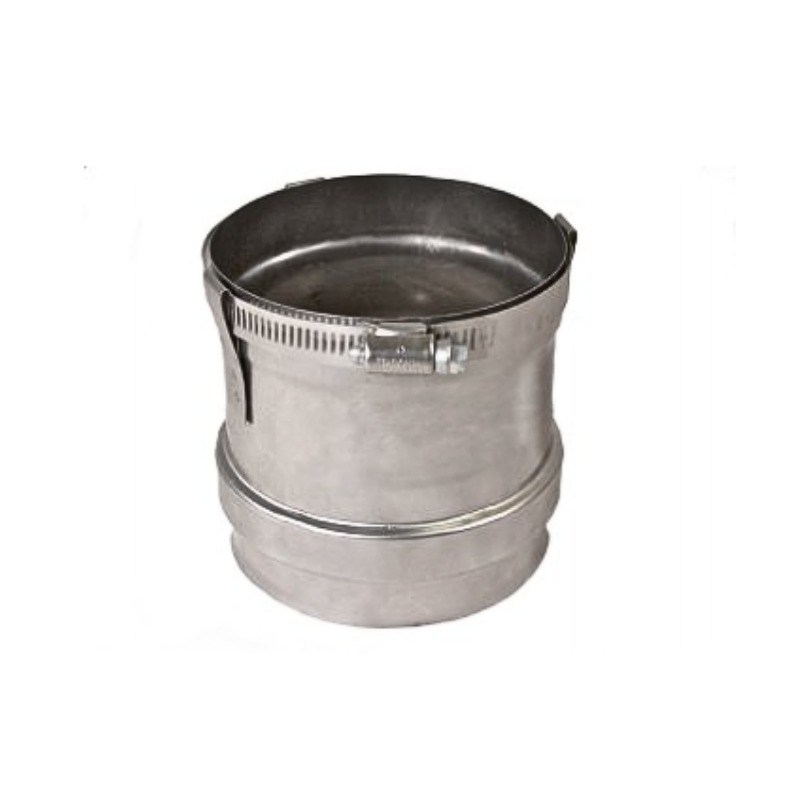

The Z-Flex 6" Appliance Adapter 2SVSA06 is a high-quality venting component designed to connect your appliance to the venting system securely. This adapter is made from durable AL29-4C stainless steel, suitable for both positive and negative pressure applications. It is UL tested and listed to UL1738/S636, ensuring it meets the highest safety standards for CAT II, III, and IV venting. The Model SVALUH4 is ideal for use with a variety of appliances, providing a reliable and efficient connection. Trust Z-Flex for superior quality and performance in your venting solutions.

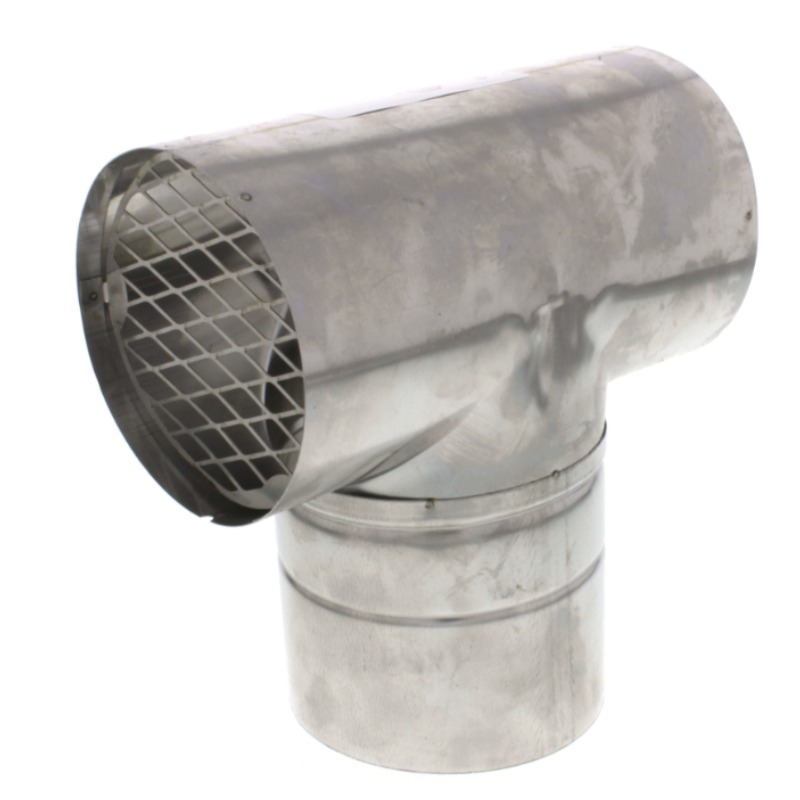

The Z-Flex Z-Vent 5" Horizontal Termination Coupling is a high-quality venting solution designed for efficient and safe termination of horizontal vents. This coupling is made from durable AL29-4C stainless steel, suitable for both positive and negative pressure applications. It is UL tested and listed to UL1738/S636, making it CAT II, III, and IV venting approved. The design includes a screen to prevent debris from entering the vent, ensuring optimal performance and safety. Ideal for residential and commercial use, the Model 2SVSTTX06 provides a reliable and secure connection for your venting system.

The 2SVWT06 Z-Vent Wall Thimble (4-7 inch adjustable range) is an essential component for venting systems, designed to ensure safe and efficient passage of 6-inch diameter vent pipes through combustible walls. This versatile thimble fits wall thicknesses from 4 to 7 inches and is compatible with 6-inch Single Wall vent pipes. Constructed from durable Category III stainless steel, it is UL 1738 rated, ensuring high safety standards and longevity. The thimble features gasketed connections and fusion-welded seams for an airtight seal, eliminating the need for additional sealant and reducing installation time. Ideal for horizontal venting applications in appliances such as tankless water heaters and boilers, it maintains proper clearance from combustible materials, enhancing both safety and efficiency in residential and commercial installations.

The Z-FLEX 2SVEP0601 Single Wall Vent Pipe, featuring a diameter of 6 inches and a length of 12 inches, is expertly crafted to ensure safe and efficient venting for gas appliances. Constructed from high-quality stainless steel, this vent pipe provides exceptional durability and resistance to corrosion, even in high-temperature environments.

Features:

• Gasketed connections for enhanced sealing
• Fusion-welded pipe seams for superior strength
• No sealant required, eliminating cure time and reducing callbacks
• Airtight seams with a smooth finish for a better fit
• Metallic special gas vent with a single wall male end that can be cut to length on-site, saving both time and costs
• Available in single and double wall configurations, manufactured in diameters from 3" to 24"

This vent pipe is available in diameters from 3" to 24" and standard lengths up to 10 ft (for 3" and 4" diameters only), and it can be cut to the desired length. The female end of each Z-VENT component features a Double Fail Safe self-sealing gasket. Ensure that all components are inspected for gasket integrity during shipping. Proper positioning of gaskets is crucial to prevent flue gas leaks, which could lead to carbon monoxide poisoning. Installation should adhere to the manufacturer's instructions for optimal safety.

The Z-FLEX 2SVEP0602 Single Wall Vent Pipe, featuring a diameter of 6 inches and a length of 24 inches, is expertly crafted to ensure safe and efficient venting for gas appliances. Constructed from high-quality stainless steel, this vent pipe provides exceptional durability and resistance to corrosion, even in high-temperature environments.

Features:

• Gasketed connections for enhanced sealing
• Fusion-welded pipe seams for superior strength
• No sealant required, eliminating cure time and reducing callbacks
• Airtight seams with a smooth finish for a better fit
• Metallic special gas vent with a single wall male end that can be cut to length on-site, saving both time and costs
• Available in single and double wall configurations, manufactured in diameters from 3" to 24"

This vent pipe is available in diameters from 3" to 24" and standard lengths up to 10 ft (for 3" and 4" diameters only), and it can be cut to the desired length. The female end of each Z-VENT component features a Double Fail Safe self-sealing gasket. Ensure that all components are inspected for gasket integrity during shipping. Proper positioning of gaskets is crucial to prevent flue gas leaks, which could lead to carbon monoxide poisoning. Installation should adhere to the manufacturer's instructions for optimal safety.
