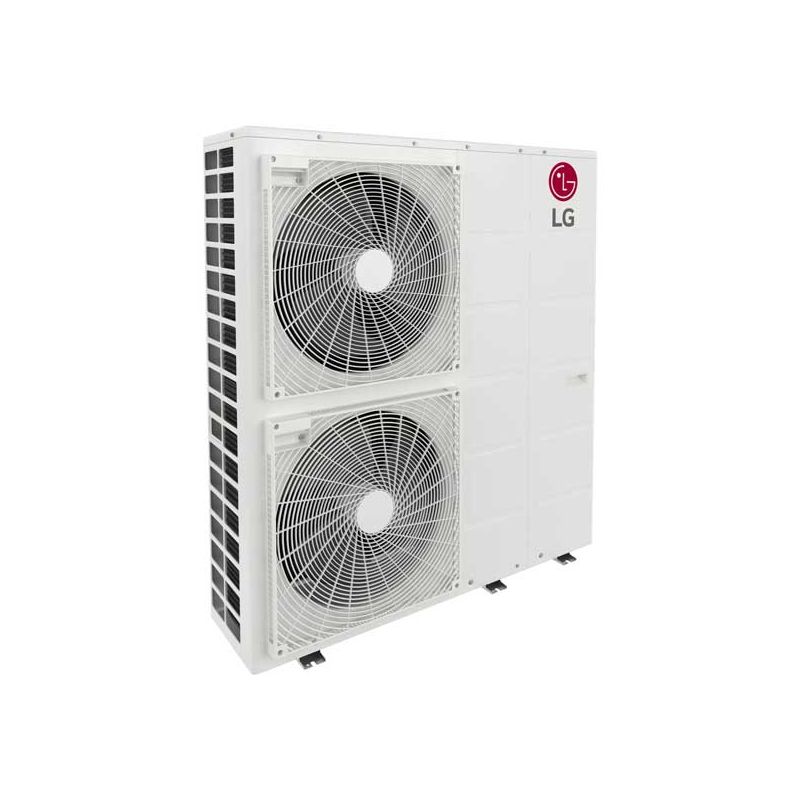

LG Air-to-Water Heat Pump Monobloc 55,000 BTU

A monobloc heat pump is an all-in-one outdoor system that heats and cools your space by transferring heat between air and water, rather than generating it like a traditional furnace or boiler. The Air-to-Water Heat Pump Monobloc (55,000 Btu/h) uses this technology to deliver space heating, cooling (through hydronic distribution), and domestic hot water from a single unit. Because all refrigeration components are self-contained outdoors, installation is more straightforward and eliminates the need for refrigerant piping inside the building.

Built for higher-demand applications, this system circulates heated or chilled water to radiant floors, fan coils, or air handlers to maintain steady, even comfort across larger spaces. Its inverter-driven compressor continuously adjusts output to match load conditions, improving efficiency and lowering operating costs compared to conventional HVAC or boiler systems. For customers new to heat pumps, a monobloc offers a simplified, high-capacity solution that combines performance, efficiency, and ease of installation.

Performance:

• Cooling Capacity: 55,000 Btu/h
• Heating Capacity: 55,000 Btu/h
• COP (Heating): Up to 5.10
• EER (Cooling): Up to 17.50

Energy Efficiency:

• Refrigerant Type: R32
• Compressor Type: Inverter Driven
• Energy Savings: Reduced operating costs vs. traditional HVAC and boiler systems
• System Type: Monobloc (integrated outdoor unit)

Power Supply:

• Voltage: 220–240V
• Phase: Single Phase
• Power Input (Cooling): ~3.60 kW
• Power Input (Heating): ~4.80 kW

Operating Range:

• Cooling Outdoor Temp Range: 41°F to 118°F
• Heating Outdoor Temp Range: -13°F to 95°F
• Hot Water Temp Range: Up to 176°F

Dimensions:

• Height: 56.00"
• Width: 52.00"
• Depth: 14.50"

Other Features:

• All-in-One Design: Integrated hydraulic components for simplified installation
• Quiet Operation: Optimized low-noise performance
• Built-in Pump & Sensors: Included for efficient and stable operation
• Water Circuit Protection: Advanced filtration and safety systems
• Smart Controls: Compatible with modern control interfaces

Warranty:

This product includes a limited manufacturer’s warranty covering essential components for dependable long-term use. The compressor is typically supported by an extended warranty period for added peace of mind.

What comes in the box:

The package includes the Air-to-Water Heat Pump Monobloc unit, installation and user manuals, and standard mounting and connection accessories required for installation.
