AirRex 5 Ton 60,000 BTU Dual Output Portable Air Conditioner | 220V 1 Phase - R454B

High-Capacity 5 Ton 60,000 BTU Portable Air Conditioner for Commercial and Industrial Environments with Dual 8-Inch Cooling Nozzles

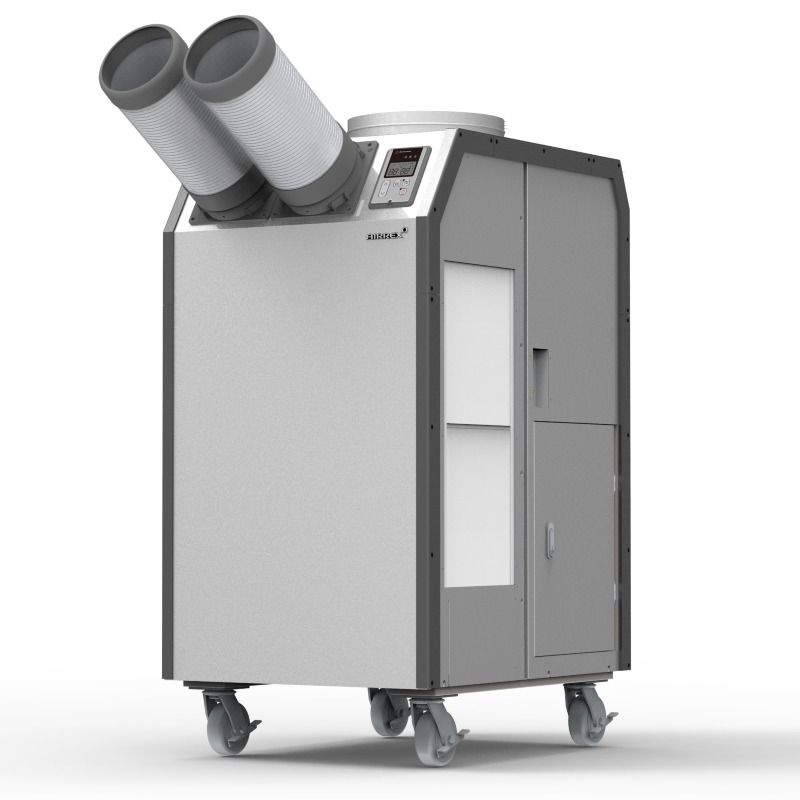

The Airrex HSC-60R 220/1 is a 60,000 BTU/h (5-ton) portable air conditioner and spot cooler designed to provide high-capacity supplemental cooling for commercial facilities, manufacturing environments, warehouses, equipment rooms, and other demanding applications. Combining air-cooled refrigeration technology with dual 8-inch cold-air discharge nozzles, a separate warm-air exhaust, and a self-contained portable design, this cooling system delivers targeted temperature control while supporting flexible deployment between suitable work areas. The HSC-60R uses R-454B refrigerant and includes an automatic condensate pump, removable and washable air filters, digital controls, and compressor protection features. Its 220V single-phase configuration provides a high-capacity portable cooling solution for facilities requiring substantial localized cooling without installing a permanent HVAC system.

Key Benefits

• 60,000 BTU/h Cooling Performance – Provides approximately 5 tons of cooling capacity for supplemental temperature control in large commercial and industrial work areas.
• Dual 8-Inch Spot Cooling Nozzles – Directs conditioned air toward employees, machinery, equipment, and designated workstations through two large front-mounted outlets.
• Portable Mobility – Four swivel casters with locking capability support movement and secure positioning within suitable facilities.
• High-Volume Airflow – Provides approximately 1,850 CFM of indoor airflow to support high-capacity targeted cooling.
• Flexible Exhaust Installation – A 16-inch top warm-air exhaust connection accommodates compatible ducting for routing condenser exhaust away from the installation area.
• Automatic Condensate Management – An included condensate pump removes moisture collected during cooling and dehumidification operation.
• Digital Controls and Electrical Protection – Digital temperature adjustment, programmable timer functionality, and compressor safety devices support convenient operation.
• Service-Friendly Filtration – Removable, washable aluminum and stainless-steel mesh filters simplify routine maintenance and help maintain airflow.

60,000 BTU Cooling Performance and Refrigeration Technology

The Airrex HSC-60R 220/1 provides 60,000 BTU/h of rated cooling capacity, equivalent to 5 tons of refrigeration, for commercial and industrial environments requiring substantial supplemental cooling. Its air-cooled refrigeration system uses R-454B refrigerant and is designed for high-capacity spot cooling in demanding operating environments. Published model literature specifies a cooling operating range of approximately 65°F to 118°F, subject to the manufacturer's operating conditions. The unit is marketed for applications of up to approximately 2,000 square feet, depending on the heat load, ambient temperature, insulation, occupancy, and ventilation conditions. Actual cooling coverage varies with the environment and should be determined according to the facility's cooling requirements.

Spot Cooling and Targeted Temperature Control

The Airrex HSC-60R 220/1 is designed to deliver concentrated cooling directly to employees, machinery, production lines, and other heat-generating areas. Two front-mounted 8-inch cold-air discharge nozzles provide directional cooling for designated work zones. This arrangement allows conditioned air to be directed toward specific locations instead of relying solely on cooling the entire surrounding space. The unit supports spot and room cooling settings, providing flexibility for different application requirements. Optional compatible cold-air duct accessories may allow additional flexibility in directing airflow, subject to the manufacturer's approved duct configurations and installation limitations.

Airflow and Distribution

The Airrex HSC-60R 220/1 provides approximately 1,850 CFM of indoor airflow through a centrifugal fan system. Two 8-inch front cold-air nozzles distribute conditioned air toward employees, machinery, equipment, and designated work areas. A separate 16-inch top warm-air exhaust connection allows condenser exhaust to be routed away from the installation area using compatible ducting. The published maximum equivalent outdoor exhaust duct length is approximately 70 feet, subject to the manufacturer's duct configuration and external static pressure limitations. The unit has a published maximum external static pressure of approximately 0.7 inches of water gauge. Keeping the air inlets, filters, cold-air outlets, and exhaust path unobstructed is important for maintaining cooling performance.

Portable Design and Flexible Installation

The self-contained portable design allows the Airrex HSC-60R 220/1 to be positioned where high-capacity supplemental cooling is needed without requiring a permanent HVAC installation. The cabinet measures approximately 29 inches wide, 54 inches deep, and 57 inches high, with a net weight of approximately 628 pounds. Four swivel casters support movement and positioning on suitable level surfaces, while the locking capability helps secure the unit during operation. The HSC-60R 220/1 requires a 220V, single-phase, 60 Hz electrical supply. The unit is supplied without a standard power cord and plug, requiring a compatible hardwired electrical installation in accordance with the manufacturer's requirements. A dedicated electrical circuit, suitable floor load capacity, adequate airflow clearance, and an appropriate warm-air exhaust arrangement must be provided before operation.

Condensate Management

The Airrex HSC-60R 220/1 includes an automatic condensate pump to remove moisture collected during cooling and dehumidification operation. This arrangement reduces the need for routine manual condensate disposal and supports operation in environments with significant moisture removal requirements. Published product literature identifies maximum dehumidification performance of approximately 88.8 gallons per day and nominal performance of approximately 62.6 gallons per day under specified test conditions. Actual moisture removal varies with ambient temperature and relative humidity. The condensate discharge must be routed to a suitable drainage point according to the manufacturer's installation instructions. Drainage hoses and connections should be inspected periodically for blockages, kinks, and leaks.

Controls, Comfort, and Electrical Connection

The Airrex HSC-60R 220/1 features digital operating controls for temperature adjustment, operating-mode selection, fan operation, and programmable timer functionality. The documented temperature-setting range is approximately 64°F to 86°F. Operating modes include cooling, fan, and dehumidification. Built-in protection features include high- and low-pressure switches, compressor thermostat protection, fan motor protection, a compressor restart delay, and automatic condensate-related shutoff protection. The 220/1 configuration requires a 220V, single-phase, 60 Hz electrical supply, with published current consumption of approximately 27.3 amps and power consumption of approximately 5.92 kW. Published electrical documentation specifies a 50-amp maximum breaker size for this configuration. The unit does not include a standard cord and plug; the electrical connection must be installed by a qualified electrician in accordance with the unit nameplate, manufacturer's instructions, and applicable electrical codes. Verify minimum circuit ampacity and conductor sizing against the current model-specific documentation before installation.

Commercial and Industrial Applications

The Airrex HSC-60R 220/1 is designed for high-capacity supplemental cooling in commercial and industrial environments, including manufacturing facilities, warehouses, production lines, large equipment rooms, server rooms, maintenance areas, and event spaces. Its 60,000 BTU/h cooling capacity and dual 8-inch cold-air outlets support concentrated cooling for machinery, workstations, and other heat-generating areas. The separate warm-air exhaust connection allows condenser heat to be routed away from the occupied space, helping maintain more suitable operating conditions. Optional return-air duct accessories may be appropriate for applications requiring a more balanced airflow arrangement. Installation requirements should be evaluated to ensure adequate exhaust ventilation, compatible electrical service, and sufficient clearance for maintenance.

Mobility and Deployment

The Airrex HSC-60R 220/1 combines a heavy-duty cabinet with four swivel casters to support movement and positioning within suitable commercial and industrial facilities. Its self-contained refrigeration system and dual directional cold-air nozzles allow the unit to be deployed where substantial supplemental cooling is required. Once positioned, the casters' locking capability helps secure the unit during operation. Because the unit weighs approximately 628 pounds, movement requires suitable floor conditions and appropriate handling equipment or procedures. Before deployment, confirm floor load capacity, access routes, electrical connection requirements, exhaust duct routing, and the space required for routine maintenance.

Service and Maintenance

The Airrex HSC-60R 220/1 features removable, washable aluminum and stainless-steel mesh air filters to simplify routine maintenance. Filters should be inspected and cleaned regularly according to operating conditions and dust loading. The evaporator and condenser air inlets, cold-air discharge nozzles, and warm-air exhaust must remain unobstructed to maintain proper airflow and heat transfer. The condensate pump and discharge hose should be inspected periodically, and any installed ducting should be checked for restrictions, damage, or leaks. Built-in high- and low-pressure switches, compressor protection, fan motor protection, and automatic condensate-related safety functions provide additional operating safeguards. Disconnect the electrical supply before performing maintenance and follow the manufacturer's instructions for cleaning, inspection, and servicing.

Warranty

The Airrex HSC-60R 220/1 is listed with a one-year standard unit warranty and three-year compressor coverage in published product literature. Warranty duration, covered components, labor coverage, registration requirements, and exclusions are subject to the manufacturer's current written warranty terms. Proof of purchase and compliance with applicable installation, operating, and maintenance requirements may be required for warranty service. Confirm the precise warranty terms with Airrex USA or an authorized distributor before purchase.

Recommended Accessories

• Warm-Air Exhaust Duct Kit – Optional compatible exhaust ducting and ceiling flange for routing condenser exhaust away from the installation area; verify the 16-inch connection and required duct length.
• Cold-Air Duct Accessories – Compatible ducting and nozzle accessories for directing conditioned air toward designated work areas; verify the required 8-inch connections and approved duct lengths.
• Return-Air Duct Kit – Optional compatible return-air accessories for applications requiring a more balanced airflow arrangement; confirm compatibility and installation requirements with the manufacturer.
• HEPA Filter Kit and Bracket – Optional filtration accessories, including compatible HEPA and activated-carbon configurations; verify the correct kit and mounting hardware before ordering.
• Replacement Air Filters – Compatible replacement aluminum and stainless-steel mesh filters for routine maintenance; confirm dimensions and model compatibility before ordering.

High-Capacity Portable Cooling with the Airrex HSC-60R 220/1

Experience high-capacity targeted cooling with the Airrex HSC-60R 220/1 portable air conditioner and spot cooler. Combining 60,000 BTU/h of cooling capacity with dual 8-inch cold-air nozzles, high-volume airflow, digital controls, an automatic condensate pump, and flexible exhaust ducting, this 5-ton portable cooling system provides supplemental temperature control for manufacturing facilities, warehouses, equipment rooms, production areas, and other demanding commercial environments. Its 220V single-phase configuration supports high-capacity spot cooling where permanent HVAC installation is impractical and suitable electrical service and exhaust ventilation are available.
