AirRex 5 Ton 60,000 BTU Dual Output Portable Air Conditioner | 220V 3 Phase - R454B

High-Capacity 5 Ton 60,000 BTU Portable Air Conditioner for Commercial and Industrial Environments with Dual 8-Inch Cooling Outlets

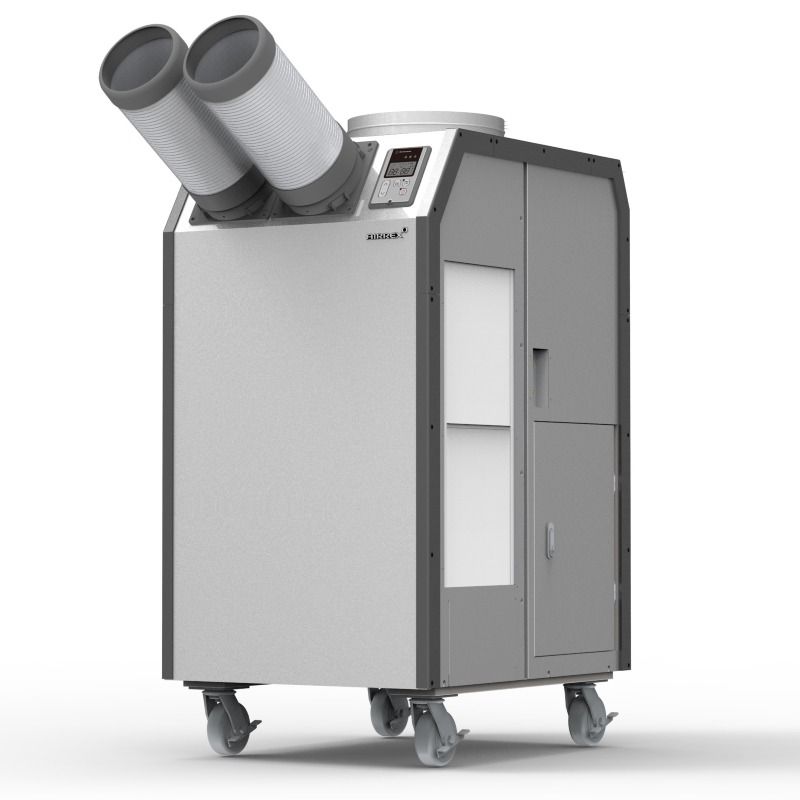

The Airrex HSC-60R 220/3 is a 60,000 BTU/h (5-ton) portable air conditioner and spot cooler designed to provide high-capacity supplemental cooling for commercial facilities, manufacturing environments, warehouses, equipment rooms, workshops, and other demanding applications. Combining air-cooled refrigeration technology with dual 8-inch cold-air discharge outlets, a separate warm-air exhaust connection, and a self-contained portable design, this cooling system delivers targeted temperature control while supporting flexible deployment between suitable work areas. The HSC-60R uses R-454B refrigerant and features digital operating controls, an automatic condensate pump, removable and washable air filters, and integrated compressor protection. Its 220V three-phase electrical configuration supports high-capacity cooling in facilities equipped with compatible electrical service.

Key Benefits

• 60,000 BTU/h Cooling Performance – Provides 5 tons of cooling capacity for supplemental temperature control in large commercial and industrial work areas.
• Dual 8-Inch Spot Cooling Outlets – Directs conditioned air toward employees, machinery, equipment, and designated workstations through two large cold-air discharge connections.
• Portable Mobility – Four swivel casters with locking capability support movement and secure positioning within suitable facilities.
• High-Volume Airflow – Provides approximately 1,850 CFM of indoor airflow to support high-capacity targeted cooling and distribution.
• Flexible Exhaust Installation – A 16-inch top warm-air exhaust connection accommodates compatible ducting for routing condenser exhaust away from the installation area.
• Condensate Management – Supports condensate collection and automatic full-tank shutoff, with an automatic condensate pump available as a compatible accessory.
• Digital Controls and Electrical Protection – Electronic temperature adjustment, selectable operating modes, timer functionality, and compressor safety devices support convenient operation.
• Service-Friendly Filtration – Removable aluminum and stainless-steel mesh air filters simplify routine maintenance and help maintain airflow.

60,000 BTU Cooling Performance and Refrigeration Technology

The Airrex HSC-60R 220/3 provides a rated cooling capacity of 60,000 BTU/h, equivalent to 5 tons of refrigeration, under the manufacturer's specified rating conditions of 95°F dry-bulb temperature and 40% relative humidity. Its air-cooled refrigeration system uses R-454B refrigerant to provide supplemental cooling for commercial and industrial applications requiring substantial cooling capacity. Published product specifications identify an operating range of approximately 65°F to 118°F for cooling, subject to the manufacturer's operating conditions. Actual cooling coverage depends on ambient temperature, internal heat loads, occupancy, insulation, ventilation, and other environmental factors. The unit also provides a dedicated dehumidification mode, with published moisture-removal ratings of approximately 88.8 gallons per day maximum and 62.6 gallons per day nominal under the manufacturer's specified test conditions.

Spot Cooling and Targeted Temperature Control

The Airrex HSC-60R 220/3 is designed to deliver concentrated cooling directly to employees, machinery, production lines, and other heat-generating areas. Two front-mounted 8-inch cold-air discharge connections support directional cooling for designated work zones. This arrangement allows conditioned air to be directed toward specific locations rather than relying solely on cooling the surrounding space. The unit provides cooling, fan, and dehumidification operating modes to accommodate different application requirements. Compatible cold-air duct accessories may be used where supported by the manufacturer's approved configuration. This targeted cooling approach is particularly useful in facilities where localized temperature control is needed without installing a permanent HVAC system.

Airflow and Distribution

The Airrex HSC-60R 220/3 incorporates separate indoor and outdoor centrifugal fan systems to support conditioned-air delivery and condenser heat rejection. The indoor evaporator airflow is rated at approximately 1,850 CFM, while the outdoor condenser airflow is rated at approximately 3,020 CFM. Two 8-inch cold-air discharge connections direct conditioned air toward employees, equipment, and designated work areas. A separate 16-inch top exhaust connection allows warm condenser air to be routed away from the installation area using compatible ducting. Published specifications identify a maximum equivalent duct length of approximately 50 feet for the indoor duct configuration and 70 feet for the outdoor exhaust configuration, subject to the manufacturer's ducting limitations. The maximum external static pressure is approximately 0.7 inches of water gauge. Maintaining unobstructed air inlets, clean filters, and appropriate exhaust routing is essential for reliable performance.

Portable Design and Flexible Installation

The self-contained portable design allows the Airrex HSC-60R 220/3 to be positioned where high-capacity supplemental cooling is needed without requiring a permanent HVAC installation. The cabinet measures approximately 29 inches wide, 54 inches deep, and 57 inches high, with a published net weight of approximately 628 pounds. Four swivel casters support movement and positioning on suitable level surfaces, while their locking capability helps secure the unit during operation. The HSC-60R 220/3 requires a 220V, three-phase, 60 Hz electrical supply and uses a hardwired electrical connection rather than a standard residential plug. Installation requires a compatible dedicated electrical circuit, adequate floor load capacity, sufficient airflow clearance, and appropriate warm-air exhaust ducting. The unit should be installed and electrically connected by qualified personnel in accordance with the manufacturer's instructions and applicable electrical codes.

Condensate Management

The Airrex HSC-60R 220/3 incorporates a condensate collection system to manage moisture generated during cooling and dehumidification operation. Automatic full-tank shutoff helps prevent continued operation when the condensate collection system reaches its limit. An optional automatic condensate pump is available for applications requiring powered condensate removal and may help reduce the need for routine manual draining. The pump and discharge arrangement must be compatible with the unit and installed according to the manufacturer's instructions. Condensate hoses and connections should be inspected periodically for blockages, kinks, and leaks. The manufacturer's published dehumidification ratings are approximately 88.8 gallons per day maximum at 89°F and 80% relative humidity, and 62.6 gallons per day nominal at 80°F and 60% relative humidity.

Controls, Comfort, and Electrical Connection

The Airrex HSC-60R 220/3 features a digital control panel for temperature adjustment, operating-mode selection, fan operation, and timer settings. The unit supports cooling, fan, and dehumidification operation, with a documented temperature-setting range of approximately 64°F to 86°F. An automatic fan-speed controller adjusts fan operation in response to temperature conditions. Built-in protection features include high- and low-pressure switches, compressor thermostat protection, fan motor protection, a three-minute compressor delay timer, and automatic full-tank shutoff. The 220V three-phase configuration requires a 220V, three-phase, 60 Hz electrical supply, with published current consumption of approximately 18.5 amps and cooling power consumption of approximately 5.98 kW. The manufacturer's product literature lists a 30-amp circuit breaker size for this configuration. The unit is hardwired, and conductor sizing, overcurrent protection, grounding, and disconnect requirements must be verified against the current model-specific electrical documentation and applicable local codes before installation.

Commercial and Industrial Applications

The Airrex HSC-60R 220/3 is designed for high-capacity supplemental cooling in commercial and industrial environments, including manufacturing facilities, automotive repair shops, warehouses, shipbuilding facilities, steel mills, production areas, server rooms, machine rooms, and other heat-generating work environments. Its 60,000 BTU/h cooling capacity and dual 8-inch cold-air discharge outlets support concentrated cooling for equipment, employees, and designated workstations. The separate warm-air exhaust connection allows condenser heat to be routed away from the occupied space, helping prevent unwanted heat buildup when properly installed. Its portable configuration supports changing cooling requirements without the need for permanent HVAC installation. Adequate electrical service, exhaust ventilation, floor support, and maintenance access must be provided for reliable operation.

Mobility and Deployment

The Airrex HSC-60R 220/3 combines a heavy-duty cabinet with four swivel casters to support positioning within suitable commercial and industrial facilities. Its self-contained refrigeration system and dual directional cold-air outlets allow the unit to be deployed where substantial supplemental cooling is required. The casters' locking capability helps secure the unit during operation. Because the unit weighs approximately 628 pounds, movement requires suitable floor conditions and appropriate handling equipment or procedures. Before deployment, verify floor load capacity, access routes, electrical connection requirements, warm-air exhaust routing, and the space required for routine maintenance.

Service and Maintenance

The Airrex HSC-60R 220/3 features removable aluminum and stainless-steel mesh air filters to simplify routine maintenance. Filters should be inspected and cleaned regularly according to operating conditions and dust loading. The evaporator and condenser air inlets, cold-air discharge outlets, and warm-air exhaust must remain unobstructed to maintain proper airflow and heat transfer. The condensate collection system and any installed condensate pump should be inspected periodically, and installed ducting should be checked for restrictions, damage, or leaks. Built-in high- and low-pressure switches, compressor thermostat protection, fan motor protection, a three-minute compressor delay timer, and automatic full-tank shutoff provide additional operating safeguards. Disconnect the electrical supply before performing maintenance and follow the manufacturer's instructions for cleaning, inspection, and servicing.

Warranty

The Airrex HSC-60R 220/3 is listed with a one-year standard warranty and three-year compressor coverage in published product literature. Warranty duration, covered components, labor coverage, eligibility, and exclusions are subject to the manufacturer's current written warranty terms. Proof of purchase and compliance with applicable installation, operating, and maintenance requirements may be required for warranty service. Confirm the precise warranty conditions with Airrex USA or an authorized distributor before purchase.

Recommended Accessories

• Warm-Air Exhaust Duct Kit – Compatible 16-inch exhaust ducting and installation accessories for routing condenser exhaust away from the installation area; verify the required duct length and approved configuration.
• Cold-Air Duct Accessories – Compatible 8-inch cold-air ducting and nozzle accessories for directing conditioned air toward designated work areas; confirm approved duct lengths and connection requirements.
• Condensate Pump – Optional compatible automatic pump for applications requiring powered condensate removal; verify whether a pump is included in the supplied configuration before ordering.
• HEPA Filter Kit and Bracket – Optional filtration accessories for compatible HSC-60R configurations; verify the correct kit, mounting hardware, and installation requirements with the manufacturer.
• Replacement Air Filters – Compatible replacement aluminum and stainless-steel mesh filters for routine maintenance; confirm filter dimensions and model compatibility before ordering.

High-Capacity Portable Cooling with the Airrex HSC-60R 220/3

Experience high-capacity targeted cooling with the Airrex HSC-60R 220/3 portable air conditioner and spot cooler. Combining 60,000 BTU/h of cooling capacity with dual 8-inch cold-air outlets, high-volume airflow, digital controls, and flexible exhaust ducting, this 5-ton portable cooling system provides supplemental temperature control for manufacturing facilities, warehouses, automotive repair shops, production areas, equipment rooms, and other demanding commercial environments. Its 220V three-phase configuration supports high-capacity spot cooling in facilities equipped with compatible electrical service, making it a practical solution for applications where localized cooling is required without installing a permanent HVAC system.
