AirRex 5 Ton 60,000 BTU Dual Output Portable Air Conditioner | 460V 3 Phase - R454B

High-Capacity 5 Ton 60,000 BTU Portable Air Conditioner for Commercial and Industrial Environments with Dual 8-Inch Cooling Outlets

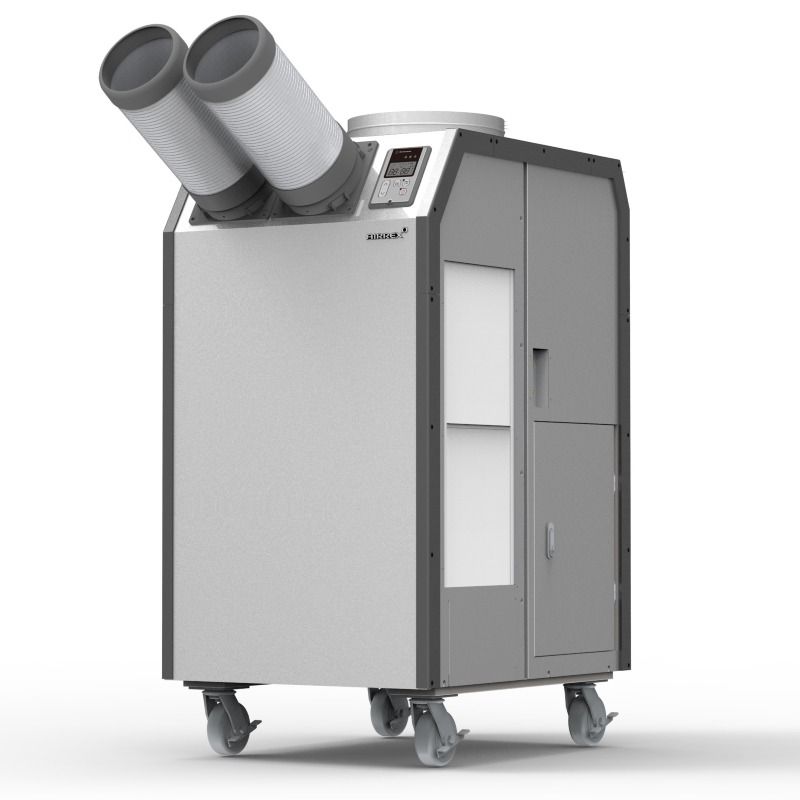

The Airrex HSC-60R 460/3 is a 60,000 BTU/h (5-ton) portable air conditioner and spot cooler designed to provide high-capacity supplemental cooling for commercial facilities, manufacturing environments, warehouses, equipment rooms, workshops, and other demanding applications. Combining air-cooled refrigeration technology with dual cold-air discharge nozzles, a separate warm-air exhaust connection, and a self-contained portable design, this cooling system delivers targeted temperature control while supporting flexible deployment between suitable work areas. The HSC-60R uses R-454B refrigerant and features digital operating controls, a built-in condensate pump, removable and washable air filters, and integrated compressor protection. Its 460V three-phase electrical configuration is designed for industrial facilities equipped with compatible high-voltage electrical service.

Key Benefits

• 60,000 BTU/h Cooling Performance – Provides 5 tons of cooling capacity for supplemental temperature control in large commercial and industrial work areas.
• Dual 8-Inch Spot Cooling Nozzles – Directs conditioned air toward employees, machinery, equipment, and designated workstations through two front-mounted cold-air outlets.
• Portable Mobility – Four swivel casters, including locking casters, support movement and secure positioning within suitable facilities.
• High-Volume Airflow – Provides approximately 1,850 CFM of indoor airflow to support high-capacity targeted cooling and distribution.
• Flexible Exhaust Installation – A 16-inch top warm-air exhaust connection accommodates compatible ducting for routing condenser exhaust away from the installation area.
• Automatic Condensate Management – An included condensate pump removes moisture collected during cooling and dehumidification operation, reducing the need for routine manual draining.
• Digital Controls and Electrical Protection – Electronic temperature adjustment, operating-mode selection, timer functionality, and compressor safety devices support convenient operation.
• Service-Friendly Filtration – Removable, washable aluminum and stainless-steel mesh air filters simplify routine maintenance and help maintain airflow.

60,000 BTU Cooling Performance and Refrigeration Technology

The Airrex HSC-60R 460/3 provides a rated cooling capacity of 60,000 BTU/h, equivalent to 5 tons of refrigeration, for commercial and industrial environments requiring substantial supplemental cooling. Its air-cooled refrigeration system uses R-454B refrigerant to deliver concentrated cooling for equipment, personnel, and designated work areas. The manufacturer specifies a cooling operating temperature range of approximately 65°F to 118°F, subject to the applicable operating conditions. The unit is marketed for applications of up to approximately 2,000 square feet, depending on ambient temperature, internal heat loads, occupancy, insulation, ventilation, and other environmental factors. Actual cooling coverage should be determined according to the facility's heat load and cooling requirements.

Spot Cooling and Targeted Temperature Control

The Airrex HSC-60R 460/3 is designed to deliver concentrated cooling directly to employees, machinery, production lines, and other heat-generating areas. Two front-mounted 8-inch cold-air discharge nozzles direct conditioned air toward designated cooling zones, allowing users to target specific locations instead of relying solely on cooling the surrounding space. The unit provides spot and room cooling settings to accommodate different application requirements. Compatible cold-air duct accessories may provide additional flexibility for directing conditioned air where needed, subject to the manufacturer's approved configurations and ducting limitations. This targeted cooling approach is particularly useful in facilities where localized temperature control is required without installing a permanent HVAC system.

Airflow and Distribution

The Airrex HSC-60R 460/3 incorporates separate indoor and outdoor centrifugal fan systems to support conditioned-air delivery and condenser heat rejection. The indoor evaporator airflow is rated at approximately 1,850 CFM, while the outdoor condenser airflow is rated at approximately 3,020 CFM. Two 8-inch cold-air discharge nozzles distribute conditioned air toward employees, equipment, and designated work areas. A separate 16-inch top exhaust connection allows warm condenser air to be routed away from the installation area using compatible ducting. The published maximum equivalent outdoor exhaust duct length is approximately 70 feet, subject to the manufacturer's duct configuration and external static pressure limitations. The maximum external static pressure is approximately 0.7 inches of water gauge. Keeping the air inlets, filters, cold-air outlets, and exhaust path unobstructed is essential for maintaining cooling performance.

Portable Design and Flexible Installation

The self-contained portable design allows the Airrex HSC-60R 460/3 to be positioned where high-capacity supplemental cooling is needed without requiring a permanent HVAC installation. The cabinet measures approximately 29 inches wide, 54 inches deep, and 57 inches high, with a net weight of approximately 628 pounds. Four swivel casters support movement and positioning on suitable level surfaces, while locking casters help secure the unit during operation. The HSC-60R 460/3 requires a 460V, three-phase, 60 Hz electrical supply and is intended for compatible industrial electrical installations. Its 16-inch top exhaust connection accommodates compatible warm-air ducting for routing condenser heat away from the installation area. Installation requires suitable electrical service, adequate floor load capacity, sufficient airflow clearance, and an appropriate exhaust arrangement. Because of the unit's weight and electrical requirements, installation and relocation should be planned according to the manufacturer's instructions and applicable safety requirements.

Condensate Management

The Airrex HSC-60R 460/3 includes a built-in condensate pump to remove moisture generated during cooling and dehumidification operation. This arrangement reduces the need for routine manual condensate disposal and supports operation in environments with significant moisture-removal requirements. Published HSC-60R specifications identify maximum dehumidification performance of approximately 88.8 gallons per day and nominal performance of approximately 62.6 gallons per day under specified test conditions. Actual moisture removal varies with ambient temperature and relative humidity. The condensate discharge must be routed to an appropriate drainage point according to the manufacturer's installation instructions. Drainage hoses and connections should be inspected periodically for blockages, kinks, and leaks.

Controls, Comfort, and Electrical Connection

The Airrex HSC-60R 460/3 features a digital control panel for temperature adjustment, operating-mode selection, fan operation, and timer settings. The unit supports cooling, fan, and dehumidification modes, with a documented temperature-setting range of approximately 64°F to 86°F. An automatic fan-speed controller adjusts fan operation according to temperature conditions. Built-in protection features include high- and low-pressure switches, compressor thermostat protection, fan motor protection, a compressor delay timer, and automatic condensate-related shutoff protection. The 460/3 configuration requires a 460V, three-phase, 60 Hz electrical supply, with published current consumption of approximately 8.87 amps. The manufacturer's electrical documentation must be consulted to confirm the applicable power consumption, overcurrent protection, minimum circuit ampacity, conductor sizing, and disconnect requirements for this configuration. The unit must be connected by qualified personnel in accordance with the nameplate, manufacturer's instructions, and applicable electrical codes.

Commercial and Industrial Applications

The Airrex HSC-60R 460/3 is designed for high-capacity supplemental cooling in commercial and industrial environments, including manufacturing facilities, warehouses, automotive repair shops, production lines, equipment rooms, maintenance areas, and other heat-generating work environments. Its 60,000 BTU/h cooling capacity and dual 8-inch cold-air outlets support concentrated cooling for machinery, employees, and designated workstations. The separate warm-air exhaust connection allows condenser heat to be routed away from the occupied space, helping prevent unwanted heat buildup when properly installed. The 460V three-phase configuration is suited to facilities with compatible industrial electrical infrastructure. Appropriate exhaust ventilation, electrical service, floor support, and maintenance access must be provided for reliable operation.

Mobility and Deployment

The Airrex HSC-60R 460/3 combines a heavy-duty cabinet with swivel casters to support positioning within suitable commercial and industrial facilities. Its self-contained refrigeration system and dual directional cold-air outlets allow the unit to be deployed where substantial supplemental cooling is required. Locking casters help secure the unit during operation. Because the unit weighs approximately 628 pounds, movement requires suitable floor conditions and appropriate handling equipment or procedures. Before deployment, verify floor load capacity, access routes, electrical connection requirements, warm-air exhaust routing, and the space required for routine maintenance.

Service and Maintenance

The Airrex HSC-60R 460/3 features removable, washable aluminum and stainless-steel mesh air filters to simplify routine maintenance. Filters should be inspected and cleaned regularly according to operating conditions and dust loading. The evaporator and condenser air inlets, cold-air discharge nozzles, and warm-air exhaust must remain unobstructed to maintain proper airflow and heat transfer. The condensate pump and discharge hose should be inspected periodically, and installed ducting should be checked for restrictions, damage, or leaks. Built-in high- and low-pressure switches, compressor protection, fan motor protection, compressor delay protection, and automatic condensate-related safety functions provide additional operating safeguards. Disconnect the electrical supply before performing maintenance and follow the manufacturer's instructions for cleaning, inspection, and servicing.

Warranty

The Airrex HSC-60R 460/3 is listed with a one-year standard unit warranty and three-year compressor coverage in published product literature. Warranty duration, covered components, labor coverage, eligibility, and exclusions are subject to the manufacturer's current written warranty terms. Proof of purchase and compliance with applicable installation, operating, and maintenance requirements may be required for warranty service. Confirm the precise warranty conditions with Airrex USA or an authorized distributor before purchase.

Recommended Accessories

• Warm-Air Exhaust Duct Kit – Compatible 16-inch exhaust ducting and installation accessories for routing condenser exhaust away from the installation area; verify the required duct length and approved configuration.
• Cold-Air Duct Accessories – Compatible 8-inch cold-air ducting and nozzle accessories for directing conditioned air toward designated work areas; confirm approved duct lengths and connection requirements.
• HEPA Filter Kit and Bracket – Optional compatible filtration accessories for applications requiring additional particulate filtration; verify the correct kit, mounting hardware, and installation requirements with the manufacturer.
• Activated-Carbon Filter Kit – Optional filtration accessory for compatible HSC-60R configurations; confirm model compatibility and the intended filtration application before ordering.
• Replacement Air Filters – Compatible replacement aluminum and stainless-steel mesh filters for routine maintenance; confirm filter dimensions and model compatibility before ordering.

High-Capacity Portable Cooling with the Airrex HSC-60R 460/3

Experience high-capacity targeted cooling with the Airrex HSC-60R 460/3 portable air conditioner and spot cooler. Combining 60,000 BTU/h of cooling capacity with dual 8-inch cold-air outlets, high-volume airflow, digital controls, a built-in condensate pump, and flexible exhaust ducting, this 5-ton portable cooling system provides supplemental temperature control for manufacturing facilities, warehouses, automotive repair shops, production areas, equipment rooms, and other demanding commercial environments. Its 460V three-phase configuration supports high-capacity spot cooling in facilities equipped with compatible industrial electrical service, making it a practical solution for applications where localized cooling is required without installing a permanent HVAC system.
