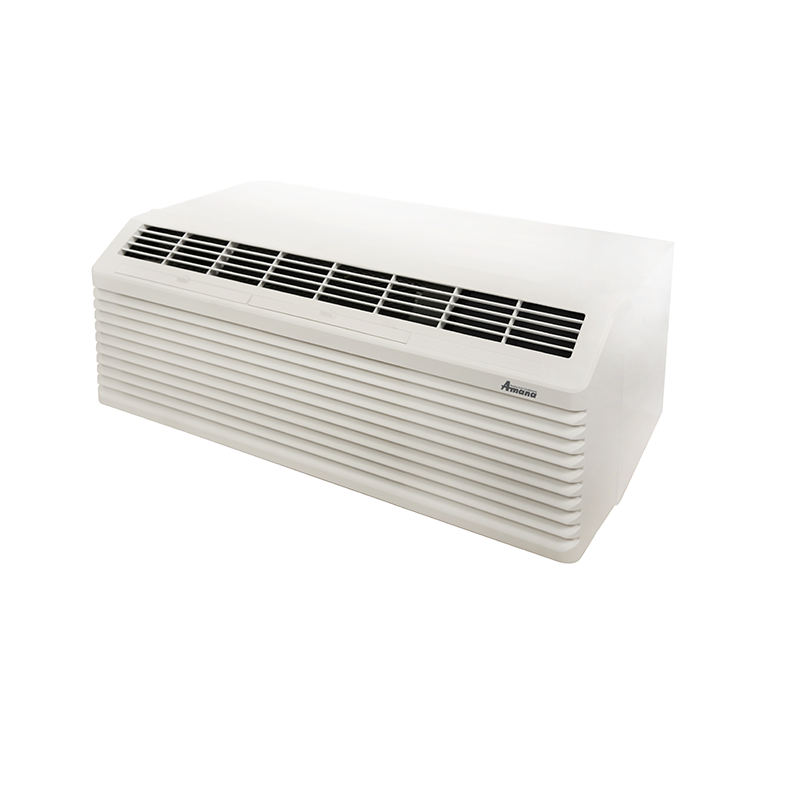

Amana 15,000 BTU PTAC Air Conditioner with 5KW Electric Heater 230V - R410A

Amana 15,000 BTU PTAC Air Conditioner with 5KW Electric Heater 230V - R410A
Customer reviews
Rating:
5 out of 5
Out of stock
By

Amana

Out of stock
Model

PTC153J50AXXX-1

ID

8276

OVERVIEW

The Amana K Series Model PTAC air conditioner comes equipped with an electric heater, allowing you to stay warm all year round. Its compact size makes it perfect for small living areas, and it features Bluetooth and RF connectivity that can be accessed via the Amana brand mobile app, enabling you to use the Eden Energy Management System to modify settings and timing. This unit provides 14,800 BTUs of heating and cooling, requires 208-230V of power at 30 amps, and needs a NEMA 6-30P receptacle to power the unit and the included 5.0kw electric heater. Amana's PTACs use the environmentally friendly R-410a refrigerant. You can find the Wall Sleeve and exterior grille under the Accessories section. With a 10.0 EER rating, Amana's unit is an excellent choice for new construction or as a replacement for an existing unit

QUICK FACTS

  • Cooling and Heating: The PTAC air conditioner is capable of both cooling and heating the room, providing year-round comfort to occupants.
  • High Efficiency: The K Series PTAC air conditioner is designed to be highly efficient, with an energy efficiency ratio (EER) of up to 13.0. This can help to reduce energy costs and save money on utility bills.
  • Quiet Operation: The unit is designed to operate quietly, with noise levels as low as 51 decibels (dB). This can help to ensure a peaceful and comfortable environment for occupants.
  • Easy to Use Controls: The PTAC air conditioner is equipped with an easy-to-use control panel, allowing users to adjust the temperature and fan speed settings as desired.
  • Durable Construction: The unit is built to withstand heavy use, with a robust construction that can withstand the demands of commercial applications.
  • Digital Display: The PTAC air conditioner features a digital display that shows the current temperature and other settings, making it easy to monitor and adjust the unit as needed.
  • Multiple Operating Modes: The unit offers multiple operating modes, including fan-only, cool, heat, and auto. This allows users to select the mode that best suits their needs.
  • Remote Control: The PTAC air conditioner comes with a remote control, allowing users to adjust the settings from across the room.
  • Optional Features: The unit can be equipped with optional features, such as a built-in heater or a fresh air vent, depending on the needs of the application.
  • Warranty

    1 Year Unit Replacement / 5 Years Parts Warranty

More Information
Amana 15,000 BTU PTAC Air Conditioner with 5KW Electric Heater 230V - R410A
FeatureSpec
SKUPTC153J50AXXX-1
Weight (in lbs)125
Brand/ManufacturerAmana
UPC663051669987
Cooling BTU14,800
Heating BTU14,500
Maximum CFM400
Electric Heat5 Kilowatts
Energy StarNo
RefrigerantR410A
EER10.3/10.4
Electrical230 V. 1 Phase 60 Hz
Wattage1,435/1,430
Max Breaker Size7.1 Amps
Min. Breaker Size7.1 Amps
BTU/Tonnage15,000 BTU/1.25 Ton
Height16"
Width42"
Depth21.5"
Warranty1 Year Unit Replacement / 5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Ac heat
    Quality
    100%
    Service
    100%
    Price
    100%
    My second amana ptac. Replaced previous unit. Same fit into sleeve. Same wiring to thermostat. Quiet. Very good.

    Review by

    Posted on

  2. replacement unit
    Quality
    100%
    Service
    100%
    Price
    100%
    bought this unit to replace my 15 year-old unit works like a champ delivery was super fast ordered on a Monday. Had it on a Thursday absolutely fantastic. Great customer service.

    Review by

    Posted on

  3. Went well
    Price
    100%
    Service
    100%
    Quality
    100%
    All went well. Thanks for your knowledge about the PTAC and your help.

    Review by

    Posted on

  4. Love it
    Price
    100%
    Service
    100%
    Quality
    100%
    Love it very quiteworks perfect!

    Review by

    Posted on

  5. The best
    Quality
    100%
    Price
    100%
    Service
    100%
    I bought one and love it

    Review by

    Posted on

Customer Questions
What type of receptical does it need?
PTACs all have different style plugs based on voltage needs. So, in order to answer the question about what kind of plug receptacle you need, we need to know more about your voltage: 115 or 230? Then, we can find the manual, and perhaps even some info on the plug.   I would recommend you give us a call with your specifics and we can continue to assist you! Thanks
Would it be good to heat a 1000sq basement?
Please refer to our Sizing Guide to help you find the right size unit for your home. Depending on where you live and placement of the unit will help determine how many square feet this will heat. We have experts on staff to walk you through any questions you may have to find the right furnace for your home.
Does this come with the wall sleeve & grill, or do I need to order these separately for a new installation?
This does not come with the wall sleeve or grill and will need to be ordered separately. Please refer to the "Accessories" located on the product page where you can find these compatible items. See here as well for the Amana PTAC Unit Wall Sleeve and the Amana PTAC Unit Standard Stamped Aluminum Outdoor Grille. If you have any further questions, please call us and we will be happy to assist you.
What does H3 mean?
H3 is defined as Heating Group 3. If you have any further questions please feel free to give us a call! Thanks.
Will this unit work with a 20 Amp breaker?
This PTAC will not work with a 20 Amp breaker. It needs at least a minimum ampacity of 27.5 Amps while running. A breaker size of 30 Amps or more is required. If you have any further questions, please call us and we will be happy to assist you.
What square footage does at 15,000 BTU PTAC unit cover?
Hello, thank you for reaching out with your question. A 15,000 BTU PTAC is able to cover ~600-1,000 sq ft room/zone. This square footage could change depending on the height of the ceilings, windows in the room, insulation, and other factors that could shorten or extend the footage coverage; for specifics, please feel free to give our customer sales line a call.
