AmeriCool 2 Ton 21,000 BTU Portable Air Conditioner Spot Cooler | 208/230V - R410A

High-Capacity 2 Ton Portable Spot Cooler with 21,000 BTU/h Cooling Capacity for Commercial and Industrial Applications – AmeriCool WPC-5000PD

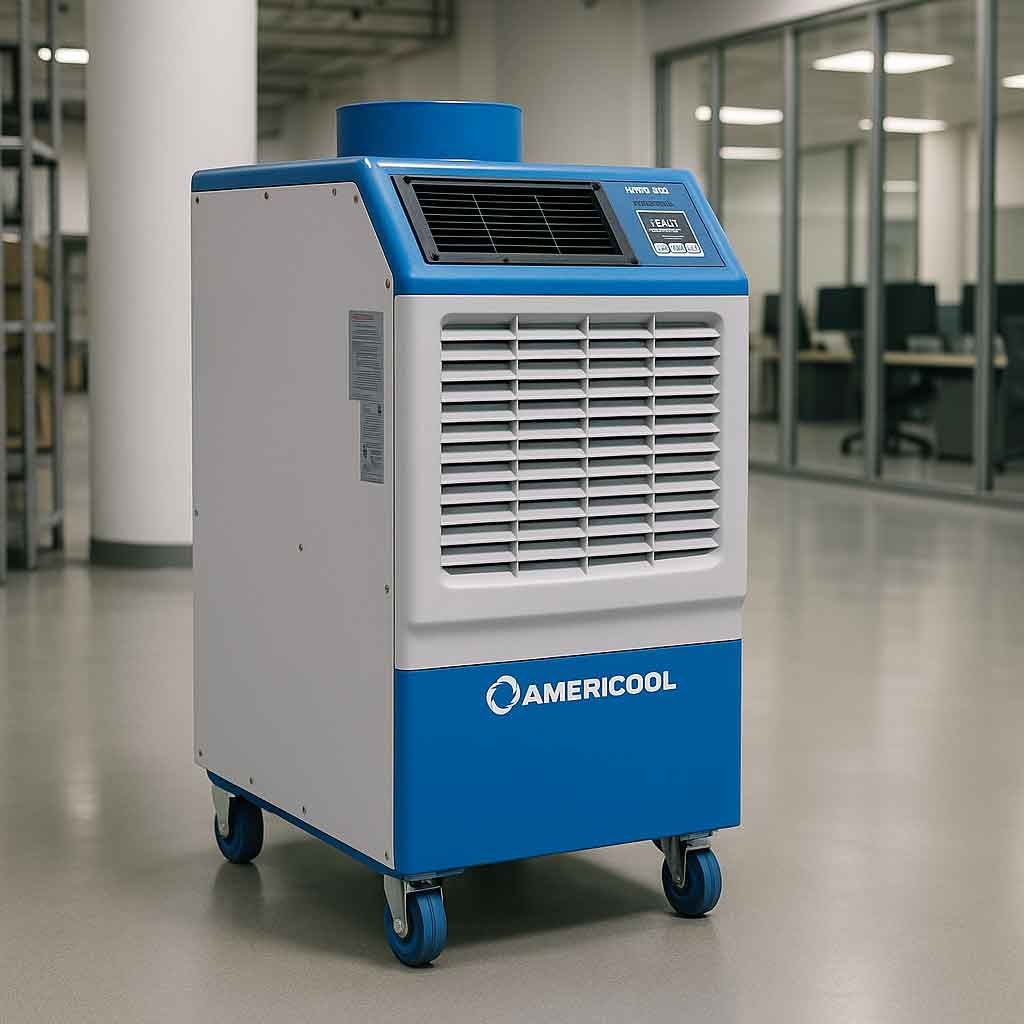

The AmeriCool WPC-5000PD is a high-capacity portable air conditioner designed to provide targeted spot cooling and supplemental room cooling for commercial, industrial, and temporary cooling applications. With a nominal cooling capacity of 21,000 BTU/h, a self-contained refrigeration system, two-speed fan, and dedicated spot-cooling and room-cooling thermostat modes, this portable cooling system delivers flexible temperature control for employees, equipment, and heat-generating work areas. Its four caster wheels, adjustable cold-air outlets, washable filters, and compact cabinet support flexible placement in factories, computer rooms, industrial kitchens, workstations, and event spaces where permanent HVAC installation is impractical.

Key Benefits

• 21,000 BTU/h Cooling Capacity – Provides approximately 1.77 tons of nominal cooling capacity for targeted cooling and supplemental temperature control.
• Dedicated Spot Cooling and Room Cooling Modes – Allows cooling operation to be selected for localized equipment or employee cooling, or for temperature control across a smaller enclosed space.
• Two-Speed Fan – Provides high- and low-speed airflow settings to accommodate different cooling and air-distribution requirements.
• Portable Mobility – Four caster wheels support convenient movement between suitable work areas and temporary cooling locations.

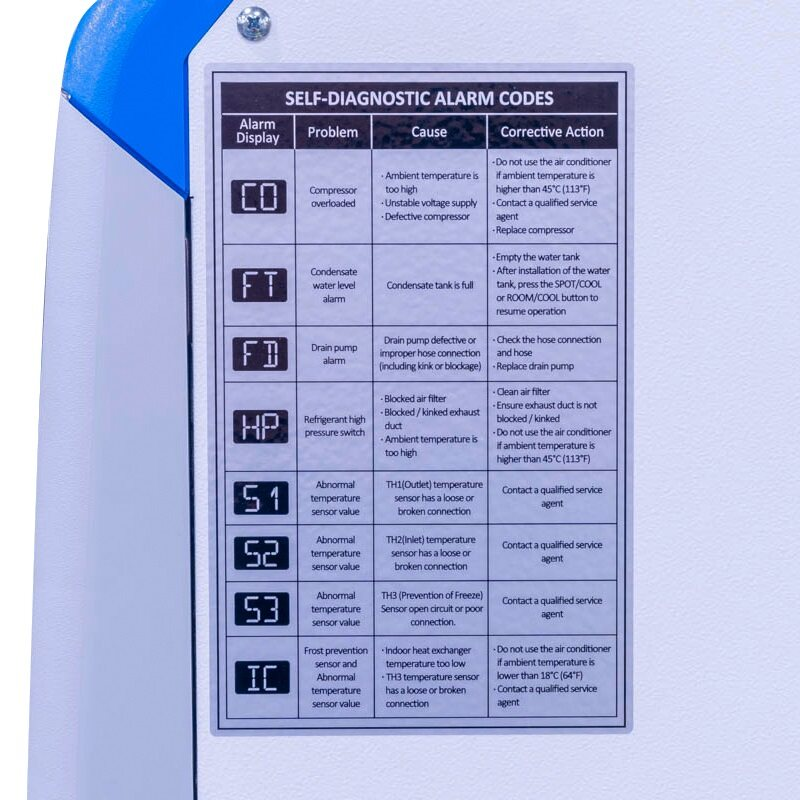

• Digital Temperature Display and Self-Diagnostics – Displays operating temperatures, target settings, and diagnostic fault codes to support convenient operation and troubleshooting.
• Condensate Management – Includes a 3.17-gallon condensate collection tank with a full-tank safety switch; an optional drain pump kit is available for compatible configurations.
• Automatic Restart – Restarts automatically after a power interruption when electrical power is restored.
• 208/230V Electrical Connection – Uses a single-phase electrical supply and NEMA 6-15P plug configuration for a compatible, properly grounded receptacle.

High-Capacity Cooling Performance

The AmeriCool WPC-5000PD is based on the WPC-5000 portable air-conditioning platform, which has a manufacturer-rated cooling capacity of 21,000 BTU/h. The refrigeration system uses R-410A refrigerant and is rated at 2,400 watts of power consumption, 11 amps of rated current, and an energy efficiency ratio (EER) of 8.8 BTU/Wh. The manufacturer specifies an ambient operating temperature range of 64°F to 113°F. These performance characteristics make the unit suitable for supplemental cooling in industrial work areas, computer rooms, and other spaces where localized temperature control is needed. Actual cooling performance depends on ambient temperature, humidity, heat load, exhaust routing, and installation conditions.

Spot Cooling and Targeted Temperature Control

The AmeriCool WPC-5000PD features dedicated spot-cooling and room-cooling operating modes to accommodate different application requirements. Spot-cooling mode regulates operation based on the temperature of the discharged cold air, allowing cooling to be directed toward employees, equipment, and concentrated heat sources. Room-cooling mode regulates operation according to the incoming ambient-air temperature for supplemental cooling in smaller enclosed spaces. The manufacturer lists two cold-air outlets for the WPC-5000 platform, supporting targeted air delivery. This flexibility makes the unit suitable for workstation cooling, equipment protection, and temporary cooling applications without requiring a permanent central HVAC installation.

Airflow and Distribution

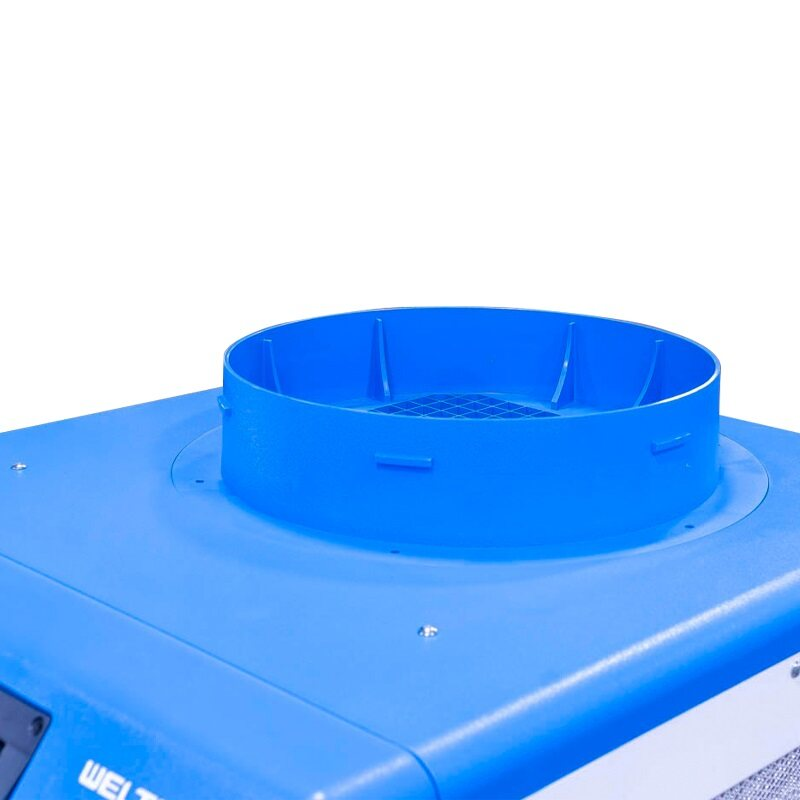

The AmeriCool WPC-5000PD provides manufacturer-rated indoor evaporator airflow of 560 CFM on high speed and 465 CFM on low speed. Condenser airflow is rated at 1,380 CFM on high and 1,190 CFM on low. The unit incorporates two cold-air outlets for distributing conditioned air toward the intended cooling area. The hot-air discharge connection measures 12 inches in diameter, and the manufacturer specifies a maximum hot-air duct length of 50 feet. Proper condenser exhaust routing is essential to remove heat from the conditioned space and maintain effective cooling. Keep the air intake, filters, and discharge openings unobstructed, and follow the manufacturer's ducting and clearance instructions to help maintain airflow and system performance.

Portable Design and Flexible Installation

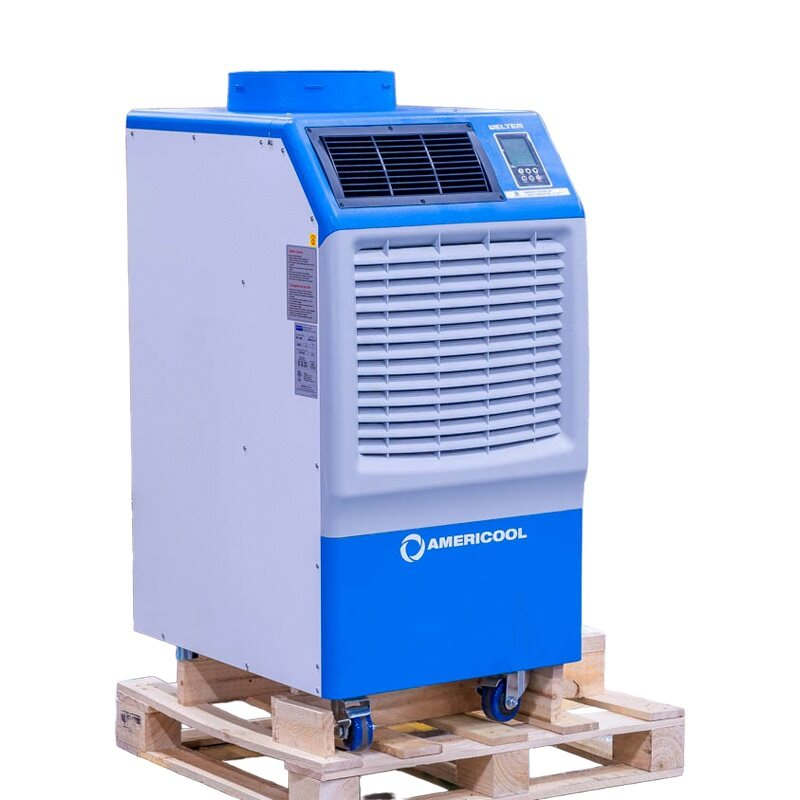

The AmeriCool WPC-5000PD features a compact cabinet measuring approximately 20.6 inches wide, 26.4 inches deep, and 41 inches high. The WPC-5000 platform has a manufacturer-listed net weight of 196 pounds and a gross weight of 211 pounds. Four caster wheels support movement across suitable floor surfaces, while the self-contained design eliminates the need for a permanently installed outdoor condenser. The unit requires an appropriate exhaust duct arrangement to discharge warm condenser air away from the conditioned space. The manufacturer lists a maximum cold-air duct length of 45 feet and a maximum hot-air discharge duct length of 50 feet. Position the unit on a level, stable surface, maintain the specified service clearances, and verify all duct connections before operation. Follow the official installation instructions for safe handling, placement, and exhaust routing.

Condensate Management

The AmeriCool WPC-5000PD platform incorporates a condensate collection tank with a nominal capacity of 3.17 gallons (12 liters). Moisture removed from the air during cooling collects in the tank, and a full-tank safety switch stops operation when the tank reaches its limit. An alarm indicates that the tank must be emptied and correctly reinstalled before cooling can resume. The manufacturer also identifies an optional drain pump kit for compatible configurations requiring condensate discharge through a hose. Confirm the correct pump kit and drainage requirements for the specific WPC-5000PD configuration before ordering accessories. Periodically inspect the tank, drainage components, and any installed pump hose to help prevent overflow, blockages, and water-related operating problems.

Controls, Comfort and Electrical Connection

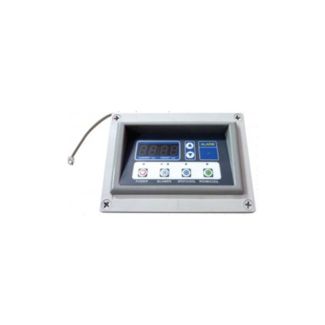

The AmeriCool WPC-5000PD features an electronic control panel with temperature adjustment, operating-mode selection, fan-speed control, temperature display, and self-diagnostic fault indications. Users can select spot-cooling or room-cooling mode and adjust the target temperature according to the intended application. An off-timer supports scheduled shutdown, while automatic restart restores operation after a power interruption. Built-in protective functions include compressor overload protection, a high-pressure switch, an anti-freezing thermistor, and a compressor time-delay program. The WPC-5000 platform requires a single-phase 208/230V, 60Hz electrical supply and uses a NEMA 6-15P plug with a 14 AWG power cord. Manufacturer specifications list 11 amps of rated current and a 15-amp fuse size. Verify the equipment nameplate and applicable electrical requirements before installation, and connect the unit to a compatible, properly grounded receptacle. Do not use an undersized circuit, and follow the manufacturer's electrical safety instructions.

Commercial and Industrial Applications

The AmeriCool WPC-5000PD is designed for supplemental cooling in factories, industrial workplaces, computer rooms, industrial kitchens, multi-workstation environments, special events, and emergency cooling applications. Its 21,000 BTU/h cooling capacity provides targeted temperature control where central HVAC systems are insufficient or a permanent installation is impractical. Dedicated spot-cooling and room-cooling modes allow the system to address localized heat loads or smaller enclosed spaces. Its portable configuration supports temporary deployment as cooling requirements change. Application suitability depends on the calculated heat load, ambient temperature, ventilation, electrical service, condensate management, and the availability of a suitable condenser exhaust route.

Mobility and Deployment

The AmeriCool WPC-5000PD incorporates four caster wheels and side handles to support movement between suitable cooling locations. Before relocating the unit, switch it off, disconnect the electrical supply, and empty the condensate tank as necessary. Secure or disconnect exhaust and supply-air ducting before moving the appliance. Position the unit on a level floor, lock the caster brakes, and maintain the manufacturer's required clearance from surrounding objects. Ensure that the electrical connection, airflow passages, and exhaust duct are correctly arranged before restarting operation. Transport and store the unit upright in accordance with the manufacturer's instructions.

Service and Maintenance

The AmeriCool WPC-5000PD features washable filters and a self-diagnostic control system to support routine maintenance and troubleshooting. The WPC-5000 platform includes separate evaporator and condenser filters that should be inspected and cleaned regularly. The manufacturer recommends cleaning the filters at least every two weeks to help maintain airflow, cooling performance, and energy efficiency. Filters can be vacuumed or washed with warm water and mild detergent when necessary, and must be completely dry before reinstallation. Never operate the unit without its filters installed. Periodically inspect the condenser exhaust duct for restrictions, check the condensate tank and drainage components, and respond to diagnostic alarms according to the owner's manual. Before cleaning or servicing the unit, switch it off and disconnect the electrical supply. Refrigeration-system repairs and electrical servicing should be performed by qualified personnel.

Warranty

Warranty coverage for the AmeriCool WPC-5000PD is subject to the applicable manufacturer's terms, conditions, and exclusions. Confirm the exact parts, labor, and compressor coverage periods, registration requirements, and service procedures using the official AmeriCool warranty documentation supplied with the unit or available through AmeriCool technical support. Retain the purchase receipt, complete model number, and serial number for warranty verification and service requests.

Recommended Accessories

• Optional Condensate Drain Pump Kit – Supports automatic condensate removal for compatible configurations requiring continuous drainage. Confirm the correct kit and installation requirements with AmeriCool before ordering.
• Evaporator Plenum – Optional accessory that fits over the evaporator to support ducted airflow configurations; verify compatibility with the WPC-5000PD.
• Condenser Plenum – Optional accessory that supports ducting condenser air in compatible installations; confirm the required configuration against the manufacturer's installation documentation.

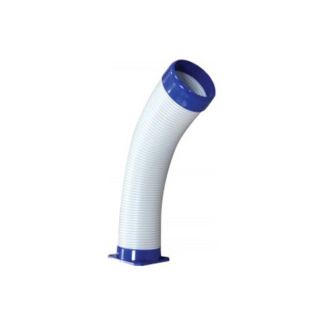

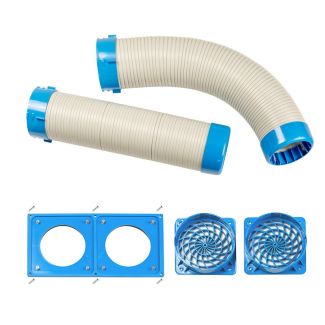

• Compatible Cold-Air Supply Ducts – Support targeted delivery of conditioned air to workstations or equipment when configured within the manufacturer's specified duct-length limits.

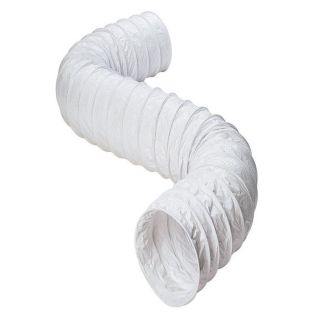

• 12-Inch Hot-Air Exhaust Duct – Provides the specified diameter for routing warm condenser air away from the conditioned space. Follow the manufacturer's maximum duct-length and installation requirements.

Flexible, High-Capacity Spot Cooling with the AmeriCool WPC-5000PD

Experience targeted supplemental cooling with the AmeriCool WPC-5000PD portable air conditioner. Combining 21,000 BTU/h of cooling capacity with dedicated spot-cooling and room-cooling modes, two-speed airflow, digital temperature controls, washable filters, automatic restart, and portable caster-wheel mobility, this self-contained cooling system provides flexible temperature control for factories, computer rooms, industrial kitchens, workstations, special events, and other commercial and industrial environments requiring dependable supplemental cooling.
