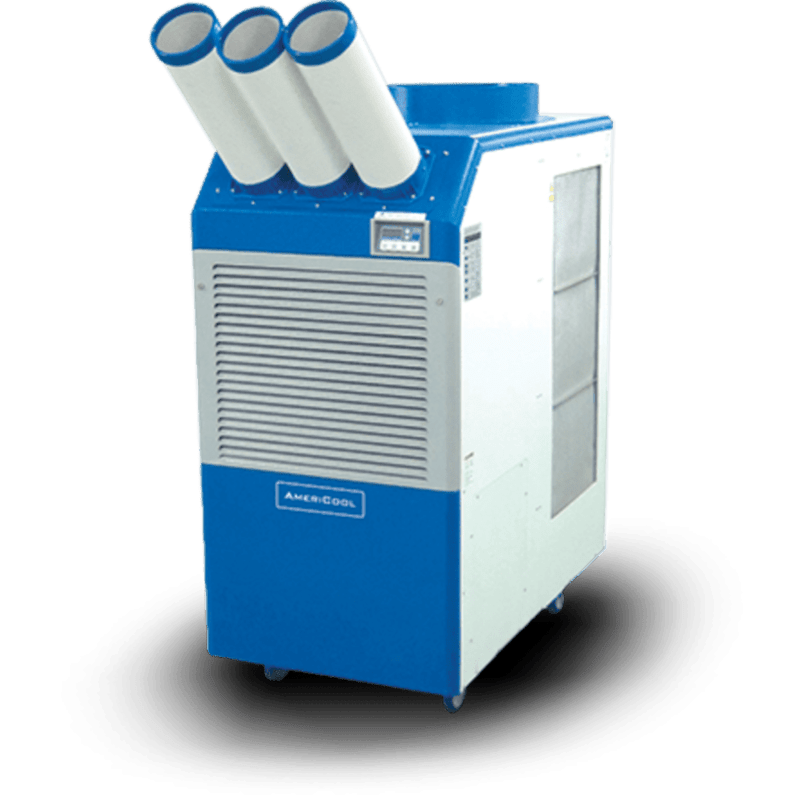

AmeriCool 7.5 Ton 10,000 BTU Portable Air Conditioner | 460V - R410A

High Capacity 7.5 Ton Portable Air Conditioner with 92,000 BTU/h Cooling Capacity for Commercial and Industrial Applications – AmeriCool WPC-23000R

The AmeriCool WPC-23000R is a high-capacity portable air conditioner designed to provide targeted cooling for demanding commercial, industrial, and temporary cooling applications. Delivering 92,000 BTU/h of nominal cooling capacity, this self-contained cooling system combines spot-cooling and room-cooling thermostat settings, three included 6-inch cold-air nozzles, and flexible ducting options to provide supplemental temperature control without requiring a permanent HVAC installation. Its portable construction allows cooling to be deployed where needed, making it suitable for computer rooms, hospitals, manufacturing facilities, process cooling, multi-workstation environments, special events, and emergency cooling requirements.

Key Benefits

• 92,000 BTU/h Cooling Capacity – Provides high-capacity supplemental cooling for demanding commercial and industrial environments.
• Spot and Room Cooling Settings – Supports targeted cooling for specific equipment or work areas and temperature control for enclosed spaces.
• Three 6-Inch Cold-Air Nozzles – Directs conditioned air toward selected workstations, employees, or equipment locations.
• Alternative Air Distribution – Allows the cold-air nozzles to be replaced with the included air grille for a different air delivery configuration.
• Ducted Condenser Exhaust – Uses a 20-inch hot-air exhaust connection to route warm condenser air away from the conditioned space.
• Automatic Condensate Pump – Removes collected condensate during cooling operation, reducing the need for manual tank emptying.
• Three-Phase Electrical Connection – Operates on a 460V, 60Hz, three-phase electrical supply for demanding commercial and industrial applications.
• Automatic Restart – Automatically restarts after a power interruption when electrical power is restored.

High-Capacity Cooling Performance

The AmeriCool WPC-23000R delivers 92,000 BTU/h of nominal cooling capacity, equivalent to approximately 7.7 tons of refrigeration. The unit operates on a 460V, three-phase, 60Hz electrical supply and uses R-410A refrigerant, with a specified charge of 141.1 oz. AmeriCool's published product specifications list power consumption of 10.5 kW and current consumption of 17.2 amps. The specified ambient operating range is 64°F to 113°F. These performance characteristics make the WPC-23000R suitable for substantial supplemental cooling loads in commercial and industrial environments. Actual cooling performance depends on ambient conditions, heat load, airflow, and installation configuration.

Spot Cooling and Targeted Temperature Control

The AmeriCool WPC-23000R features dedicated spot-cooling and room-cooling thermostat settings to accommodate different cooling requirements. Spot cooling directs conditioned air toward specific equipment, employees, or workstations, while room cooling supports temperature control based on the air returning to the unit. Three included 6-inch cold-air nozzles allow cooled air to be directed toward selected locations. The included air grille provides an alternative air distribution configuration when the nozzles are not required. This flexibility is useful in environments where cooling an entire facility is impractical or where concentrated heat loads require additional temperature control. When operating in an enclosed room, warm condenser air must be exhausted outside the conditioned space to prevent heat buildup and maintain effective cooling performance.

Airflow and Distribution

The AmeriCool WPC-23000R provides evaporator airflow of 2,980 CFM and condenser airflow of 4,250 CFM according to the manufacturer's published product specifications. Three included 6-inch cold-air nozzles support targeted cooling, while the included air grille provides an alternative air distribution arrangement. An optional 6-inch by 20-inch cool-air duct assembly is available for compatible configurations. The unit uses a 20-inch hot-air exhaust duct connection to discharge warm condenser air. AmeriCool's product documentation lists maximum hot-air exhaust and cold-air supply duct lengths of up to 100 feet and 60 feet, respectively, in certain published specifications. The current product webpage lists shorter maximum duct lengths for the WPC-23000 model. Confirm the allowable duct lengths for the specific unit revision before installation, and follow the applicable manufacturer's instructions for duct sizing, routing, and clearances.

Portable Design and Flexible Installation

The self-contained AmeriCool WPC-23000R provides portable cooling for locations requiring substantial supplemental temperature control without a permanent central HVAC installation. The unit measures approximately 28.9 inches wide, 51.6 inches deep, and 59.8 inches high, with a listed weight of approximately 761 pounds. Its portable construction supports deployment in suitable commercial and industrial spaces, while the 20-inch hot-air exhaust connection allows warm condenser air to be routed away from the conditioned area. Provide adequate clearance around the air intake, condenser, and service panels, and ensure that the exhaust duct is installed according to the manufacturer's instructions. Due to its weight, appropriate material-handling equipment and safe lifting procedures are required for relocation and installation.

Condensate Management

The AmeriCool WPC-23000R includes an automatic condensate pump to remove moisture collected during cooling operation. As the unit cools the air, moisture condenses and must be discharged through the condensate drainage system. The automatic pump helps manage condensate without relying solely on manual collection-tank emptying. Proper installation of the condensate discharge line is essential for reliable drainage. Follow the manufacturer's instructions for hose routing, drainage connections, and allowable lift, and periodically inspect the pump and discharge line for obstructions or leaks. Confirm the appropriate replacement pump and drainage accessories for the WPC-23000R when servicing the unit.

Controls, Comfort and Electrical Connection

The AmeriCool WPC-23000R supports spot-cooling and room-cooling operation and incorporates an automatic restart function that allows the unit to resume operation after power returns following an interruption. The unit requires a 460V, three-phase, 60Hz electrical supply and uses a terminal-type electrical connection rather than a standard residential plug. AmeriCool's published product specifications list current consumption of 17.2 amps and power consumption of 10.5 kW. The manufacturer's website and technical documents show different circuit protection ratings across published specifications, so the required circuit breaker, conductor sizing, and disconnecting means must be confirmed against the documentation supplied with the specific unit. Verify grounding and phase sequence before operation. Electrical installation must comply with applicable codes and be performed by qualified personnel.

Commercial and Industrial Applications

The AmeriCool WPC-23000R is designed for commercial and industrial environments requiring high-capacity portable cooling, including computer rooms, server rooms, hospitals, manufacturing facilities, process-cooling applications, multi-workstation areas, special events, and emergency or short-term cooling requirements. Its 92,000 BTU/h cooling capacity supports substantial localized heat loads and demanding cooling applications. The combination of spot-cooling and room-cooling thermostat settings provides flexibility for different environments, while its ducted exhaust configuration allows warm condenser air to be routed away from the conditioned space. The unit is particularly useful where supplemental cooling is needed quickly or a permanent HVAC installation is impractical.

Mobility and Deployment

The AmeriCool WPC-23000R is designed for portable deployment within suitable commercial and industrial environments. Its self-contained construction allows cooling to be provided where needed without permanent HVAC integration. With a listed weight of approximately 761 pounds, the unit requires appropriate material-handling equipment and a stable, level installation surface. Before relocation, switch off the unit, disconnect the electrical supply, and safely disconnect or secure the exhaust and condensate connections. Follow the manufacturer's handling and lifting instructions when moving the unit. After positioning, verify that the air intake is unobstructed, the exhaust duct is properly installed, and the electrical supply meets the unit's requirements.

Service and Maintenance

The AmeriCool WPC-23000R supports routine maintenance through serviceable air filtration components, an automatic condensate pump, and accessible operating connections. AmeriCool lists vinyl chloride evaporator filters and aluminum condenser filters as available accessories for this product series. Regularly inspect and clean the filters according to the manufacturer's instructions to help maintain airflow and cooling performance. Keep the condenser surface and ventilation openings free of dust and obstructions, inspect exhaust duct connections, and periodically check the condensate pump and discharge line. Before cleaning or servicing the unit, switch it off and disconnect the electrical supply. Follow the manufacturer's maintenance schedule and troubleshooting procedures, and refer refrigeration-system and electrical repairs to qualified service personnel.

Warranty

AmeriCool's published product catalog specifies a one-year parts-and-labor warranty for the complete unit and three years of parts-and-labor coverage for the compressor. Warranty coverage is subject to the manufacturer's applicable terms, conditions, and exclusions. Refer to the official warranty documentation supplied with the specific WPC-23000R unit to confirm coverage requirements, exclusions, and service procedures.

Recommended Accessories

• 6-Inch x 20-Inch Cool-Air Duct Assembly – An optional accessory for directing cooled air toward selected work areas; verify the required configuration and quantity before ordering.
• Vinyl Chloride Evaporator Filter – A manufacturer-listed accessory for evaporator air filtration and routine maintenance.
• Aluminum Condenser Filter – A manufacturer-listed accessory for condenser air filtration and maintenance.
• Condensate Pump – Included with the WPC-23000R according to AmeriCool's product specifications; verify the compatible replacement pump and discharge requirements if servicing is required.
• 20-Inch Exhaust Duct Flange – An optional accessory for connecting the hot-air exhaust duct to the unit.
• 20-Inch Flexible Exhaust Duct – Routes warm condenser air away from the conditioned space; follow the manufacturer's specified duct diameter and allowable length for the applicable unit revision.

High-Capacity Portable Cooling with the AmeriCool WPC-23000R

Experience flexible, targeted cooling with the AmeriCool WPC-23000R portable air conditioner. Combining 92,000 BTU/h of cooling capacity with spot-cooling and room-cooling thermostat settings, three 6-inch cold-air nozzles, high-volume airflow, and an automatic condensate pump, this high-capacity portable air-conditioning system provides supplemental temperature control for commercial facilities, industrial workspaces, server rooms, manufacturing environments, process-cooling applications, and temporary cooling requirements.

No Return Policy

All AmeriCool commercial unit sales are final and are non-refundable.

Please Note: This unit does not currently have any remote control options available
