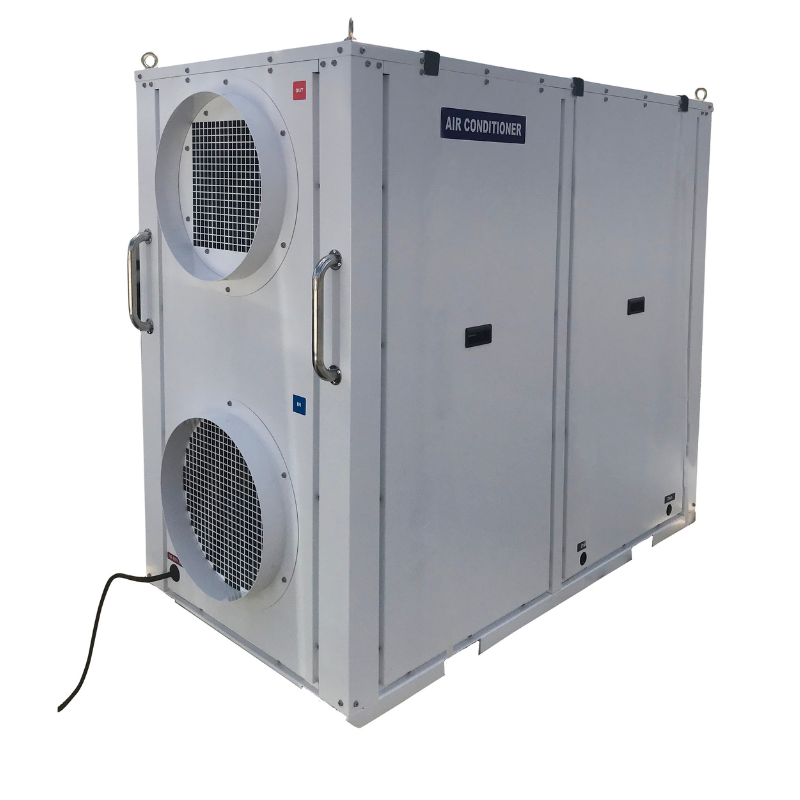

AmeriCool 12 Ton 144,400 BTU Portable Outdoor Air Conditioner | 460V - R410A

High-Capacity 12 Ton 144,400 BTU Portable Air Conditioner for Commercial and Industrial Environments with Integrated Indoor and Outdoor Components

The AmeriCool WPC-12RT is a 144,400 BTU/h (12-ton) portable air conditioner designed to provide high-capacity supplemental cooling for commercial facilities, manufacturing plants, warehouses, process cooling applications, computer rooms, hospitals, and other demanding environments. Combining an integrated indoor and outdoor refrigeration system with extendable duct connections, durable metal construction, and a portable configuration, this cooling system delivers targeted spot cooling or supplemental room cooling without requiring a conventional permanent HVAC installation. The WPC-12RT uses R-410A refrigerant and operates on a 460V, three-phase, 60 Hz electrical supply. Its high cooling capacity and flexible ducting configuration make it suitable for large work areas, multiworkstation cooling, temporary cooling requirements, and facilities requiring a deployable commercial air-conditioning solution.

Key Benefits

• 144,400 BTU/h Cooling Performance – Provides 12 tons of nominal cooling capacity for large commercial and industrial environments requiring substantial supplemental cooling.
• Spot and Room Cooling Modes – Supports targeted cooling for personnel and equipment or supplemental cooling for a larger enclosed area.
• Integrated Indoor and Outdoor Components – Combines the indoor and outdoor refrigeration components into one system, simplifying deployment compared with separate permanently installed equipment.
• High-Volume Airflow – Provides approximately 4,000 CFM of evaporator airflow to distribute conditioned air through compatible ducting.
• Extendable Duct Connections – Supports flexible cold-air delivery and warm-air exhaust routing for different installation requirements.
• Durable Metal Construction – Provides a robust cabinet for demanding commercial and industrial applications.
• Three-Phase Electrical Connection – Operates on a 460V, three-phase, 60 Hz electrical supply for compatible industrial facilities.
• Self-Diagnostic Function – Helps identify operating faults and supports troubleshooting and maintenance.

144,400 BTU Cooling Performance and Refrigeration Technology

The AmeriCool WPC-12RT provides a nominal cooling capacity of 144,400 BTU/h, equivalent to approximately 12 tons of refrigeration. Its integrated air-cooled refrigeration system uses R-410A refrigerant to deliver supplemental cooling for large commercial and industrial work areas. The manufacturer specifies an operating ambient temperature range of 64°F to 113°F, allowing the unit to serve demanding applications where conventional comfort air-conditioning equipment may not be practical. Actual cooling coverage depends on the ambient temperature, equipment heat loads, occupancy, insulation, ventilation, and other environmental conditions. The WPC-12RT is intended for applications such as process cooling, multiworkstation cooling, computer rooms, hospitals, special events, and emergency temporary cooling requirements.

Spot Cooling and Targeted Temperature Control

The AmeriCool WPC-12RT supports spot cooling and room cooling thermostat settings, allowing users to select an operating configuration appropriate for the application. In spot cooling applications, compatible cold-air ducting can direct conditioned air toward personnel, equipment, machinery, and designated work areas. For room cooling, the unit can supply conditioned air to an enclosed space through an appropriate duct arrangement. Its integrated indoor and outdoor construction simplifies deployment, while extendable duct connections provide flexibility in positioning the equipment and directing airflow. When the unit is used indoors, the warm condenser exhaust must be routed outside the cooled space or to another appropriate heat-rejection location to prevent unwanted heat buildup.

Airflow and Distribution

The AmeriCool WPC-12RT provides approximately 4,000 CFM of evaporator airflow for high-capacity conditioned-air distribution. Its duct connections allow cooled air to be directed toward selected work areas or supplied to a larger enclosed space, depending on the installation configuration. The condenser system provides approximately 6,500 CFM of airflow for heat rejection. The manufacturer specifies an 18-inch hot-air exhaust duct diameter and a maximum hot-air exhaust duct length of approximately 50 feet. The maximum cold-air duct length is also approximately 50 feet, subject to the manufacturer's installation requirements and applicable duct configuration. Proper duct sizing, unobstructed air inlets, and appropriate exhaust routing are essential for maintaining cooling performance.

Portable Design and Flexible Installation

The AmeriCool WPC-12RT features an integrated indoor and outdoor design that supports temporary cooling deployments without requiring a conventional split-system installation. The manufacturer's published dimensions are approximately 34.25 inches wide, 75 inches deep, and 70.9 inches high, with a net weight of approximately 1,168 pounds. Its durable metal construction is intended for demanding commercial and industrial environments. The unit requires a 460V, three-phase, 60 Hz electrical supply, with a full-load current rating of 24 amps. The manufacturer's product page lists a 30-amp circuit breaker, while published brochure specifications list a 50-amp breaker size; therefore, the applicable overcurrent protection and conductor sizing must be confirmed against the current model-specific nameplate and installation documentation before installation. The WPC-12RT uses a cam-lock electrical connection rather than a conventional residential plug. Installation requires suitable industrial electrical service, adequate floor load capacity, sufficient airflow clearance, and appropriate cold-air and warm-air duct routing.

Condensate Management

The AmeriCool WPC-12RT does not have a published condensate collection tank capacity in the manufacturer's available product specifications. Condensate management must therefore be configured according to the manufacturer's installation instructions and the supplied equipment configuration. The owner documentation for the associated WPC-36003 platform identifies an optional drain pump kit; however, the correct condensate drainage arrangement and pump compatibility should be verified specifically for the WPC-12RT before ordering accessories or installing the unit. Proper condensate drainage is important for reliable operation, particularly in applications involving extended cooling periods or high indoor humidity.

Controls, Comfort, and Electrical Connection

The AmeriCool WPC-12RT includes temperature control, spot and room cooling settings, an off timer, and a self-diagnostic function. The manufacturer also documents washable air filters, a Celsius temperature display, compressor overload protection, an anti-freezing thermistor, automatic restart after a power interruption, a compressor time-delay program, and a high-pressure switch in the associated WPC-36003 owner documentation. These functions support operating control, equipment protection, and routine troubleshooting. The WPC-12RT requires a 460V, three-phase, 60 Hz electrical supply. The manufacturer's product page specifies a full-load current of 24 amps and a 30-amp circuit breaker, while the published brochure lists 24 amps and a 50-amp breaker. The manufacturer's owner documentation for the associated WPC-36003 platform lists a power consumption rating of 21.5 kW and a rated current of 27 amps, which differs from the current WPC-12RT webpage and brochure figures. Electrical requirements must be verified against the exact unit nameplate and current manufacturer-approved installation documentation. A compatible cam-lock connection, appropriate overcurrent protection, grounding, and disconnect provisions must be provided by qualified electrical personnel in accordance with applicable codes.

Commercial and Industrial Applications

The AmeriCool WPC-12RT is designed for high-capacity supplemental cooling in commercial and industrial environments. Manufacturer-identified applications include computer rooms, hospitals, process cooling, multiworkstation cooling, special events, and emergency short-term cooling. Its 144,400 BTU/h cooling capacity supports applications with substantial heat loads, while its integrated indoor and outdoor configuration simplifies deployment compared with equipment requiring separately installed indoor and outdoor sections. Extendable cold-air and warm-air duct connections provide flexibility for temporary cooling projects, industrial work areas, and facilities where a permanent HVAC installation is impractical. Proper electrical service, exhaust ventilation, floor support, and maintenance access must be provided for reliable operation.

Mobility and Deployment

The AmeriCool WPC-12RT is designed as a portable commercial cooling system for temporary or changing cooling requirements. Its integrated indoor and outdoor construction reduces the need to coordinate separate refrigeration-system components during deployment. Extendable ducting supports flexible placement and allows conditioned air and warm condenser exhaust to be routed to suitable locations. Because the unit has a published net weight of approximately 1,168 pounds, relocation requires suitable handling equipment, an appropriate transport route, and floor conditions capable of supporting the equipment. Before deployment, verify access clearances, floor load capacity, electrical service, duct lengths, exhaust discharge location, and service access.

Service and Maintenance

The AmeriCool WPC-12RT features washable air filters and a self-diagnostic function to support routine maintenance and troubleshooting. Filters should be inspected and cleaned regularly according to the operating environment and dust loading. The evaporator and condenser air inlets, cold-air ducting, and warm-air exhaust must remain unobstructed to maintain proper airflow and heat transfer. The manufacturer documents compressor overload protection, an anti-freezing thermistor, automatic restart after a power interruption, a compressor time-delay program, and a high-pressure switch in the associated WPC-36003 owner documentation. The condensate drainage arrangement should also be inspected and maintained according to the approved installation configuration. Disconnect the electrical supply before performing maintenance and follow the manufacturer's instructions for cleaning, inspection, and servicing.

Warranty

The AmeriCool WPC-12RT is subject to the manufacturer's limited warranty terms and conditions. Warranty duration, parts coverage, labor coverage, compressor coverage, registration requirements, and exclusions should be confirmed against the current AmeriCool warranty documentation applicable to this model. Proof of purchase and compliance with the manufacturer's installation, operating, and maintenance requirements may be required for warranty service. Confirm the precise warranty coverage with AmeriCool or an authorized distributor before purchase.

Recommended Accessories

• 18-Inch Warm-Air Exhaust Duct – Compatible exhaust ducting for routing condenser heat away from the cooled space; verify the required duct length and installation configuration.
• Cold-Air Supply Ducting – Compatible extendable ducting for directing conditioned air toward equipment, workstations, or designated cooling zones; confirm the correct duct diameter and maximum permitted length.
• Exhaust Duct Installation Accessories – Compatible duct adapters, flanges, and installation components for connecting the warm-air exhaust to an appropriate discharge location.
• Condensate Drain Pump Kit – Verify the availability and compatibility of an optional condensate pump specifically approved for the WPC-12RT before ordering.
• Replacement Washable Air Filters – Compatible replacement filters for routine maintenance; confirm filter dimensions and model compatibility with AmeriCool.

High-Capacity Portable Cooling with the AmeriCool WPC-12RT

Experience high-capacity supplemental cooling with the AmeriCool WPC-12RT portable air conditioner. Combining 144,400 BTU/h of cooling capacity with an integrated indoor and outdoor refrigeration system, high-volume airflow, extendable duct connections, durable metal construction, and self-diagnostic functionality, this 12-ton portable cooling system provides flexible temperature control for computer rooms, hospitals, process cooling applications, multiworkstation environments, special events, and emergency cooling requirements. Its integrated design and ducting flexibility make it a practical solution for large commercial and industrial applications where temporary cooling is required without a conventional permanent HVAC installation.

No Return Policy

All AmeriCool commercial unit sales are final and are non-refundable.
