Atmosphere AC Current Switch - 5-minutes delay

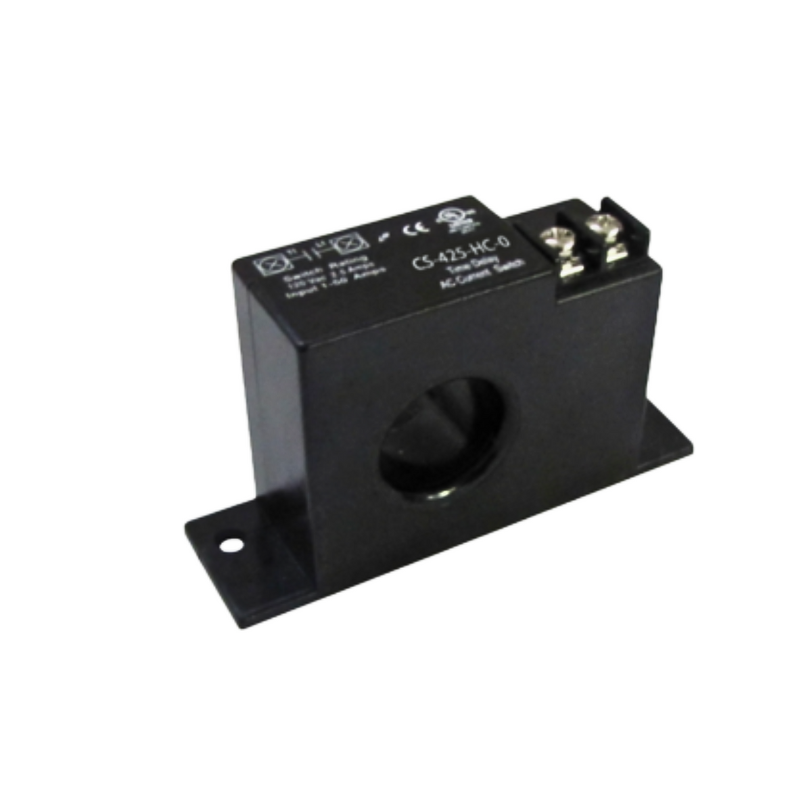

The ACS-5 product is a solid-state current switch with N.O. Triac outputs to control high-current line-voltage AC loads. The ACS-5 model has a factory set trip level of approximately 1 Amp and requires no field adjustment for easy installation. Internal circuits are powered by induction from the line being monitored and is cULu certified.

Design Features:

• Self-powered and no insertion loss
• True digital switching and no leakage
• Small compact size
• Input / Output isolation via current transformer
• Solid-state reliability
• Solid, reliable mounting method

Applications:

• Direct control of AC loads, such as dryer booster fans, in response to the current of a monitored AC circuit.

Specifications:

• Maximum Core Current: 50 Amps
• Operating Temperature: 0 to 40°C (32° to 104°F)
• Trip Set-Point: Approximately 1 Amp
• Enclosure Size (H x W x D): 49 x 87 x 25mm (1.95” x 3.45“ x 1”)
• AC Conductor Hole: 20mm (0.8“) Diameter
• Switch Rating: 120 Vac @ 2.5 Amps Max.
• Turn on time: <200 mS
• ACS-5 turn off time: 5 minutes (factory set)
• Operating Humidity: 0 - 95% RH non-condensing
• Material: UL 94V-0 flammability rated ABS Insulation Class 600V
• Mounting Holes: 2 x 5mm holes spaced 76mm on base (2 x 0.19” holes spaced 3” on base)
• Switch Type: Solid-state triac
• Off-state Leakage: <1 mA
