Today's Hours 8am - 11pm estBAFCON Controller Kit
Ships in 10 Business Days
By
Big Ass Fans
In stock
Model
C-CON-00-08-10-X1
ID
237583
$700.00
Product Features

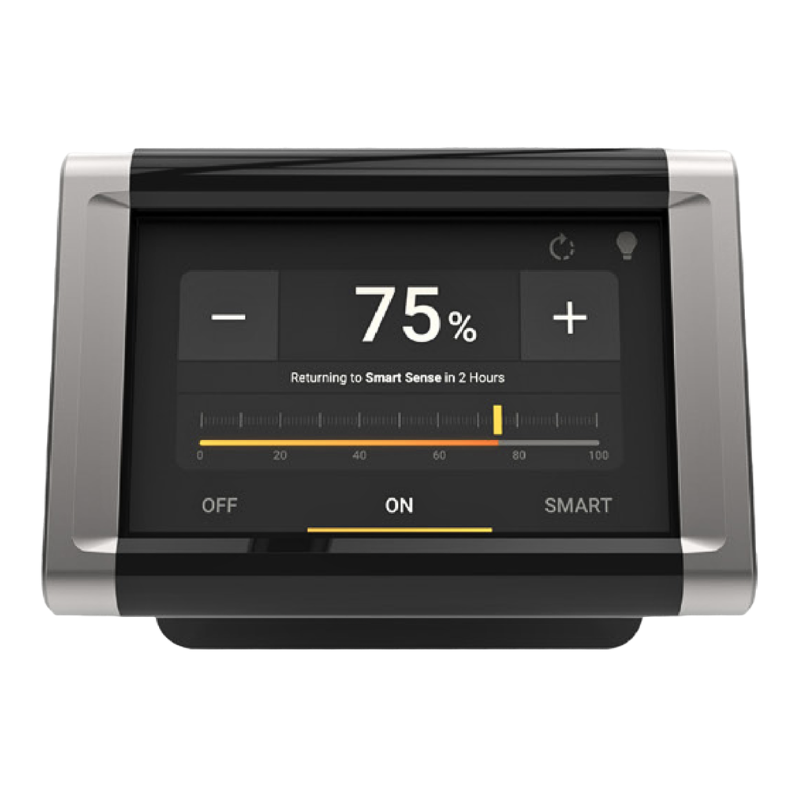

- Display: Intuitive resistive touchscreen with LED backlight
- Smart Automation: SmartSense technology automatically adjusts fan speed based on temperature and humidity
- Fan Controls: On/Off, speed, and fan direction control
- Integration: BACnet-compatible with 0–10 V control support
Smart Multi-Fan Controller Delivering Automated Comfort, Energy-Efficient Operation, and Intuitive Touchscreen Control

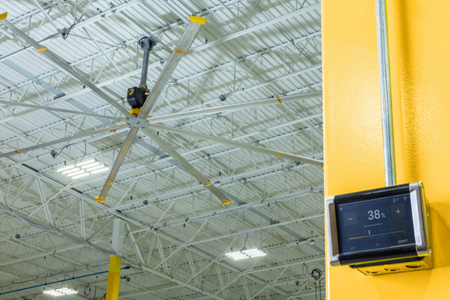

Simplify fan management with the Big Ass Fans BAFCon Controller Kit. This wall-mounted touchscreen controller provides centralized control of compatible Big Ass Fans, allowing you to manage individual fans, zones, or an entire network from one intuitive interface. Ideal for industrial and commercial facilities, BAFCon makes controlling multiple fans simple and efficient.
With SmartSense™ technology, the controller automatically adjusts fan speed based on temperature and humidity for consistent comfort and efficient operation. It also features programmable scheduling and supports BACnet®, RJ45, and 0–10V integration for compatibility with building management systems.
Features & Benefits
- Centralized Fan Control: Manage up to 24 compatible Big Ass Fans individually, by zone, or as a complete network from a single touchscreen controller.
- SmartSenseâ„¢ Technology: Automatically adjusts fan speed based on temperature and humidity for consistent comfort and efficient operation.
- Programmable Scheduling: Create up to four custom schedules to automate fan operation throughout the day.
- Building Management System Integration: Supports BACnet®, RJ45 communication, and 0–10V control for seamless integration with compatible building automation systems.
- Intuitive Touchscreen Interface: Responsive color touchscreen with fan naming and grouping capabilities for easy monitoring and control.
- Compatible with Select Big Ass Fans: Designed for use with compatible models, including Powerfoil® 6, Powerfoil® X4, Powerfoil® D, AirEye®, and Hornet™.
Warranty Information
Big Ass Fans provides warranty coverage for electrical and electronic components, including applicable controllers and accessories, against defects in materials and workmanship under normal use and maintenance when installed and operated according to the manufacturer's instructions. Warranty coverage is subject to the applicable product warranty period and all terms, conditions, limitations, and exclusions outlined by Big Ass Fans.
For complete warranty details, coverage requirements, and exclusions, please refer to the Big Ass Fans Warranty Document.
Suitable Applications for the Big Ass Fans BAFCon Controller
The BAFCon Controller Kit is ideal for facilities that require centralized control and automated management of multiple compatible Big Ass Fans, including:
- Warehouses, distribution centers, and manufacturing facilities
- Commercial buildings, offices, retail stores, and showrooms
- Gyms, fitness centers, and recreational facilities
- Restaurants, hospitality venues, and event spaces
- Large facilities requiring scheduled operation or building management system integration
Smart and Intuitive Fan Control

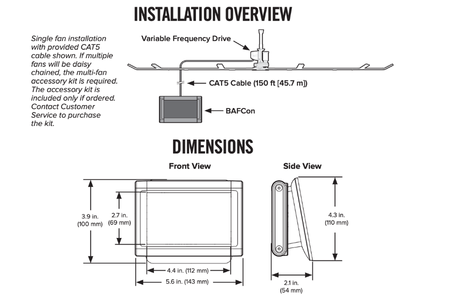

The BAFCon Controller Kit provides centralized control for up to eight compatible Big Ass Fans through an intuitive touchscreen interface housed in a sleek metal and ABS enclosure. SmartSense technology uses temperature and humidity data to automatically adjust fan speeds based on changing conditions, while built-in scheduling allows users to program fan operation around their facility's needs. The controller also supports building management system integration through BACnet and 0–10 V control, providing a convenient way to manage multiple compatible fans and automate their operation from a single location.
