Berner AI08 Architectural Icon 8 - 60" - Unheated - 120/1/60 - Anodized Aluminum

Architectural Air Curtain for Environmental Separation and Insect Control

The Berner Architectural Icon 8 Air Curtain is designed for commercial main entrances and other door openings where environmental separation and flying insect control are important. Recommended for mounting heights up to 8 feet for environmental separation and 7 feet for insect control, the AI08 creates a controlled air stream across open doorways to help separate interior and exterior environments while allowing convenient access through the opening. Its architectural design is well suited for main entrances and other commercial openings where quiet operation, energy efficiency, and a clean appearance are important.

The AI08 is available in ambient, unheated configurations as well as electric, steam, and hot water heated configurations, with single lengths from 36 to 120 inches and one- or two-motor configurations depending on the model. Standard models use 1/5 hp AC motor(s) with ten-speed operation, while optional EC motor(s) are also available. The series features a factory-installed Intelliswitch™ digital controller, an 8 1/4-inch-high by 16-inch-deep cabinet, and a high-efficiency, low-noise, articulating three-vane Pro-V Nozzle. The standard exterior is clear satin anodized aluminum, with optional stainless steel or custom-color finishes available. The AI08 supports wall or top mounting and includes a washable filter.

Berner AI08 Architectural Air Curtain Features & Benefits

• Architectural Design: Designed for commercial main entrances and other openings where environmental separation, flying insect control, quiet operation, energy efficiency, and an attractive appearance are important.
• Mounting Height: Recommended for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.
• Ambient and Heated Options: Available in ambient, unheated configurations as well as electric, steam, and hot water heated configurations.
• Ten-Speed Motor Operation: Standard models feature 1/5 hp AC motor(s) with ten-speed operation, with one- or two-motor configurations depending on the model.
• Optional EC Motors: Optional EC motor(s) with ten-speed operation are available.
• Multiple Length Options: Available in single lengths from 36 to 120 inches, with one- or two-motor configurations depending on the model.
• Intelliswitch™ Digital Controller: Includes a factory-installed Intelliswitch™ digital controller with a ten-speed control system, LED clock display, low-voltage circuit for unit activation, external thermostat provision, and Comfort Plus provision.
• Energy Code Support: AMCA-certified air curtain ratings support the vestibule exception requirements of applicable energy codes, including ASHRAE 90.1-2019, IECC 2018, and ASHRAE 189.1.
• High-Efficiency Pro-V Nozzle: Features a high-efficiency, low-noise, articulating three-vane Pro-V Nozzle designed to provide controlled airflow across the opening.

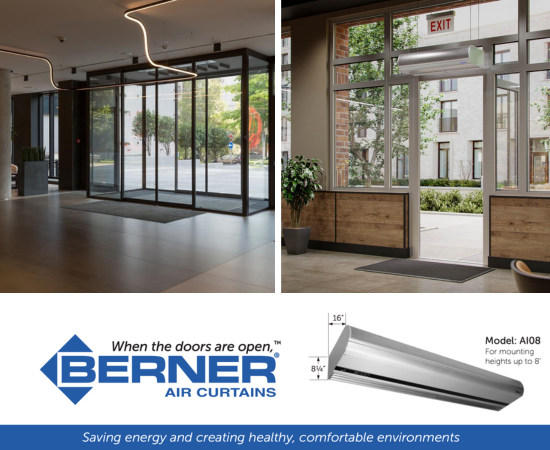

• Durable Cabinet: Features an 8 1/4-inch-high by 16-inch-deep cabinet with a clear satin anodized aluminum exterior.
• Flexible Mounting: Supports wall or top mounting and includes factory-installed 1/4-inch threaded inserts for top mounting.
• Multiple Finish Options: Standard clear satin anodized aluminum exterior is available with optional stainless steel or custom-color finishes.
• Washable Filter: Includes a washable filter for convenient maintenance.
• Simple Installation: Designed for straightforward installation with a wall mounting system included and no assembly required.
• Smart Control Option: Berner AIR™ smart controller and app is sold separately and includes BACnet capability.
• Indoor Installation: Designed for indoor mounting only and should be installed on the inside of the building, positioned as close to the top of the door opening as practical.

What's Included

Your purchase includes the Berner Architectural Icon 8 Air Curtain. No assembly is required. A wall mounting system is included, while optional accessories and controls are available separately.

Safety Features

• Secure Mounting Options – Designed for wall or suspended top mounting, with wall mounting brackets and factory-installed 1/4"-20 threaded inserts for secure installation.
• Accessible Service Components – A minimum of 4 inches of clearance is required above the top rear corner of the air curtain for installation and removal of the inlet screen and to ensure proper airflow.
• Indoor Use – The AI08 air curtain is designed for indoor mounting only and shall be mounted on the inside of the building.
• Secure Installation – Mounting hardware supplied by others must be capable of supporting a minimum of three times the weight of the air curtain.
• Electrical Safety – Installation and electrical connections must be performed by qualified personnel in accordance with applicable national, local, and electrical codes. A disconnect switch is required for each branch circuit.

Warranty Information

Berner International provides a 5-year parts warranty on unheated AI08 models and a 2-year parts warranty on heated AI08 models from the original date of shipment, covering defects in workmanship and material, provided the equipment has been properly cared for, installed, and operated in accordance with the manufacturer's instructions and the limits specified on the nameplate.

For complete warranty details, coverage requirements, limitations, and exclusions, please refer to the Berner Warranty Document.

---

Control Options

Activation Device (Required – Sold Separately)

• Door switch
• On/off switch

---

Architectural Design for Commercial Openings

The BERNER Architectural Icon 8 (AI08) Air Curtain is designed to help provide environmental separation and flying insect control at commercial openings. Recommended for mounting heights up to 8 feet for environmental separation and 7 feet for insect control, it features an 8 1/4-inch-high by 16-inch-deep design with 1/5 hp AC motor(s) and ten-speed operation. The AI08 is available in ambient, unheated configurations as well as electric, steam, and hot water heated configurations, with a clear satin anodized aluminum exterior and optional stainless steel or custom-color finishes. It supports wall or top mounting and requires no assembly. Unheated models carry a five-year parts warranty, while heated models carry a two-year parts warranty.

---

Why Choose Berner CHD10 Commercial High Performance 10 Air Curtain?

Environmental Separation and Insect Control

The BERNER CHD10 is designed for commercial openings and recommended for mounting heights up to 10 feet for environmental separation and 8 feet for insect control. It is ideal for service entries and main entrances where environmental separation and flying insect control are important.

High-Performance and Flexible Design

The CHD10 features a 14-inch-high by 15-inch-deep design with 1/2 hp three-speed motor(s). Available in single lengths from 3 to 10 feet, it features a white or black aluminum exterior cover, with optional stainless steel and custom-color finishes available. The CHD10 supports wall or top mounting and requires no assembly.

---

Suitable Applications for Berner AI08 Architectural Icon 8 Air Curtain

• Main Entrances: Designed for commercial main entrance applications where environmental separation and flying insect control are important, with recommended mounting heights up to 8 feet for environmental separation and 7 feet for insect control.
• Commercial Door Openings: Suitable for commercial door openings where an air curtain can help separate indoor and outdoor environments while allowing convenient passage.
• Architectural Applications: Well suited for commercial entrances and other applications where an architectural appearance, quiet operation, and energy efficiency are important.

---
