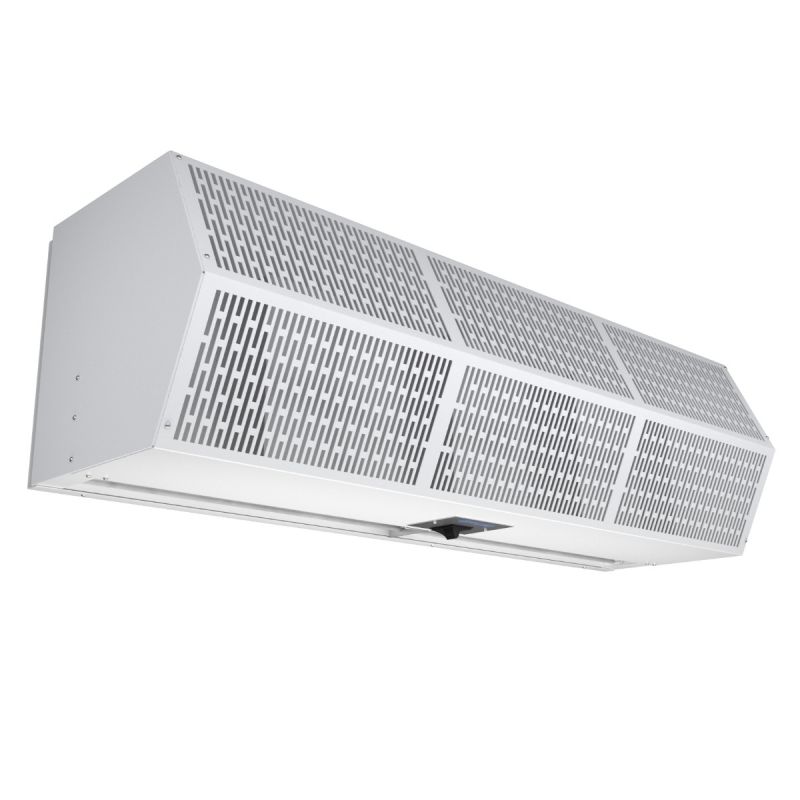

Berner CHD10 Commercial High Performance 10 Air Curtain - 48" - Unheated - 480/3/60 - White

Berner Commercial High Performance 10 Air Curtain

The Commercial Series High Performance Air Curtain is designed for 48” wide doorways of up to 10ft in height for environmental control or 8ft for insect control. Ideal for service doors, ghost kitchens, conveyor systems, shipping doorways, as an alternative to vestibules, main entrances, and other high traffic areas. This air curtain is UL certified, AMCA certified performance, complies with ASHRAE 90.1 requirements, and is made in the USA with a limited 5 year warranty. It creates a steady stream of air over your doorway, keeping outside air separate from your AC or heated air. Features an aluminum housing in white and is designed for indoor mounting only.

Installation & Mounting

Simple to install, operate & maintain

• Single lengths up to 10’
• No Assembly Required
• 1/4” keyhole slots for wall mounting
• 5/16” threaded inserts for top mounting
• Optional: Wall mounting plate

Control Options

Building Automation & Door Controller versions available.

• Basic
• Deluxe
• Comfort Plus – heated units only

Standard Construction

• 14” high x 15” deep
• 1/2hp three-speed motor(s)
• Factory installed fan speed switch
• White or black aluminum exterior cover
• Wall & Top Mounting
• Optional: 3/8” aluminum filter (washable)
• Parts Warranty:
  • Ambient - Five years
  • Heated - Two years
