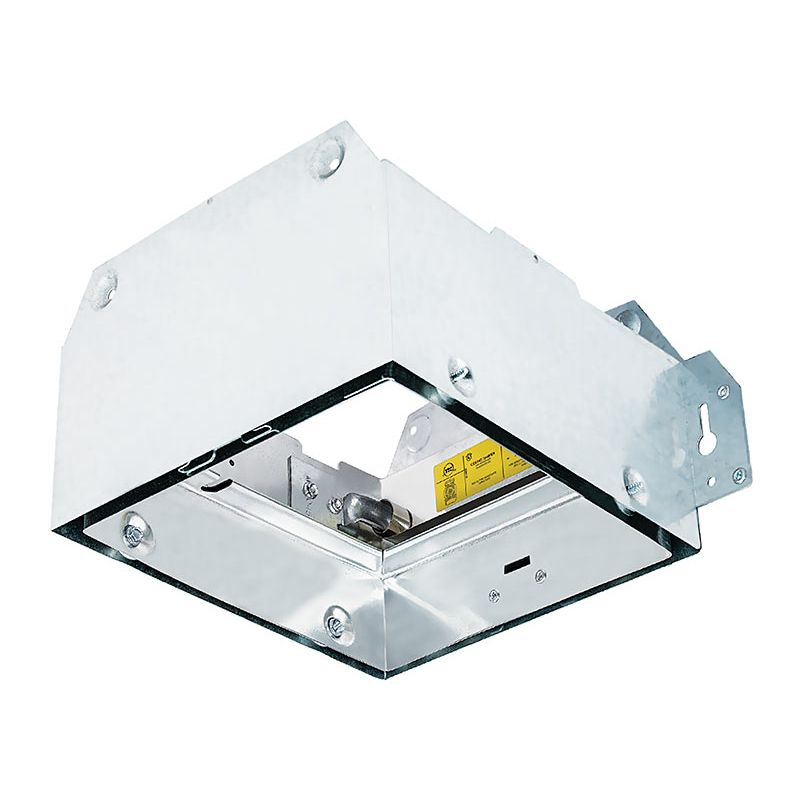

BreezGreenBuilder -- GBR-CRD Ceiling Radiation Damper

Delta BreezGreenBuilder Series

GBR-CRD Ceiling Radiation Damper is UL and cUL listed, and exceeds UL 555C for use in 3-hour fire rated assemblies. GBR-CRD is also Warnock-Hersey certified for use in fire rated floor/ceiling or roof/ceiling assemblies.

The damper employs a folded curtain style blade for point-of-origin control of radiant heat in a ventilation system. GBR-CRD installs horizontally in the ceiling membrane for floor/ceiling or roof/ceiling assemblies with a fire resistance rating up to and including 3 hours.

Features:

• GBR-CRD, Ceiling Radiation Damper helps to limit the radiant heat transfer through an air inlet/outlet opening in the ceiling membrane. Fire resistance is rated up to 3 hours floor/ceiling or roof/ceiling assemblies
• Galvanized steel frame and sleeve
• Folded ceramic curtain blade
• 165°F fusible link
• High temperature, non-asbestos, reinforced fiber thermal fabric
• UL and cUL listed and exceeds UL 555C for use in 3-hour fire rated assemblies
• Warnock-Hersey certified for use in fire rated floor/ceiling or roof/ceiling assemblies.
• Warnock Hersey listing #: 101232214SAT-003,-004
• CSFM listing: 3226-0368:104
• UL 555C listing: R27832
• Meets NFPA Standards: 90A and 101
• Meets Building Code Standards: IBC, NBC, NFPA, SBC, and UBC
• UL listed as fan/damper assembly for the following Wood Frame Construction designs: L521, L546, L558, L562, L574, L576, L581, L583, L585, P522, P533, P538 and P545
• Available for Delta Breez Ventilation Fans: GBR50, GBR50L, GBR80, GBR80H, GBR80HL, GBR80HLED, GBR80L, GBR80LED, GBR80MHL, GBR80MHLED, GBR100, GBR100H, GBR100HL, GBR100HLED, GBR100L and GBR100LED ELT80-110, ELT80-110D, ELT80-110H, ELT80-110MH, ELT80-110LED, ELT80-110DLED, ELT80-110HLED and ELT80-110MHLED
