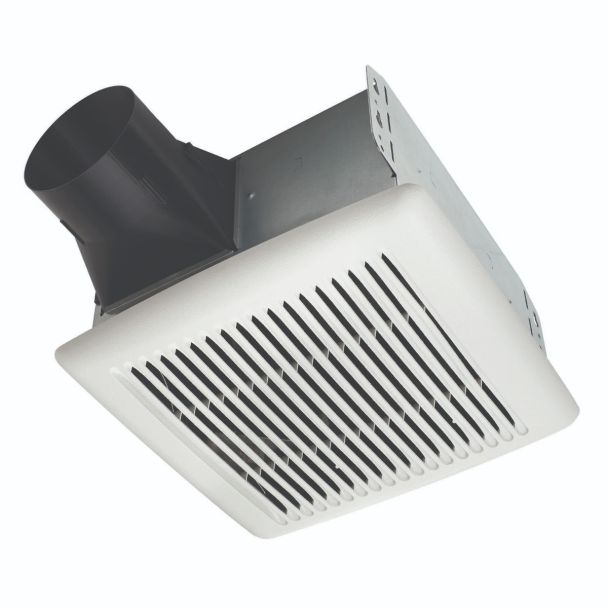

Broan Flex Series 110 CFM 1.0 Sone Ventilation Fan Energy Star
By
Broan
In stock
Model
AE110
ID
153799
$118.00
Product Features
- Rugged steel construction for long-term use
- Ultra-quiet operation
- ENERGY STAR® certified for lower energy use
- Low-profile grille resists dust buildup and is easy to clean
- days
- Hours
- Minutes
- Seconds
OVERVIEW
Enjoy easy exhaust bath fan installation with the Flex Series 80 CFM Ceiling Exhaust Bath Fan, ENERGY STAR®. Room side installation eliminates the need for Attic Access. This ceiling-mounted ventilation fan features foldable mounting ears and an EzDuct™ connector for a fast and simple installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. Operating capabilities allow this fan to run at a powerful 80 CFM and a quiet .7 sones for a smooth run.
Key Features
- 110 CFM – Provides effective ventilation to remove moisture and reduce the risk of mold or mildew in most full bathrooms.
- 1.0 Sones – Ultra-quiet performance so quiet you might not notice it's on.
- TrueSeal™ Damper Technology – Reduces air leakage by up to 50% for improved efficiency.
- EzDuct™ Connector – Allows installation from the room side with no attic access required.
- ENERGY STAR® Certified – Ensures energy-efficient operation and lower utility costs.
- UL Listed – Approved for use over tubs or showers when connected to a GFCI-protected branch circuit (ceiling mount only).
- Coverage – Powerful enough for rooms up to 100 sq. ft.
- Optional Accessories – Galvanized steel duct expander for 6" ducting and installation brackets sold separately.
Warranty Information
The Broan® Flex Series Bathroom Exhaust Fan is backed by Broan-NuTone’s Limited Warranty, which guarantees the product to be free from defects in material and workmanship for one (1) year from the date of original purchase. During this period, Broan-NuTone will, at its option, repair or replace the product or any defective component without charge, excluding the cost of removal, reinstallation, and transportation. This warranty applies only to the original consumer purchaser and the original installation location
The warranty does not cover normal wear and tear, cosmetic damage, light bulbs, filters, fuses, ducts, or accessories sold separately, nor does it cover damage caused by improper installation, misuse, abuse, accidents, lack of maintenance, or acts of nature. Products with altered, defaced, or missing serial numbers are excluded. This warranty provides specific legal rights, and you may also have other rights which vary by state or province.
Premium Materials & Construction
The Broan Flex Series is built for durability and performance. Its housing is made from corrosion-resistant galvanized steel, designed to withstand moisture typical of bathroom environments. It features a permanently lubricated AC motor engineered for continuous operation, which ensures long life with minimal maintenance. The grille is finished in a bright-white coating that closely matches mainstream ceiling paint tones, offering a clean look. It has foldable mounting ears and an EzDuct™ connector to simplify installation from the room side no need to access the attic. The back-draft damper is incorporated via new “TrueSeal™” damper technology, which helps reduce air leakage up to 50%, helping keep warm or cool air where it’s needed when the fan is off.
The fan is UL-listed for use over tubs or showers (when connected to a GFCI-protected circuit) and meets ENERGY STAR® and HVI certification standards, which underscores its efficient, safe, and clean design.
Why Choose Broan® Flex Series Bathroom Exhaust Fan?
Advanced Motor & Blower System- Permanently lubricated AC motor engineered for continuous operation
- Low-speed RPM design delivers ultra-quiet airflow without reducing performance.
- Made from rugged polymeric resin, built to withstand moisture and wear.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion-resistant galvanized steel housing stands up to moisture
- Improved duct damper technology ensures a tighter seal, minimizing unwanted warm or cold air backdrafts.
| Broan Flex Series 110 CFM 1.0 Sone Ventilation Fan Energy Star | |
|---|---|
| SKU | AE110 |
| Weight (in lbs) | 8.800000 |
| Brand/Manufacturer | Broan |
| Product Series | Flex |
| Maximum CFM | 110 CFM |
| Sone | 1 |
| Duct Size | 4" |
| Electrical | 120 Volts |
| Amperage Requirement | 0.3 |
| Length | 13.3" |
| Height | 13.3" |
| Width | 11" |
| Warranty | 3 Year |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
How energy efficient are these Broan Flex Series Fans?
The fan is highly energy efficient. It uses a modern brushless DC motor and is ENERGY STAR certified, meaning it uses far less power than older or less efficient fans, especially when set to lower airflow speeds. This helps reduce energy costs while keeping your bathroom fresh.
Will this fan help with moisture?
Yes. With its selectable airflow and powerful ventilation, it can clear humidity quickly, which helps reduce fog, mold, mildew, and lingering odors. Using the right CFM setting helps ensure moisture is properly removed.
Can it be mounted on a wall instead of a ceiling?
Yes, some models can be wall-mounted if installed at least 8 ft above floor level. That provides more flexibility depending on your setup.
Do I need a special controller or switch for this fan?
No special controller is required. The fan works with a regular on/off wall switch, but you can also add optional accessories like a timer or humidity sensor if you want extra convenience.
Is it hard to install this fan, especially if I’m replacing an old one?
Not at all. Many models are designed for easy retrofit, so you can install them right from inside the bathroom, no attic access needed. If you have any further questions, please don't hesitate to contact us. Thanks.
