Broan Lo-Profile Bathroom Exhaust Fan Finish Pack for 50/80/100 CFM

By

Broan

Out of stock
Model

LP510RF

ID

187816

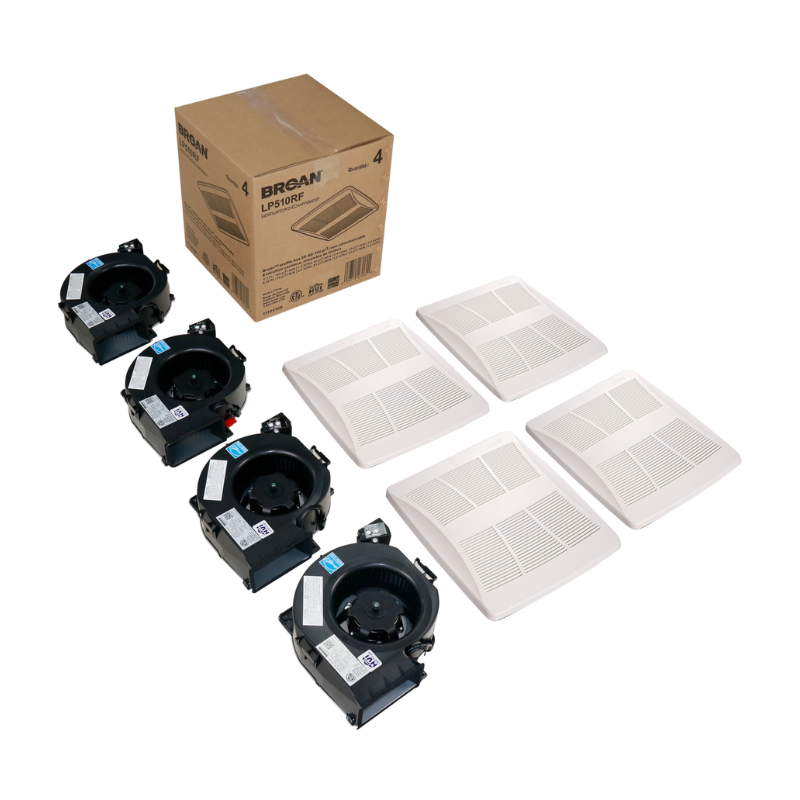

Broan project packs are ideal for contractors and builders who haven’t finalized their product choices, allowing construction to proceed without the worry of damaging or losing parts since the fan housing is sold separately from the grille and motor. Once the project is complete, a finish pack can be easily purchased, which includes four grilles and four motor/blower wheels for the final touches.

The Broan® LoProfile Fan is perfect for tight spaces where traditional ventilation won’t fit, making it suitable for multi-family applications. It installs easily in walls between 2x4 studs and offers excellent room coverage with selectable airflow options of 50, 80, and 100 CFM, plus a continuous run mode that provides low-speed airflow settings between 30 and 100 CFM for effective room ventilation.

Features

  • Selectable CFM and Continuous Run: Choose from speeds of 50, 80, or 100 CFM for effective ventilation, along with built-in continuous run technology to eliminate moisture and reduce the risk of mold or mildew in most full baths.
  • TRUE CFM™: Unlike competitors, our installed exhaust fan maintains CFM performance even with complex ducting.
  • Energy Efficiency: ENERGY STAR® certified and meets ASHRAE 62.2 standards.
  • Installation Flexibility: Features a 4" oval duct connection for versatile ceiling or wall mounting, with an optional 4" oval to 3" round duct adapter sold separately (S1110515).
  • Housing and Finish Packs: Sold separately.
  • Adjustable Settings: The adjustable low CFM setting prevents over-ventilation for maximum energy efficiency, while the time delay feature allows you to set how long the fan runs at high speed before switching to a continuous lower speed.
  • Safety and Performance: ETL listed for use over bathtubs and showers when connected to a GFCI-protected branch circuit (ceiling installation only). Powerful enough for rooms up to 90 sq. ft.
More Information
Broan Lo-Profile Bathroom Exhaust Fan Finish Pack for 50/80/100 CFM
FeatureSpec
SKULP510RF
Weight (in lbs)7.05
Brand/ManufacturerBroan
ReplacesLP110F
UPC026715270620
Maximum CFM50-80-100
Noise (sones)0.4/0.9/1.2
Duct Size4" or 3"
Energy StarYes
Amperage Requirement0.23
HeightHousing Height: 3-3/8”
WidthHousing Width: 10-1/4” | Grille Width: 13-3/4”
DepthHousing Depth: 10-1/4” | Grille Depth: 13"
Warranty1 Year
