Build Your Own Gree Tri Zone Mini-Split System

Build Your Own Gree Tri Zone Mini-Split System

Required Fields *

By

Gree

Out of stock

Model

GREETRI

ID

1472

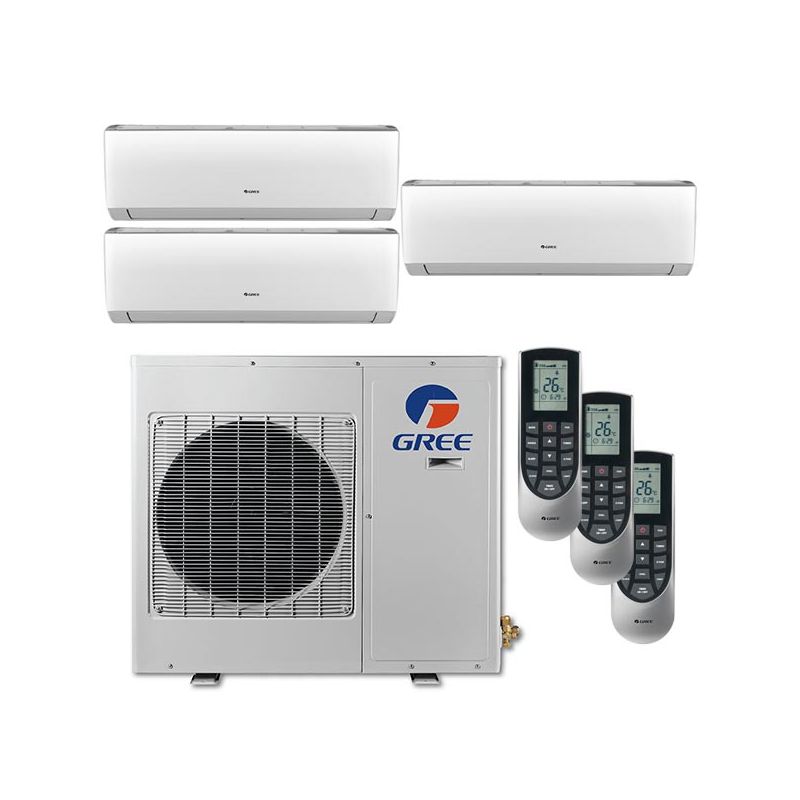

The Gree Tri Zone Mini Split System is one of the most advanced ductless mini split heat pump systems available today. They provide both cooling and heating and are a perfect solution for most homes. With a rating of up to 21 SEER, variable speed heat pump, and a G10 inverter, this system will keep operating costs under control while providing comfort year round. The system continuously monitors the comfort levels of each zone and will adjust the compressor speed and refrigerant flow to ensure that the cooling and heating needs of each room is met. The I-Feel function monitors the surrounding areas of the remote and adjust the temperatures accordingly.

The Gree Multi System is built to last and is made from heavy gauge rolled steal and covered with a durable powder coat paint finish. A Gold-Fin coating improves efficiency as well as providing protection from corrosive environments. The system features self-diagnostics and continuously monitors itself to prevent catastrophic failures. All of these features and more are designed to extend the life of the system.

9,000 BTU's Indoor Unit
The Gree Vireo Multi Wall Mount VIR09HP230V1AH is compact and energy efficient, but still powerful enough to keep you comfortable all year. This unit provides 9,000 BTU's and is capable of heating and cooling up to 300 square feet.

12,000 BTU's Indoor Unit
The Gree Vireo Multi Wall Mount VIR12HP230V1AH is compact and energy efficient, but still powerful enough to keep you comfortable all year. This unit provides 12,000 BTU's and is capable of heating and cooling up to 400 square feet.

18,000 BTU's Indoor Unit
The Gree Vireo Multi Wall Mount VIR18HP230V1AH is compact and energy efficient, but still powerful enough to keep you comfortable all year. This unit provides 18,000 BTU's and is capable of heating and cooling up to 600 square feet.

More Information
12,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler
FeatureSpec
SKU3VIR12HP230V1BH
Weight (in lbs)25.4
Brand/ManufacturerGree
Replaces3VIR12HP230V1AH
UPCna
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU12,000
Heating BTU12,000
Maximum CFM182-424 CFM
Decibel Level (dBA)Indoor Unit: 27-43 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height11.5625"
Width32.5"
Depth7.75"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
18,000 BTU Wall Mount Gree Mini-Split Vireo Gen 3 Single Zone Air Handler
FeatureSpec
SKU3VIR18HP230V1BH
Weight (in lbs)35.3
Brand/ManufacturerGree
Replaces3VIR18HP230V1AH
UPC605468269459
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU18,000
Heating BTU18,000
Maximum CFM283-618 CFM
Decibel Level (dBA)Indoor Unit: 29-49 dB(A)
RefrigerantR410A
Liquid Line1/4"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height12.25"
Width38.6875"
Depth8.75"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
18,000 BTU Wall Mount Gree Mini-Split Vireo Gen 3 Single Zone Air Handler
FeatureSpec
SKU3VIR18HP230V1BH
Weight (in lbs)35.3
Brand/ManufacturerGree
Replaces3VIR18HP230V1AH
UPC605468269459
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU18,000
Heating BTU18,000
Maximum CFM283-618 CFM
Decibel Level (dBA)Indoor Unit: 29-49 dB(A)
RefrigerantR410A
Liquid Line1/4"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height12.25"
Width38.6875"
Depth8.75"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
36,000 BTU 21 SEER2 Gree Mini-Split Multi Gen2 2-4 Zone Heat Pump Condenser
FeatureSpec
SKUMULTI36HP230V1EO
Refrigerant ChargePre-charged for: 131'
Weight (in lbs)215.6
AHRI Certificate Number210278980 & 210278979
Brand/ManufacturerGree
UPC841999159177
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMaximum System Piping: 246'
Cooling BTU34,000
Heating BTU36,000
Decibel Level (dBA)Outdoor Unit: 61 dB(A)
Energy StarYes
RefrigerantR410A
HSPF210
SEER2 (Efficiency)21
EER212
Compressor TypeRotary
Liquid Lineliquid_line=1/4" (5)
Suction Linesuction_line=3/8" (5)
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size35 amps
Min. Breaker Size23 amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating-5F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Height43.4"
Width40"
Depth14.8"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
42,000 BTU 21 SEER2 Gree Mini-Split Multi Gen2 2-5 Zone Heat Pump Condenser
FeatureSpec
SKUMULTI42HP230V1EO
Refrigerant ChargePre-charged for: 131'
Weight (in lbs)216
AHRI Certificate Number210278982 & 210278981
Brand/ManufacturerGree
UPC841999159184
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMaximum System Piping: 246'
Cooling BTU36,000
Heating BTU40,000
Decibel Level (dBA)Outdoor Unit: 61 dB(A)
Energy StarNo
RefrigerantR410A
HSPF210
SEER2 (Efficiency)21
EER212
Compressor TypeRotary
Liquid Lineliquid_line=1/4" (5)
Suction Linesuction_line=3/8" (5)
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size40 amps
Min. Breaker Size24 amps
Tonnage3.5 Ton
BTU/Tonnage42,000 BTU/3.5 Ton
Min/Max Outdoor Temp for Heating-5F - 86F
Min/Max Outdoor Temp for Cooling0F - 118F
Height43.4"
Width40"
Depth14.8"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Gree Vireo Multi Zone Wall Mount Unit - 9,000 BTU
FeatureSpec
SKUVIR09HP230V1B
Weight (in lbs)28
Brand/ManufacturerGree
UPC00841999163426
Cooling BTU9,000 BTU
Heating BTU11,000 BTU
Maximum CFM377
Decibel Level (dBA)32
Square Footage300 sq. ft.
Energy StarYes
RefrigerantR410A
SEER1 (Efficiency)23-24
Liquid Line1/4"
Suction Line3/8"
Electrical208 / 230 V. 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Height11.4"
Width33.4"
Depth8.2"
Warranty5 Year Parts Warranty & 7 Year Compressor Warranty
Safety InformationPROPOSITION 65 WARNING
Gree Vireo Multi Zone Wall Mount Unit - 9,000 BTU
FeatureSpec
SKUVIR09HP230V1B
Weight (in lbs)28
Brand/ManufacturerGree
UPC00841999163426
Cooling BTU9,000 BTU
Heating BTU11,000 BTU
Maximum CFM377
Decibel Level (dBA)32
Square Footage300 sq. ft.
Energy StarYes
RefrigerantR410A
SEER1 (Efficiency)23-24
Liquid Line1/4"
Suction Line3/8"
Electrical208 / 230 V. 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Height11.4"
Width33.4"
Depth8.2"
Warranty5 Year Parts Warranty & 7 Year Compressor Warranty
Safety InformationPROPOSITION 65 WARNING
12,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler
FeatureSpec
SKU3VIR12HP230V1BH
Weight (in lbs)25.4
Brand/ManufacturerGree
Replaces3VIR12HP230V1AH
UPCna
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU12,000
Heating BTU12,000
Maximum CFM182-424 CFM
Decibel Level (dBA)Indoor Unit: 27-43 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height11.5625"
Width32.5"
Depth7.75"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Gree Vireo Multi Zone Wall Mount Unit - 9,000 BTU
FeatureSpec
SKUVIR09HP230V1B
Weight (in lbs)28
Brand/ManufacturerGree
UPC00841999163426
Cooling BTU9,000 BTU
Heating BTU11,000 BTU
Maximum CFM377
Decibel Level (dBA)32
Square Footage300 sq. ft.
Energy StarYes
RefrigerantR410A
SEER1 (Efficiency)23-24
Liquid Line1/4"
Suction Line3/8"
Electrical208 / 230 V. 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Height11.4"
Width33.4"
Depth8.2"
Warranty5 Year Parts Warranty & 7 Year Compressor Warranty
Safety InformationPROPOSITION 65 WARNING
12,000 BTU Gree Vireo Gen 3 Wall Mount Mini Split Air Handler
FeatureSpec
SKU3VIR12HP230V1BH
Weight (in lbs)25.4
Brand/ManufacturerGree
Replaces3VIR12HP230V1AH
UPCna
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU12,000
Heating BTU12,000
Maximum CFM182-424 CFM
Decibel Level (dBA)Indoor Unit: 27-43 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height11.5625"
Width32.5"
Depth7.75"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
