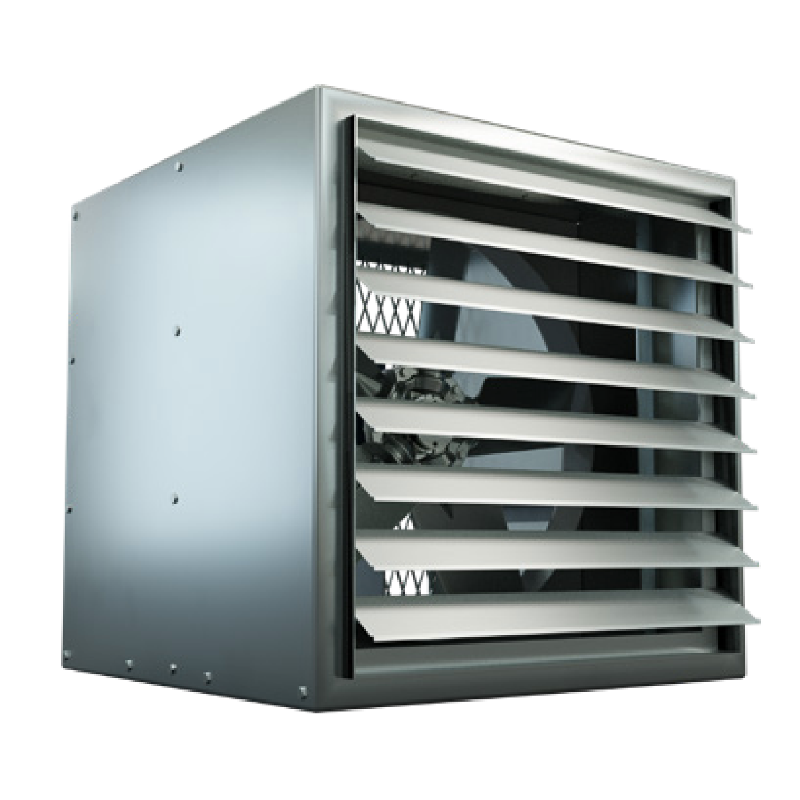

Today's Hours 8am - 11pm estCanarm 24 Inch XB Series Belt Drive Wall Fan 0.75 HP, Three Phase, 208-230/460v with Cabinet, Back Guard & Shutter
By
Canarm
In stock
Model
XB24CBS30075
ID
243546
$3,466.00
Ships in 2-3 Weeks
Product Features
- Airflow: 4400 CFM
- Electrical: 120V 1 Phase
- Propeller Diameter: 24 Inch
- Material: Heavy-Gauge Steel Construction
- Type: Belt Drive Wall Exhaust Fan
- Application: Factories, Warehouses, Gymnasiums & Underground Parking Garages
Belt Drive Wall Exhaust Fan with Cabinet, Back Guard & Shutter for Commercial & Medium-Duty Industrial Ventilation
The Canarm XB Series Belt Drive Wall Exhaust Fan with Cabinet, Back Guard & Shutter (CBS) is designed to provide efficient and economical exhaust ventilation for commercial and medium-duty industrial applications, including factories, warehouses, gymnasiums, and underground parking garages. It features a heavy-gauge steel fan panel, a deep-spun and flared venturi, and heavy-gauge welded steel motor and bearing supports for sturdy construction. The CBS configuration includes a cabinet, back guard, and shutter.
The XB Series features a belt drive system, heavy-duty cast-iron pillow block bearings, and totally enclosed fan-cooled (TEFC) motors as standard. Designed for low-pressure exhaust applications with little or no ductwork, these fans provide dependable air movement for suitable ventilation systems. Available in multiple sizes and configurations, airflow and electrical specifications vary by model.
Canarm XB Series Belt Drive Wall Exhaust Fan with CBS Features & Benefits
- Cabinet, Back Guard & Shutter: CBS configuration for wall-mounted exhaust ventilation.
- Heavy-Gauge Steel Fan Panel: Durable steel construction with a deep-spun and flared venturi designed for efficient airflow.
- Reinforced Supports: Heavy-gauge welded steel motor and bearing supports provide a sturdy fan assembly.
- Belt Drive System: Belt-driven design for commercial and medium-duty industrial exhaust applications.
- Heavy-Duty Bearings: Cast-iron pillow block bearings designed for dependable operation.
- TEFC Motor: Totally enclosed fan-cooled motors are standard.
- Efficient, Low-Speed Operation: Designed for economical operation at low speeds and low noise levels.
- Multiple Sizes: Available in various sizes, with airflow and electrical specifications varying by model.
What's Included
The Canarm XB Series Belt Drive Wall Exhaust Fan with Cabinet, Back Guard & Shutter (CBS) includes a motor, propeller, fan shaft, motor and driven sheaves, V-belts, pillow block bearings, cabinet, back guard, and shutter.
Safety Features
- Secure Mounting: Install the fan with adequate structural support according to the manufacturer's instructions.
- Electrical Safety: Have electrical work performed by a qualified electrician and verify the supply voltage matches the motor nameplate.
- Power-Off Servicing: Disconnect and secure power in the OFF position before wiring, inspection, or maintenance.
- Belt Maintenance: Regularly check belt tension, alignment, and the condition of belts and sheaves.
- Protective Guarding: Secure all required guards before operation and follow the manufacturer's instructions for additional guarding.
- Routine Inspection: Check fasteners, set screws, and the propeller, and keep the fan assembly free of debris.
Warranty Information
CANARM Ltd. provides a 1-year warranty from the date of purchase against defects in materials and workmanship. At its option, CANARM Ltd. will repair or replace any product or part found to be defective, subject to the applicable warranty terms and return procedures.
The warranty applies only to the original purchaser-user. It does not cover labor or transportation costs associated with removing or reinstalling the unit. Warranty coverage is void in cases of alteration, accident, abuse, neglect, or operation not in accordance with the instructions. Repaired or replaced items are covered only for the remainder of the original warranty period.
For complete warranty details, terms, conditions, and limitations, please refer to the Canarm Warranty and Return Policy.
Heavy-duty Material and Rugged Housing
The Canarm XB Series Belt Drive Wall Fans are expertly engineered for demanding ventilation needs where strength, performance, and reliability are paramount. Constructed from heavy-gauge galvanized steel, the fan housing and frame offer excellent resistance to corrosion, ensuring a long lifespan even in tough industrial and agricultural settings. The precision-balanced aluminum fan blades provide smooth, quiet airflow and reduced vibration, while the durable cast-iron pillow block bearings support long-term operation under continuous use. The belt drive design allows for optimal efficiency, reduced noise, and extended motor life, making the XB Series a dependable choice for large-scale air movement. Built for endurance, this fan performs exceptionally well in high-static-pressure environments and continuous-duty applications, maintaining stable airflow and performance over years of operation.
Suitable Applications for Canarm XB Belt Drive Wall Fan
- Factory production floors where heavy exhaust is required and durable, rugged equipment is essential.
- Warehouses and distribution centers with large spaces and long duct runs that need efficient ventilation solutions.
- Gymnasiums, sports arenas, and recreation facilities where rapid air exchange helps maintain comfort for occupants.
- Underground parking garages or vehicle service bays where reliable removal of fumes, heat, and pollutants is crucial.
- Greenhouses, horticultural buildings, and agricultural facilities that require robust wall fans to handle humidity and heat effectively.
- Industrial workshops or metal fabrication plants where dependable fan performance is needed under high static pressure and continuous use.
- Commercial or municipal facilities that demand powerful exhaust capability and long-lasting operation for extended working hours.
