Today's Hours 8am - 11pm estCanarm 8" AX Series Shutter Mounted Fan 2 Speed 1 PH W/ Cord and Plug
By
Canarm
In stock
Model
AX08
ID
173133
Was $459.00 Your Low Price Special Price $262.55
Ships in 1 Week
Product Features
- Airflow: 360 CFM
- Electrical: 115V 1 Phase
- Propeller Diameter: 8 Inch
- Material: Heavy Duty Aluminum
- Type: Shutter Exhaust
- Application: Factories, Warehouses, Industrial Plants, Garage, Automotive Shop

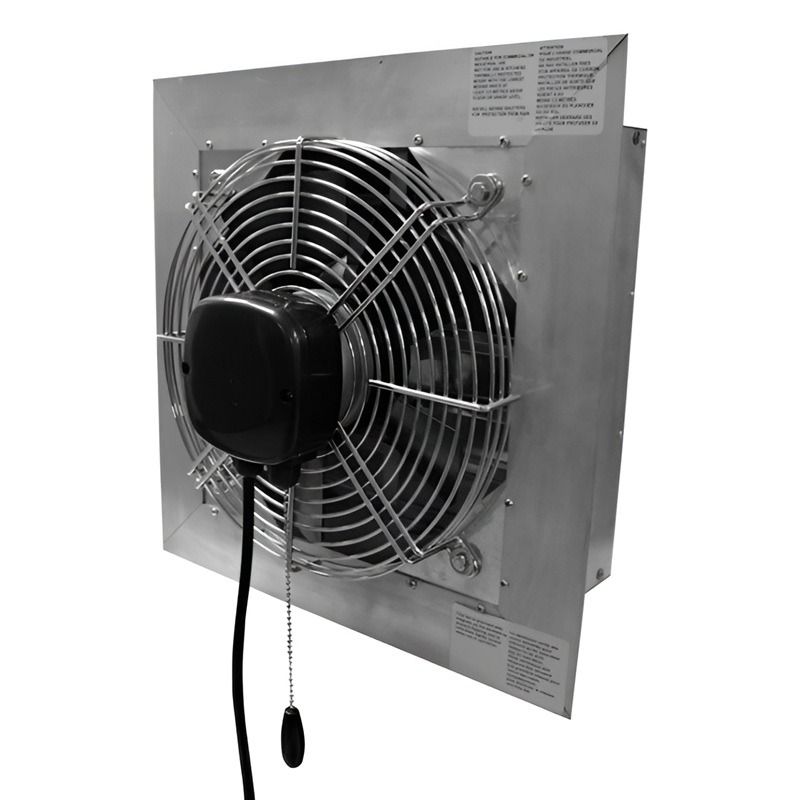

Heavy-Duty Shutter-Mounted Exhaust Fan for Industrial, Commercial & Agricultural Ventilation
The Canarm AX Series Shutter-Mounted Exhaust Fan is a direct-drive wall exhaust fan designed for general ventilation in industrial, commercial, and agricultural applications. Its sturdy all-aluminum-extrusion housing and built-in louvers provide a durable ventilation solution, with the louvers automatically opening when the fan starts and closing when the fan stops.
The AX Series is available in single-speed, two-speed, and variable-speed configurations, depending on the model. The direct-drive design provides dependable exhaust performance, while variable-speed models use high-efficiency motors that can also be operated as single-speed motors.
Each AX Series fan features a totally enclosed motor with thermal overload protection. The motor is mounted on a heavy-gauge welded steel rod motor mount with a bright zinc finish. Fans 30 inches and larger also feature powder-coated guards for added protection.
Installation is designed to be straightforward. A properly prepared wall opening should be provided for the selected fan, and the unit is secured using four mounting holes, one at each corner. AX Series fans are shipped fully assembled and are tested for proper operation before leaving the factory.
Canarm AX Series Exhaust Fan Features & Benefits
- Direct-Drive Design: Provides dependable exhaust ventilation without a belt-drive system.
- Automatic Louvers: Built-in louvers automatically open when the fan starts and close when the fan stops.
- Durable Construction: Sturdy housing constructed from all-aluminum extrusions.
- Motor Protection: Totally enclosed motors feature thermal overload protection.
- Motor Options: Available in single-speed, two-speed, and variable-speed configurations, depending on model.
- High-Efficiency Variable-Speed Motors: Variable-speed models use high-efficiency motors and can be operated as single-speed motors when required.
- Heavy-Duty Motor Mount: The motor is supported by a heavy-gauge welded steel rod mount with a bright zinc finish.
- Protective Guards: Models 30 inches and larger feature powder-coated guards.
- Factory Assembled: Fans are shipped fully assembled and tested for proper operation before shipping.
- Wall Mount Installation: Four mounting holes are provided at the corners of the fan for installation in a properly prepared wall opening.
What's Included
Each Canarm AX Series exhaust fan is shipped fully assembled and factory tested for proper operation. The unit includes the built-in automatic louvers and motor assembly as part of the complete fan.
Safety Features
- Secure Wall Mounting – Install the fan in a properly prepared wall opening using the four mounting holes provided.
- Qualified Electrical Installation – All electrical work should be performed by a qualified electrician.
- Power-Off Service – Disconnect power before wiring or servicing the fan.
- Thermal Overload Protection – Totally enclosed motors include thermal overload protection.
- Motor & Louver Maintenance – Keep the motor, blade, and louvers clean, and ensure the automatic louvers operate freely.
- Guarding – Guarding should be used when the fan is mounted lower than 7 feet (2 meters) above the floor or ground level.
Warranty Information
CANARM Ltd. provides a 1-year warranty against defects in materials and workmanship from the date of purchase. During the warranty period, CANARM Ltd. may, at its option, repair or replace any unit or part returned freight prepaid and found to be defective.
The warranty applies only to the original purchaser-user. It does not cover labor or transportation costs associated with removing or reinstalling the unit. Warranty coverage is void in cases of alteration, accident, abuse, neglect, or operation not in accordance with the instructions. Repaired or replaced components are covered only for the remainder of the original warranty period.
For complete warranty details, terms, conditions, and limitations, please refer to the Canarm Terms & Conditions of Sale.
Fan Controller Options
Controller requirements vary by Canarm AX Series model and motor configuration. Use the information below to identify the compatible controller for your selected fan.
- TS-15: Manual two-speed control for compatible AX Series fans. Sold separately.
- MC-3 / MC-5 / MC-5-230: Manual variable-speed controls for compatible AX Series fans. Sold separately.
- No Controller: Certain AX Series models do not require a separate fan controller, depending on the motor configuration.
Important: Controller compatibility varies by model. Please refer to the specifications for your selected AX Series fan to determine the appropriate controller.
Built with Strength and Quality
Each fan in the AX Series is engineered with durability and performance in mind. The housing is made from heavy-duty steel with a powder-coated finish, offering superior resistance to rust, corrosion, and harsh environmental conditions. The shutters are crafted from lightweight yet high-strength aluminum, designed to automatically open during operation for maximum airflow and to close securely when the fan is off, preventing drafts, dust, and debris from entering. The precision-balanced aluminum blades are aerodynamically designed to deliver smooth and efficient airflow while reducing noise and vibration, making them suitable for both industrial and commercial environments. The motor is an enclosed, air-over (TEAO) design, built with thermal protection to prevent overheating and extend service life. This ensures safe, reliable, and virtually maintenance-free operation even under continuous use.
Suitable Applications for Canarm Shutter-Mounted Fans
The Canarm AX Series Shutter-Mounted Fans are a perfect choice for:
- Agricultural facilities such as barns, poultry houses, and greenhouses where proper ventilation supports healthy environments for livestock and crops
- Warehouses and manufacturing plants that require reliable air circulation to remove heat, dust, and airborne contaminants
- Commercial kitchens, garages, and workshops where fans help reduce smoke, fumes, and excess heat
- Food processing and storage areas where consistent airflow helps maintain sanitation and prevent condensation
- Retail spaces and distribution centers that benefit from quiet, energy-efficient ventilation to improve comfort and protect stored goods
