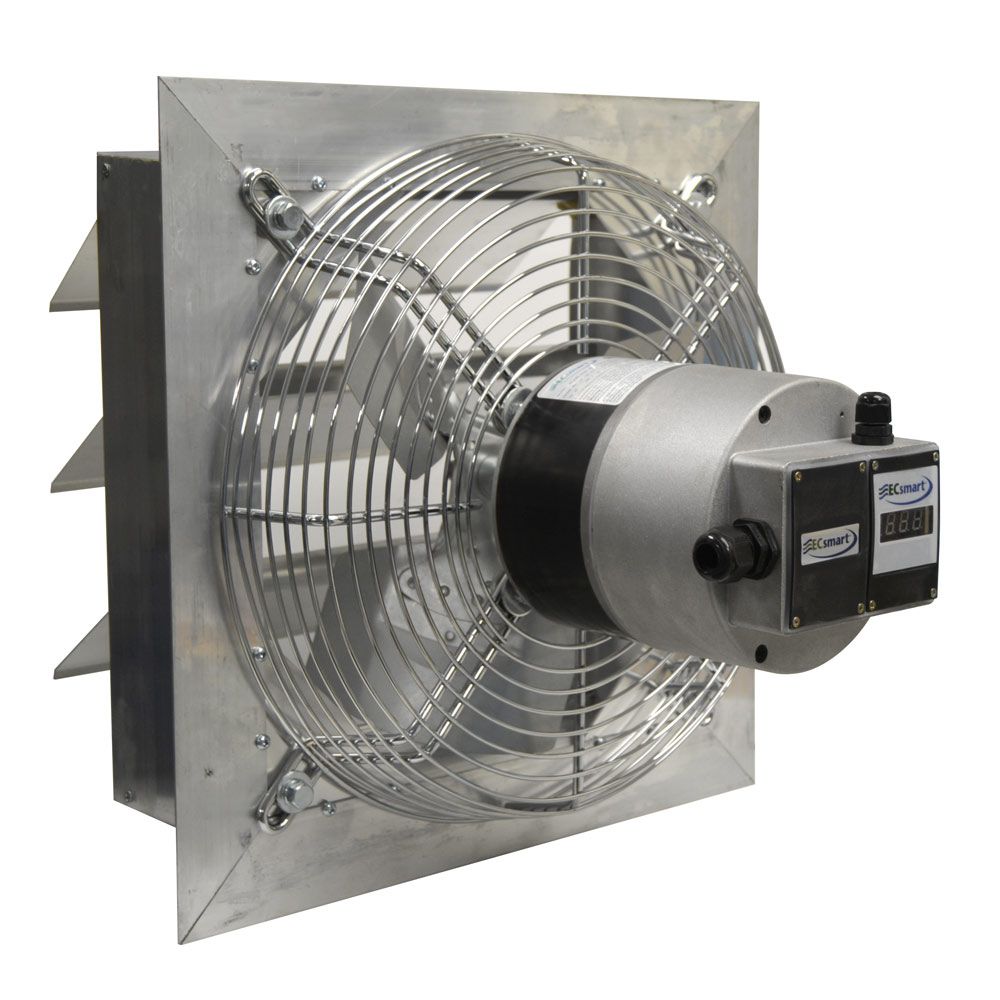

Canarm 36" AX-EC Shutter Mounted Exhaust Fan, 10000 CFM Direct Drive Variable Speed

SAVE $1,203.47

Canarm

In stock

Model

AX36-EC

136143

Be the first to review this product

Was $2,936.00 Your Low Price Special Price $1,732.53

Ships in 1 Week

Product Features

Airflow: 10,000 CFM
Electrical: 115/208-280V 1 Phase
Propeller Diameter: 36 Inch
Material: Heavy Duty Aluminum
Type: Shutter Exhaust
Application: Factories, Warehouses, Industrial Plants, Garage, Automotive Shop

6 Questions Answered

Description

Energy-Efficient EC Shutter-Mounted Exhaust Fan for Industrial, Commercial & Agricultural Ventilation

The Canarm AX-EC Series Shutter-Mounted Exhaust Fan is a direct-drive wall exhaust fan designed for industrial, commercial, and agricultural ventilation. Featuring a high-efficiency electronically commutated (EC) motor, it provides variable-speed operation to adjust airflow to different ventilation requirements. Its heavy-duty all-aluminum-extrusion housing and automatic gravity-closing shutters deliver dependable performance for a variety of applications.

Canarm AX-EC Series Exhaust Fan Features & Benefits

High-Efficiency EC Motor: Provides efficient operation with variable-speed control.
Direct-Drive Design: Delivers exhaust ventilation without a belt-drive system.

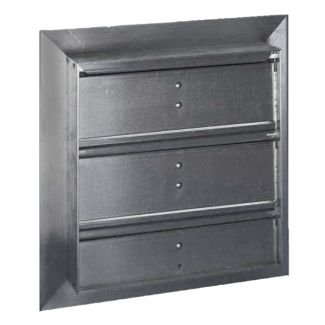

Automatic Shutters: Open when the fan starts and close by gravity when it stops.
Durable Construction: Heavy-duty housing made from all-aluminum extrusions.
Intake Guards: Models from 8 to 24 inches feature heavy-wire, chrome-plated OSHA guards.
Optional Accessories: Compatible options may include 0–10V controls, thermostats, front guards, and weather hoods, depending on the model.

What's Included

Each Canarm AX Series exhaust fan is shipped fully assembled and factory tested for proper operation. The unit includes the built-in automatic louvers and motor assembly as part of the complete fan.

Safety Features

Secure Wall Mounting – Install the fan in a properly prepared wall opening using the four mounting holes provided.
Qualified Electrical Installation – All electrical work should be performed by a qualified electrician.
Power-Off Service – Disconnect power before wiring or servicing the fan.
Thermal Overload Protection – Totally enclosed motors include thermal overload protection.
Motor & Louver Maintenance – Keep the motor, blade, and louvers clean, and ensure the automatic louvers operate freely.
Guarding – Guarding should be used when the fan is mounted lower than 7 feet (2 meters) above the floor or ground level.

Warranty Information

CANARM Ltd. provides a 1-year warranty against defects in materials and workmanship from the date of purchase. During the warranty period, CANARM Ltd. may, at its option, repair or replace any unit or part returned freight prepaid and found to be defective.

The warranty applies only to the original purchaser-user. It does not cover labor or transportation costs associated with removing or reinstalling the unit. Warranty coverage is void in cases of alteration, accident, abuse, neglect, or operation not in accordance with the instructions. Repaired or replaced components are covered only for the remainder of the original warranty period.

For complete warranty details, terms, conditions, and limitations, please refer to the Canarm Terms & Conditions of Sale.

Fan Controller Options

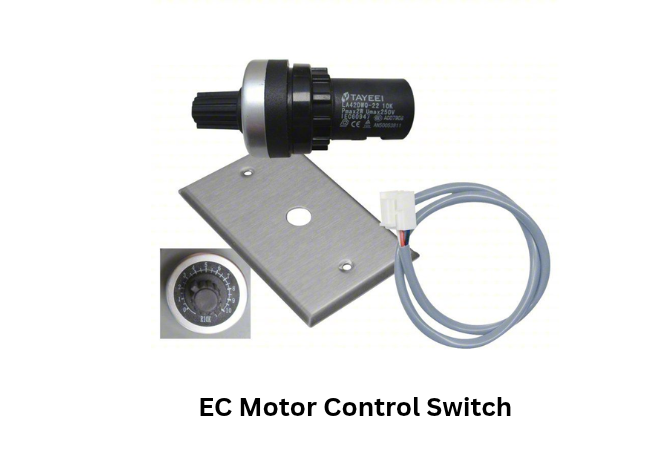

The CNEC-0-10V is a compatible controller for select Canarm AX Series variable-speed fans. Sold separately.

Important: The CNEC-0-10V is compatible only with select AX Series models. Refer to your fan's specifications to confirm compatibility.

Built with Strength and Quality

Each fan in the AX Series is engineered with durability and performance in mind. The housing is made from heavy-duty steel with a powder-coated finish, offering superior resistance to rust, corrosion, and harsh environmental conditions. The shutters are crafted from lightweight yet high-strength aluminum, designed to automatically open during operation for maximum airflow and to close securely when the fan is off, preventing drafts, dust, and debris from entering. The precision-balanced aluminum blades are aerodynamically designed to deliver smooth and efficient airflow while reducing noise and vibration, making them suitable for both industrial and commercial environments. The motor is an enclosed, air-over (TEAO) design, built with thermal protection to prevent overheating and extend service life. This ensures safe, reliable, and virtually maintenance-free operation even under continuous use.

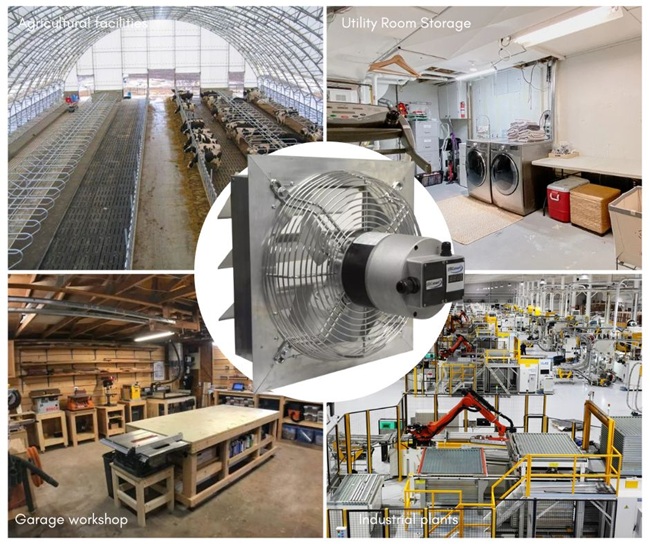

Suitable Applications for Canarm Shutter-Mounted Fans

The Canarm AX Series Shutter-Mounted Fans are a perfect choice for:

Agricultural facilities such as barns, poultry houses, and greenhouses where proper ventilation supports healthy environments for livestock and crops
Warehouses and manufacturing plants that require reliable air circulation to remove heat, dust, and airborne contaminants
Commercial kitchens, garages, and workshops where fans help reduce smoke, fumes, and excess heat
Food processing and storage areas where consistent airflow helps maintain sanitation and prevent condensation
Retail spaces and distribution centers that benefit from quiet, energy-efficient ventilation to improve comfort and protect stored goods

Get the Right Ventilation System — Without the Guesswork

Free Personalized Quote Now

Our team is here to make your buying experience simple and stress-free. Every project is different. Request a free quote and our HVAC experts will recommend the right size, efficiency, and system —helping you avoid costly mistakes. We’ll only send what matters.

You may also qualify for our VIPro Program, which provides exclusive contractor-level pricing, personalized project support, and priority service. Even if you are not VIPro qualified, we are still ready to help! You can sign up to receive exclusive email offers and promotions as well as unlock benefits.

Simply tell us about your space and requirements, and our specialists will guide you every step of the way. No commitment. Just better answers.

Product Specs

More Information
Canarm 36" AX-EC Shutter Mounted Exhaust Fan, 10000 CFM Direct Drive Variable Speed
Feature	Spec
SKU	AX36-EC
Weight (in lbs)	88
Brand/Manufacturer	Canarm
UPC	062345206356
Drive Type	Direct
Maximum CFM	10000
Propeller Diameter	36 inches
Motor RPM	1000
Horsepower	1/4 HP
Speed	Variable
Electrical	115/208-280 Volts \| 9.5 / 5.2-4.2 AMPS (FLA)
Phase	Single Phase

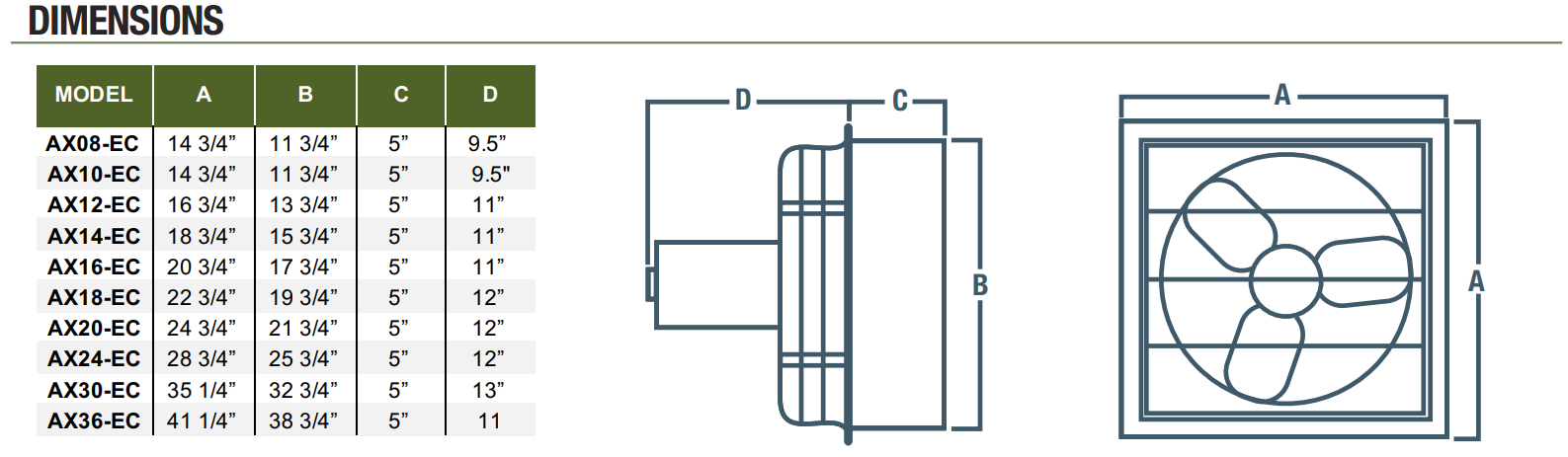

Height	41 1/4”
Width	38 3/4”
Depth	11"
Warranty	1 Year Parts, 3 Year Compressor
Resources	User Manual Canarm AX-EC Series Literature Dimensions Warranty Sheet You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews

Accessories

FAQ's

Customer Questions

Do I need to install or assemble the fan when it arrives?

The fans are usually shipped fully assembled, which makes installation simple and straightforward. If you have any other questions about setup, please feel free to reach out to us and we’ll be happy to help.

How energy efficient are these AX-EC fans?

The AX-EC fans are very efficient. The EC motors use less energy than standard motors, and with variable speed control, the fan only runs as much as you need, helping you save on power.

Are the AX-EC fans quiet when operating?

The noise level depends on the fan’s size and speed. At lower speeds, AX-EC fans are very quiet, and the smooth-running EC motor helps reduce sound. With proper installation and built-in shutters, noise is kept to a minimum.

What controller options are available with this fan series?

The AX-EC fans can be paired with 0-10 V controllers for variable speed, thermostats, and other compatible control devices. If you need assistance choosing the right option, our team is always happy to help.

How often should the shutters be inspected or cleaned?

We suggest cleaning the shutters once or twice a year, or more often if the fan is in a dusty area. This keeps them opening and closing smoothly.

What kind of static pressure can this fan handle? I'm wanting to connect it to ductwork to remove heat from a specific location.

The AX36-EC is designed for low-static-pressure applications. At 0.10" static pressure, it delivers approximately 8,500 CFM, and at 0.25" approximately 6,200 CFM. For ducted heat removal, please give us a call so we can help you find the perfect product for your application use.
