Today's Hours 8am - 11pm estCanarm Tri-Lite Economic 12 Ft HLVS Ceiling Fan Geared Drive 100,000 CFM Covers Area 120 Ft 115V 1 Phase
Ships in 4 Weeks
By
Canarm
In stock
Model
3L12-115-1
ID
208439
Was $10,736.00 Your Low Price Special Price $6,258.74
Product Features
- Propeller Diameter: 12 Ft
- Material: Aluminum/Stainless Steel
- Drive Type: Gear Drive
- Electrical 115V 1 Phase
- CFM: 100,000 CFM
- Included: Extension Bar, Mounting Assembly, VFD Enclosure Kit
- Application: Warehouse/Manufacturing, Distribution/Logistics, Aviation, Automotive
Energy-Efficient HVLS Fan Delivering Powerful Airflow with Quiet Geared Drive Performance
The Canarm Tri-Lite Economic 24' HVLS Ceiling Fan is built to provide large-scale, energy-efficient air circulation in commercial and industrial spaces. Designed with high-volume, low-speed (HVLS) technology, this fan creates a powerful airflow that enhances comfort and reduces energy consumption across up to 240 feet in diameter of coverage area.
In the summer, the Tri-Lite fan delivers an evaporative cooling effect of 5–7°F, lowering the perceived temperature through continuous, gentle air movement. During colder months, it helps destratify air layers by redistributing trapped warm air from the ceiling down to occupant level, reducing temperature differences by up to 27°F and helping HVAC systems operate more efficiently.
Canarm Tri-Lite Economic HVLS Fan Features & Benefits
- Proven Airfoil Technology: Equipped with 6005-T5 anodized aluminum STOL airfoils for maximum lift and efficient airflow at low RPM.
- Wide Coverage Area: Circulates air effectively over up to 120 feet in diameter depending on model size.
- Durable & Lightweight: Features powder-coated steel and anodized aluminum chassis for long-lasting performance with minimal ceiling load.
- Quiet Operation: Operates around 45 dBA—quiet enough for noise-sensitive workspaces.
- Geared Motor System: Utilizes a 1.0 HP TEFC IP55-rated motor with lifetime-sealed oil, ensuring smooth and low-maintenance operation.
- CSA and UL Compliant: Certified to CSA Standard 22.2 #133 and UL507 for quality and safety assurance.
What's Included
Each Canarm Tri-Lite Economic HVLS Fan package includes an extension bar, mounting assembly, and VFD enclosure kit for a complete fan installation setup.
Safety Features
- Redundant Safety Features – Designed with redundant safety features to provide protection in the unlikely event of a catastrophic failure.
- Safety Cable Included – A safety cable is supplied with every fan and must be properly installed as a redundant safety feature securing the fan to the mounting structure. The safety cable must be installed for the warranty to remain in effect.
- Proper Fan Clearance – The area within 15% of the fan's diameter is considered close clearance and is extremely dangerous. Canarm strongly recommends not mounting the fan closer than 15% of its diameter to any object or its path.
- Safe Sprinkler Placement – When installed in areas with fire sprinklers, the fan must not interfere with their proper operation and should be positioned in the center of each sprinkler quadrant and at least 3 feet below the sprinkler.
- Shielded Motor Cable – Each fan includes 15 feet of shielded motor cable, cable glands, and a variable frequency drive with a built-in filter to help minimize electromagnetic interference and stray voltage. The shielded motor cable and controller cable must be run in separate conduits at least 6 inches apart.
- Qualified Electrical Installation – Installation and electrical wiring must be performed by qualified personnel and comply with the National Electrical Code, ANSI/NFPA 70-1999, and all applicable local codes.
- Power-Off Installation – Power must be switched off at the service panel and the service disconnect must be locked out to prevent accidental energization before installation, servicing, or cleaning.
Warranty Information
CANARM Ltd. provides a 1-year warranty covering defects in materials and workmanship from the date of purchase. During the warranty period, CANARM Ltd. may, at its option, repair or replace any unit or part returned freight prepaid and found to be defective.
The warranty applies only to the original purchaser-user. It does not cover labor or transportation costs associated with removing or reinstalling the unit. Warranty coverage is void in cases of alteration, accident, abuse, neglect, or operation contrary to the provided instructions. Repaired or replaced components are covered only for the remainder of the original warranty period.
For complete warranty details, terms, conditions, and limitations, please refer to the HVAC Terms, Conditions & Policies.

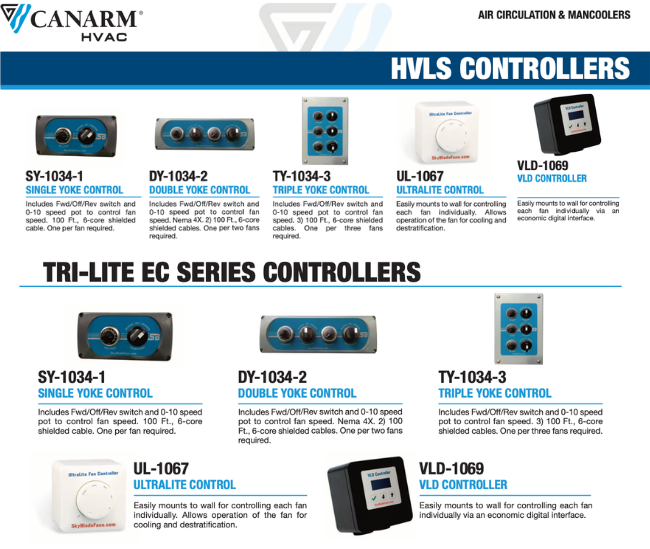

Available with a range of control options to meet different needs. *Sold separately
Fan Controller Features:
- Simple On/Off Operation: Easily start or stop the fan using the integrated wall controller with a dedicated Fwd/Off/Rev switch for straightforward operation.
- Variable Speed Control: Adjust fan performance based on desired speed setting, allowing precise control of airflow to match different comfort and environmental needs.
- Forward & Reverse Function: Switch between forward mode for cooling and reverse mode for destratification, improving air mixing year-round.
Built for Long-Lasting Performance and Durability

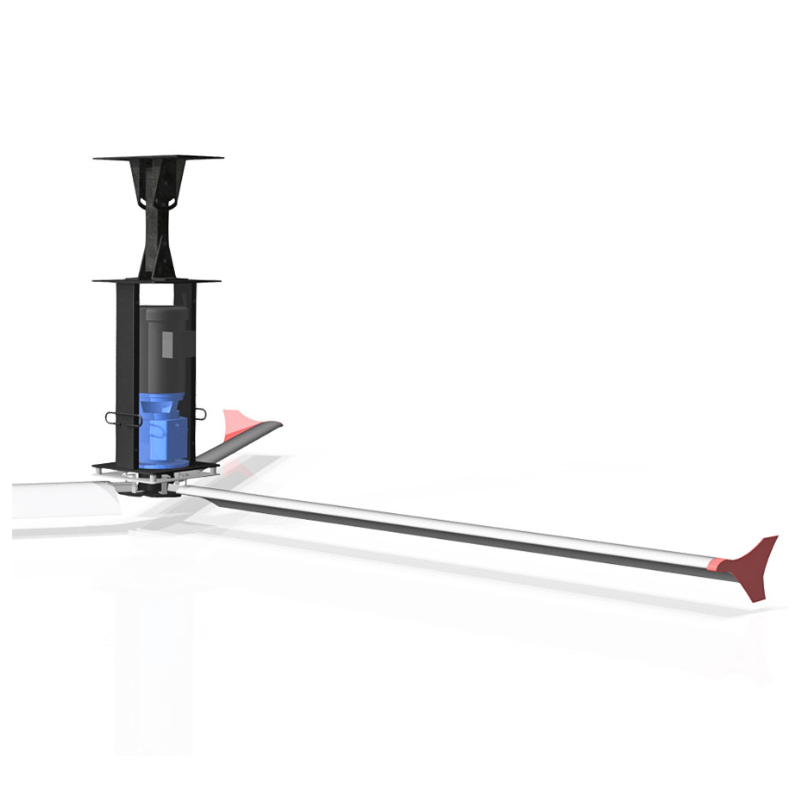

The Tri-Lite Economic HVLS Fan is built to deliver high-volume air movement under long-term, continuous-duty conditions. Its chassis is constructed from powder-coated steel and anodized aluminum alloy, providing superior corrosion resistance and strength in demanding industrial, agricultural, or warehouse environments. The blades are extruded from 6005-T5 anodized aluminum alloy and shaped with Canarm’s STOL (Short-Take-Off-and-Landing) airfoil design, offering maximum airflow at lower rotational speeds. The unit integrates a totally enclosed, fan-cooled (TEFC) IP55 or better motor paired with a precision gearbox sealed in synthetic oil for sustained performance and minimal maintenance. With robust mounting hardware and safety-harness assemblies included, the Tri-Lite is engineered for continuous, reliable operation and built to withstand harsh conditions while maintaining efficient performance over years of service.

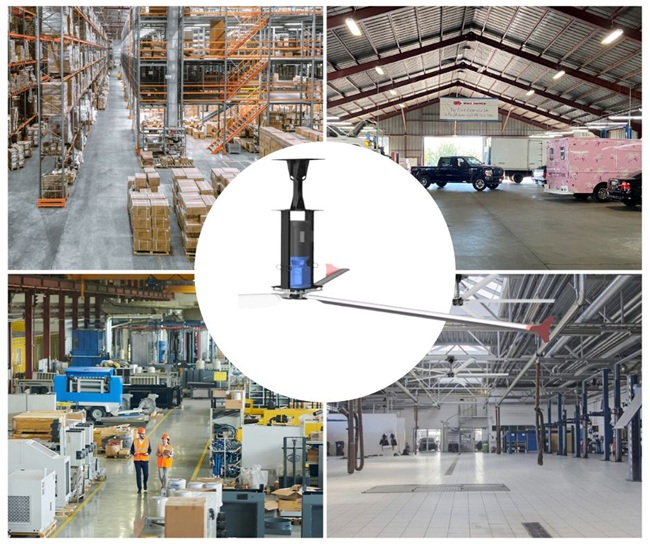

Suitable Applications for Canarm Tri-Lite Economic HVLS Fans
- Warehouses & Distribution Centers: Ideal for maintaining consistent airflow, better comfort, and improved energy efficiency.
- Manufacturing Plants & Workshops: Perfect for high ceilings and heavy equipment areas to balance heat and airflow.
- Agricultural Barns & Greenhouses: Provides gentle air movement to support animal health and plant growth.
- Gyms, Sports Arenas & Fitness Centers: Ensures steady air circulation and comfort for large groups of people.
- Retail Showrooms & Commercial Spaces: Delivers powerful airflow and enhances aesthetics in open-plan environments.
- Event Centers & Exhibition Halls: Offers flexible airflow control for tall, multipurpose venues.
- Loading Docks & Storage Areas: Helps recover interior air quickly after overhead doors are opened.
