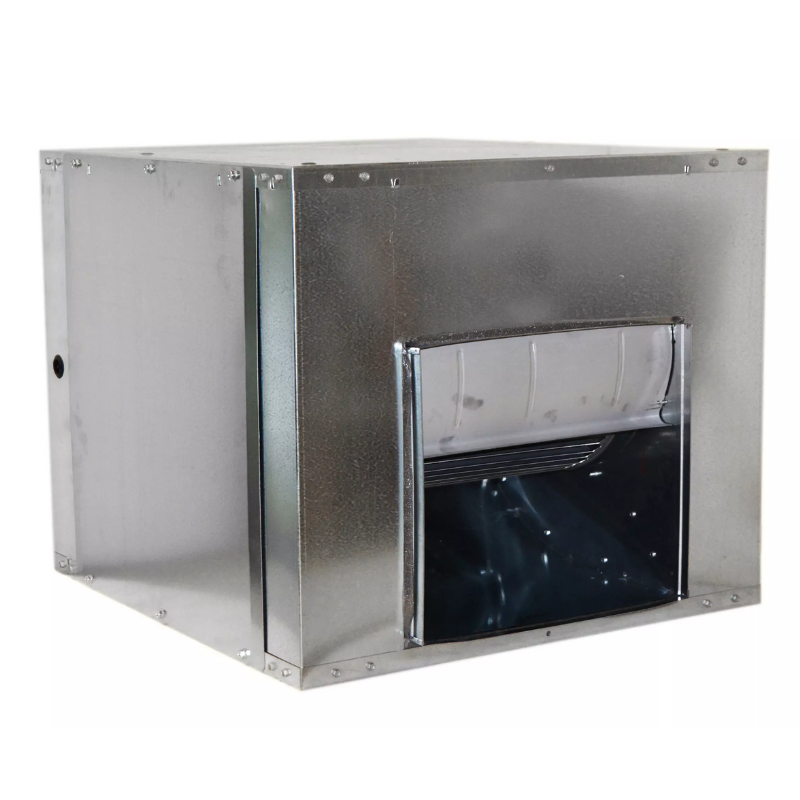

Canarm IDB10-2 Forward Curved Inline Duct Twin Unit Blowers (Insulated)

The IDB series fan is designed for air movement in ceiling duct systems and also inline make-up air systems where curb mounted options are not available. MOTORS AND DRIVE NOT INCLUDED. PLEASE CALL FOR COMPLETE PACKAGE.

Fan Features:

• Wheel Diameters: 7” through 15”
• CFM: Approximately 500 to 5700 CFM in a single blower.
• Constructed from galvanized steel for durability.
• Forward Curved blowers operate at low RPM for low noise levels.
• Heavy duty ball bearings suitable for -65º F to +250º F.
• Keywayed shafts both ends for clockwise or counter clockwise rotation.
• Saddle type motor mounting platform provides extended belt tension adjustment range on all models.
• Delhi blowers will not “surge”, “hunt” or “stall”.
• The variable pitch motor pulley permits field adjustment (typically + or - 15%) to match air delivery needs.
• Quiet forward curved blowers operate at ½ the rpm of other inline solutions.
• Note: For insulated or heavy duty applications, please reference our 200 and 9200 series.
