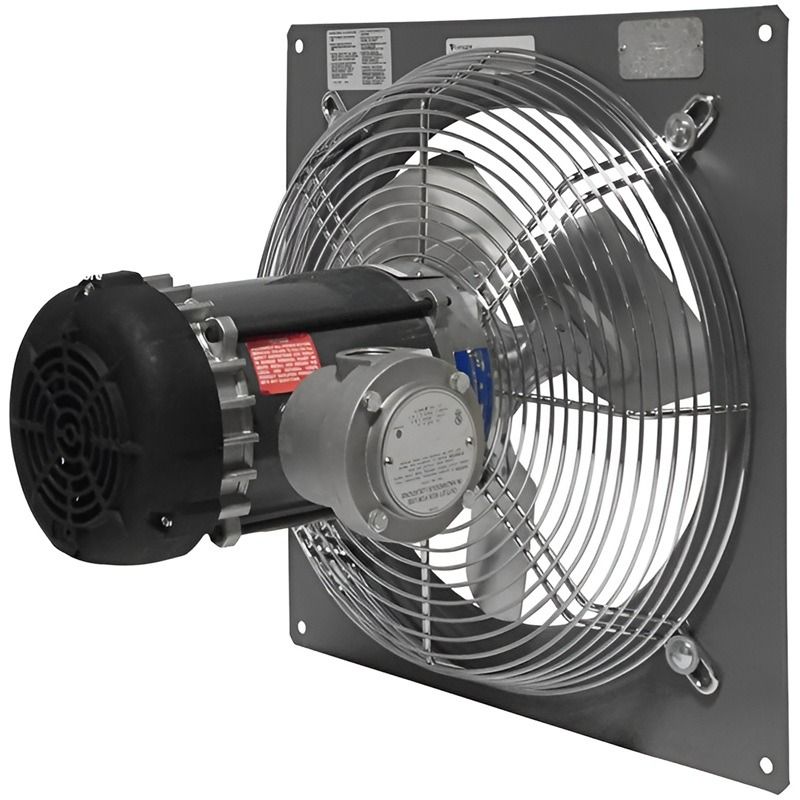

Canarm 12" Panel Mounted Explosion Proof Fan, Direct Drive, 1650 CFM Single Speed, Three Phase

OVERVIEW

The Canarm P12-4M 12-Inch Explosion Proof Exhaust Fan is designed for dependable performance in industrial, commercial, and agricultural applications where explosive or hazardous materials may be present. With a rugged direct drive, horizontal discharge configuration, this fan provides high airflow performance at 1650 CFM, powered by a durable single-speed, three-phase motor.

Engineered for use in environments that demand explosion-proof safety measures, such as chemical plants, grain storage, paint booths, and industrial manufacturing facilities, this fan meets the highest standards for both ventilation performance and operational safety.

Key Features:

• Explosion Proof Motor: Rated for hazardous locations where flammable gases, vapors, or dust may be present.
• Direct Drive Motor: Single-speed design ensures efficient airflow and reduced maintenance.
• Horizontal Discharge: Ideal for wall-mounted ventilation where directional air exhaust is required.
• High Airflow Capacity: Delivers up to 1650 CFM for robust ventilation in demanding conditions.
• Durable Powder-Coated Finish: Tough coating resists corrosion and extends product life, even in harsh environments.
• OSHA-Compliant Safety Guards: Chrome-plated, heavy wire guards on the intake side enhance operator safety (standard on 8"–24" models).
• Motor Protection: Features a totally enclosed air-over motor with built-in overload protection for added safety and durability.

Warranty

CANARM Ltd. warrants every new fan to be free from defects in material and workmanship for one (1) year from the date of purchase. During this time, CANARM Ltd. will, at its option, repair or replace any unit or part that is returned freight prepaid and found to be defective. This warranty does not cover labor or transportation costs related to the removal or reinstallation of the unit at the user’s premises. Components that are repaired or replaced are covered only for the remainder of the original warranty period.

The warranty applies exclusively to the original purchaser-user. It will be considered null and void in cases of alteration, accident, abuse, neglect, or operation not per the provided instructions.

---

Built with Strength and Quality

The Canarm P Series Explosion-Proof Fan is built to last with heavy-duty steel housing, precision-balanced aluminum blades, and a corrosion-resistant powder-coated finish. The steel frame adds strength and durability, while the aluminum blades provide efficient airflow with reduced weight and wear. The motor is fully enclosed and sealed, designed to withstand harsh conditions while delivering smooth, maintenance-free operation. This robust construction makes it ideal for continuous-duty use in demanding industrial environments. Unlike standard ventilation fans, the explosion-proof design of the Canarm P Series makes it uniquely suited for environments where safety is critical. Each fan is equipped with a UL/CSA-approved, explosion-proof motor, specifically designed to prevent sparks or heat from igniting surrounding materials. Combined with Canarm’s proven engineering for high airflow performance, this fan ensures your facility remains safe, compliant, and well-ventilated.

---

Suitable Applications for Canarm Panel Mounted Fan

Explosion-proof exhaust fans like the Canarm P Series are essential for industries where safety and compliance are critical. Ideal applications include:

• Chemical plants and refineries handling volatile vapors
• Paint spray booths and finishing areas with flammable fumes
• Grain elevators, feed mills, and agricultural buildings with combustible dust
• Petrochemical facilities, oil and gas operations, and fuel storage areas
• Wastewater treatment plants and pumping stations exposed to hazardous gases
• Manufacturing environments requiring Class I, Division I & II or Class II, Division I & II compliance
