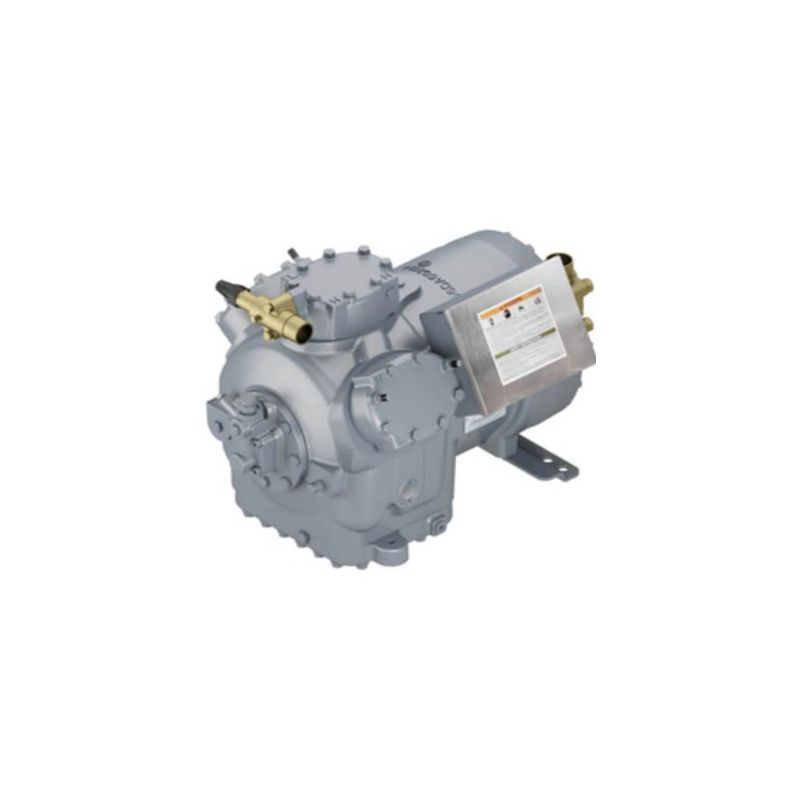

Carrier 06DS3286BC3250 Semi-Hermetic Reciprocating Compressor

Carrier OEM Carlyle 06D remanufactured semi-hermetic reciprocating service compressor – 06DS3286BC3250

Carrier 06DS3286BC3250 is a Carlyle 06D remanufactured semi-hermetic reciprocating service compressor. This listing now includes the documented selection data and cross-references available for this exact part number. Because commercial compressors can share a similar appearance while differing electrically and mechanically, compatibility must be confirmed from the complete compressor and equipment nameplates.

Product Details

• Manufacturer: Carrier / Carlyle
• Manufacturer Part Number: 06DS3286BC3250
• Part Type: Carlyle 06D remanufactured semi-hermetic reciprocating service compressor
• Application: Air-conditioning duty
• Motor: 10 HP, three phase
• Electrical: 208/230V, 60 Hz
• Displacement: 28 CFM at 1750 RPM
• Unloading: One-stage suction cut-off
• Suction service valve: Motor end, 4-bolt, 30-degree orientation
• Protection: Internal thermostat; no external overloads
• Oil: Compressor is supplied without oil

Documented Replacement and Cross-Reference Numbers

• 6D3286TLBC1200

Compatibility note: Confirm the existing compressor model and all application data before ordering; this is not a universal 10 HP replacement.

Before Ordering

Match the complete equipment model, serial number, and existing component number. For compressors, also verify application, refrigerant, voltage, phase, frequency, displacement/capacity, unloading arrangement, service-valve configuration, oil requirements, and protection scheme. Compressor installation and commissioning must be performed by a qualified refrigeration or HVAC professional.
